MACH2003 Thwaites MACH2003 Specifications & Technical Data (2021—2026)

Weight: 1.355t – Net load: 1.5t – Dump capacity: 0.8m³ – Dumper type: R – Transport length: 3.257m – Transport width: 1.3m

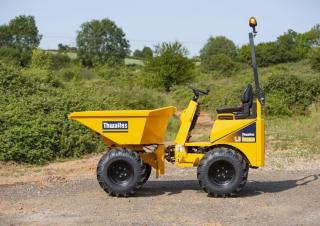

Wheel Dumpers Thwaites MACH2003
Wheel Dumpers Thwaites MACH2003
Wheel Dumpers Thwaites MACH2003
Wheel Dumpers Thwaites MACH2003

Technical specs - MACH2003 Thwaites

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.355 t
Net load
1.5 t
Dump capacity
0.8 m³
Dumper type
R
Transport length
3.257 m
Transport width
1.3 m
Transport height
1.773 m
Travel speed
12 km/h
Loading height
1.286 m
Turning radius outside
6 m
Model series
1.5 Tonne
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
15.9 kW
Max. torque
66.4 Nm
No. of cylinders
3

More technical details, like: standard tyres, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Heated dump body
No
All-wheel drive
No
Track
No
Aircondition
No

Download datasheets (PDF)

Thwaites MACH2003 FAQ

When was the Thwaites MACH2003 manufactured?

The Thwaites MACH2003 was first produced in 2021.

How much does the Thwaites MACH2003 weigh?

The Thwaites MACH2003 weighs 1.355 tons.

What are the transport dimensions of the Thwaites MACH2003 wheel dumper?

The Thwaites MACH2003 has a transport length of 3.257 meters, a transport width of 1.3 meters, and a transport height of 1.773 meters.

What is the travel speed of the Thwaites MACH2003 wheel dumper?

The Thwaites MACH2003 has a travel speed of 12 km/h.

What is the outside turning radius of the Thwaites MACH2003 wheel dumper?

The Thwaites MACH2003 has an outside turning radius of 6 meters.

What is the material handling capacity of the Thwaites MACH2003 wheel dumper?

The Thwaites MACH2003 wheel dumper has a net load capacity of 1.5 tons and a dump capacity of 0.8 cubic meters.
