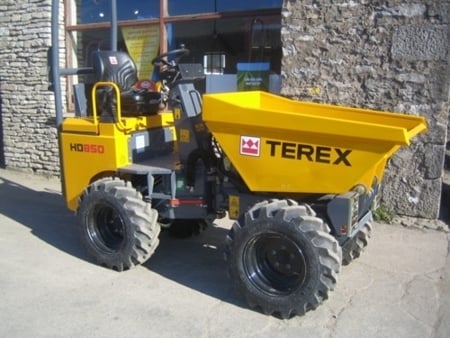

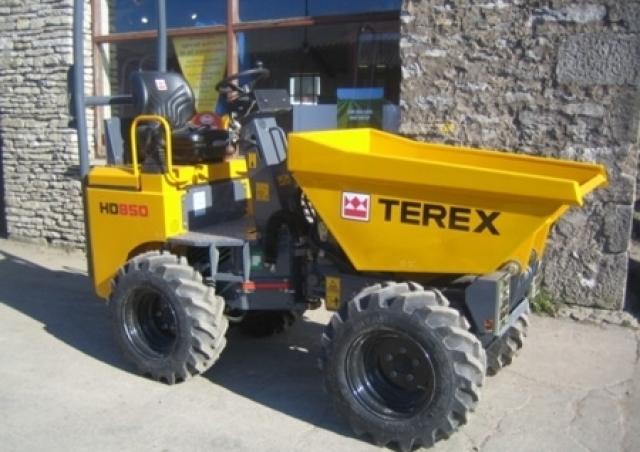

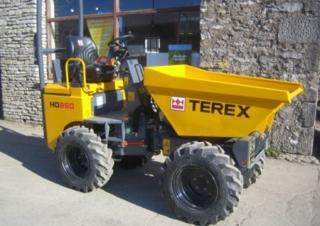

HD 850 Terex HD 850 Specifications & Technical Data (2004—2011)

Model rating
10,00 / 10

Weight: 1.41t – Standard tyres: 10.0/75x15.3 – Net load: 0.85t – Dump capacity: 0.484m³ – Dumper type: V – Travel speed: 11km/h

Wheel Dumpers Terex HD 850

Technical specs - HD 850 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.41 t
Standard tyres
10.0/75x15.3
Net load
0.85 t
Dump capacity
0.484 m³
Dumper type
V
Travel speed
11 km/h
Loading height
1.175 m
Model series
HD
Engine manuf.
Kubota
Engine type
D905
Engine power
16.5 kW
Displacement
0.898 l
Revolutions at max torque
3000 rpm

More technical details, like: transport length, transport width, transport height, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops...

More technical details, like: transport length, transport width, transport height, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, engine manufacturer, engine model, rated speed, engine output, fuel, drive, tyre size - front, tyre size - rear, height over rops, width, overall length, wheelbase, ground clearance, skip lip height - untipped, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Heated dump body
No
All-wheel drive
Yes
Track
No
Aircondition
No

Download datasheets (PDF)

Terex HD 850 FAQ

When was the Terex HD 850 manufactured?

The Terex HD 850 was manufactured from 2004 to 2011.

How much does the Terex HD 850 wheel dumper weigh?

The Terex HD 850 wheel dumper weighs 1.41 tons.

What is the travel speed of the Terex HD 850 wheel dumper?

The Terex HD 850 has a travel speed of 11 km/h.

What are the undercarriage tyre specifications of the Terex HD 850 wheel dumper?

The Terex HD 850 wheel dumper is equipped with standard tyres sized 10.0/75x15.3.

What is the material handling capacity of the Terex HD 850 wheel dumper?

The Terex HD 850 wheel dumper has a net load capacity of 0.85 tons and a dump capacity of 0.48 cubic meters.

How much is a Terex HD 850 Wheel dumper (2004u20132011) worth?

The residual value of the Terex HD 850 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Model rating
10,00 / 10
Quotation mark

Terex HD 850 user from

Good all round machine

Quotation mark

Terex HD 850 user from Norway

Very useful in tight spaces. Good accessibility in even terrain, but one must be aware of high center of gravity.

Terex HD 850 overview

Serviceability

Features

Operating payloads from 850 to 1200 kg.1.5m discharge height - can tip into standard skip.Narrow design enables machines to pass through a standard 1m doorway (HD850 and HD1000 only when fitted with optional narrow tyres).“Rental Tough” designs and fabrications to keep you working in tough conditions.Exceptional service access and ease of maintenance built into every machine.High ground clearance to cope with difficult ground conditions.Low centre of gravity for superb stability.Hydrostatic transmissions for additional hill-climbing power.


Machine inspection

Ask for inspection of your Terex HD 850 from experts

Machine inspection

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by: Mevas — The Heavy Equipment Inspectors

Buy & Rent

Compare Terex HD 850 with similar Wheel Dumpers

Terex HD 850

Terex HD 850

Weight:
1.41 t
Standard tyres:
10.0/75x15.3
Net load:
0.85 t
Dump capacity:
0.484 m³
Mecalac TA1EH

Mecalac TA1EH

Weight:
1.31 t
Standard tyres:
255/15x15.2 8play2
Net load:
1 t
Dump capacity:
0.54 m³
JCB 1T-1 HT

JCB 1T-1 HT

Weight:
1.4 t
Standard tyres:
255/75x15.3 8ply
Net load:
1 t
Dump capacity:
1 m³
Ausa D 150 AHA

Ausa D 150 AHA

Weight:
1.51 t
Standard tyres:
10/75-15.3
Dump capacity:
0.681 m³
Neuson 1001

Neuson 1001

Weight:
1.23 t
Standard tyres:
10.00/75x15.3
Net load:
1.5 t
Dump capacity:
0.83 m³
