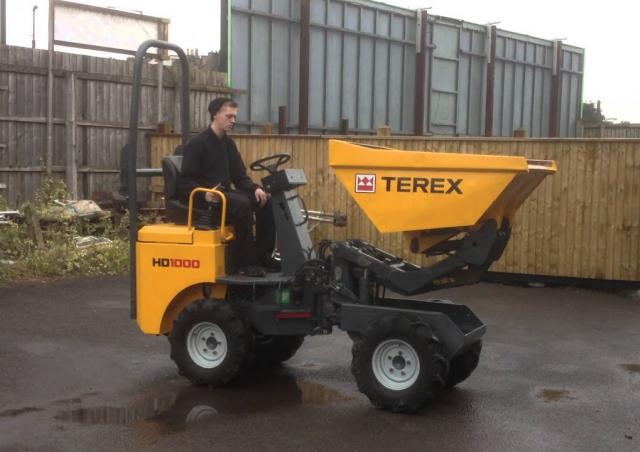

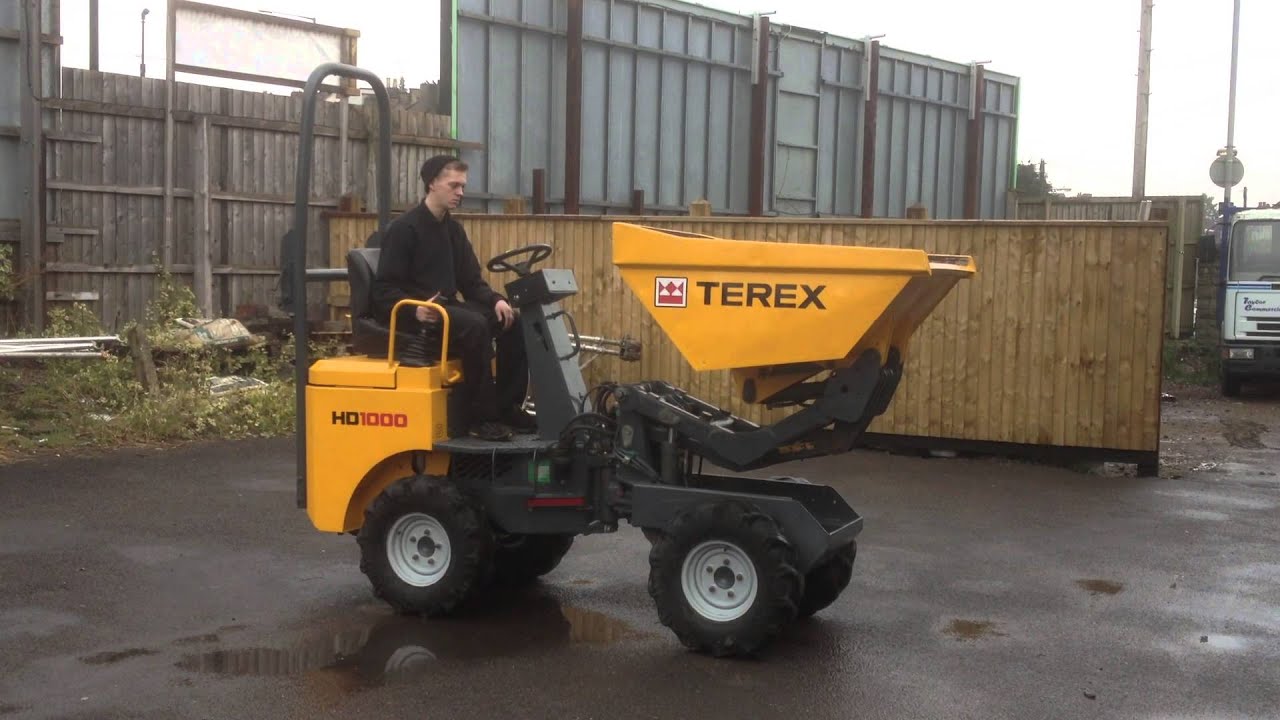

Terex HD 1000 Specifications & Technical Data (2004-2011)

Technical specs - HD 1000 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.44 t

Standard tyres: 10.0/75x15.3

Net load: 1 t

Dump capacity: 0.577 m³

Dumper type: V

Travel speed: 11 km/h

Loading height: 1.175 m

Model series: HD

Engine manuf.: Kubota

Engine type: D905

Engine power: 16.5 kW

Displacement: 0.898 l

Revolutions at max torque: 3000 rpm

More technical details, like: transport length, transport width, transport height, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops...

More technical details, like: transport length, transport width, transport height, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, engine manufacturer, engine model, rated speed, engine output, fuel, drive, tyre size - front, tyre size - rear, height over rops, width, overall length, wheelbase, ground clearance, skip lip height - untipped, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

Terex HD 1000 FAQ

When was the Terex HD 1000 manufactured?

The Terex HD 1000 was manufactured from 2004 to 2011.

How much does the Terex HD 1000 weigh?

The Terex HD 1000 weighs 1.44 tons.

What is the travel speed of the Terex HD 1000 wheel dumper?

The Terex HD 1000 has a travel speed of 11 km/h.

What are the undercarriage specifications of the Terex HD 1000 wheel dumper?

The Terex HD 1000 wheel dumper is equipped with standard tyres sized 10.0/75x15.3.

What is the material handling capacity of the Terex HD 1000 wheel dumper?

The Terex HD 1000 wheel dumper has a net load capacity of 1 ton and a dump capacity of 0.58 cubic meters.

How much is a Terex HD 1000 Wheel dumper (2004u20132011) worth?

The residual value of the Terex HD 1000 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Terex HD 1000 overview

Serviceability

Features

Operating payloads from 850 to 1200 kg.1.5m discharge height - can tip into standard skip.Narrow design enables machines to pass through a standard 1m doorway (HD850 and HD1000 only when fitted with optional narrow tyres).“Rental Tough” designs and fabrications to keep you working in tough conditions.Exceptional service access and ease of maintenance built into every machine.High ground clearance to cope with difficult ground conditions.Low centre of gravity for superb stability.Hydrostatic transmissions for additional hill-climbing power.

Machine inspection

Ask for inspection of your Terex HD 1000 from experts

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by:

Buy & Rent

Compare Terex HD 1000 with similar Wheel Dumpers

Terex HD 1000

Weight:: 1.44 t

Standard tyres:: 10.0/75x15.3

Net load:: 1 t

Dump capacity:: 0.577 m³

Mecalac TA1EH

Weight:: 1.31 t

Standard tyres:: 255/15x15.2 8play2

Net load:: 1 t

Dump capacity:: 0.54 m³

JCB 1T-1 HT

Weight:: 1.4 t

Standard tyres:: 255/75x15.3 8ply

Net load:: 1 t

Dump capacity:: 1 m³

Ausa D 150 AHA

Weight:: 1.51 t

Standard tyres:: 10/75-15.3

Dump capacity:: 0.681 m³

Neuson 1001

Weight:: 1.23 t

Standard tyres:: 10.00/75x15.3

Net load:: 1.5 t

Dump capacity:: 0.83 m³
