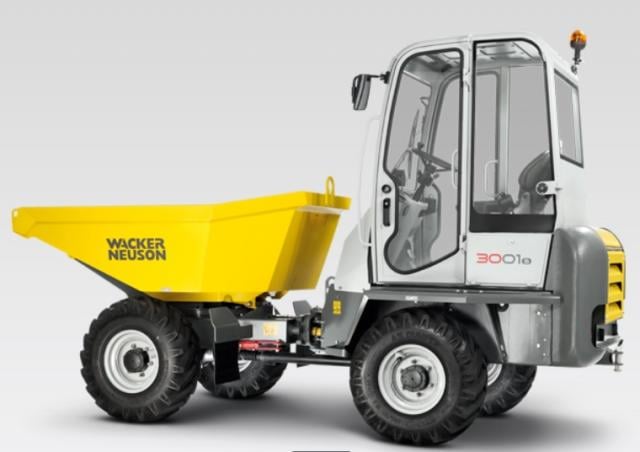

Neuson 3001 Specifications & Technical Data (2006-2007)

Technical specs - 3001 Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.56 t

Standard tyres: 11.50/80x15.3

Net load: 3 t

Dump capacity: 1.25 m³

Dumper type: D

Transport length: 4 m

Transport width: 1.78 m

Transport height: 2.67 m

Engine manuf.: Yanmar

Engine type: 3TNV88

Engine power: 25 kW

More technical details, like: travel speed, loading height, turning radius outside, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type...

More technical details, like: travel speed, loading height, turning radius outside, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, fops, engine manufacturer, engine model, emission rating, rated speed, engine output, fuel, drive, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, width - front tyres, width - rear tyres, width - skip, skip lip height - untipped, height over skip - untipped, turning radius - outside, chassis articulation, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Buy full specs

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: No
Track: No
Aircondition: No

Download datasheets (PDF)

Neuson 3001 FAQ

When was the Neuson 3001 manufactured?

The Neuson 3001 was manufactured from 2006 to 2007.

How much does the Neuson 3001 wheel dumper weigh?

The Neuson 3001 wheel dumper weighs 2.56 tons.

What are the transport dimensions of the Neuson 3001 wheel dumper?

The Neuson 3001 has a transport length of 4 meters, a transport width of 1.78 meters, and a transport height of 2.67 meters.

What are the standard tyre specifications of the Neuson 3001?

The Neuson 3001 has standard tyres sized 11.50/80x15.3.

What is the material handling capacity of the Neuson 3001 wheel dumper?

The Neuson 3001 wheel dumper has a net load capacity of 3 tons and a dump capacity of 1.25 cubic meters.

How much is a Neuson 3001 Wheel dumper (2006u20132007) worth?

The residual value of the Neuson 3001 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
