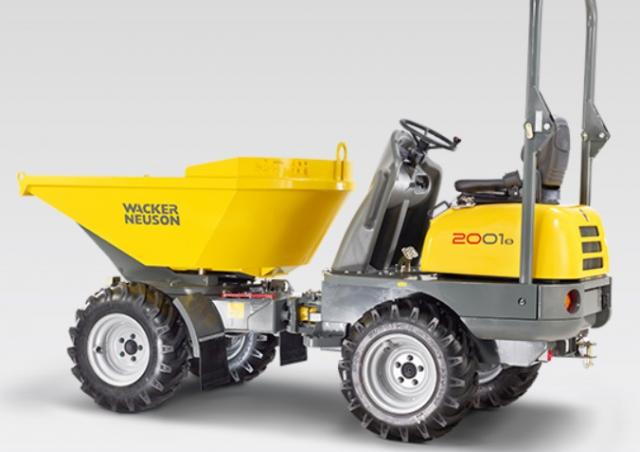

2001 Neuson 2001 Specifications & Technical Data (2006—2008)

Weight: 1.81t – Standard tyres: 10.00/75x15.3 – Net load: 2t – Dump capacity: 0.93m³ – Dumper type: R – Transport length: 3m

2001

Years of manufacture: 2006—2008

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2001 Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.81 t

Standard tyres: 10.00/75x15.3

Net load: 2 t

Dump capacity: 0.93 m³

Dumper type: R

Transport length: 3 m

Transport width: 1.48 m

Transport height: 2.65 m

Travel speed: 21 km/h

Turning radius outside: 3.5 m

Engine manuf.: Yanmar

Engine type: 3TNV82A

Engine power: 22.5 kW

Displacement: 1.33 l

Revolutions at max torque: 3000 rpm

Emission level: III A

More technical details, like: loading height, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, model type, driveline, rops, engine manufacturer, engine model, rated speed, engine output, fuel, drive, std tyre size front, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, width - front tyres, width - rear tyres, width - skip, height over skip - untipped, turning radius - outside, chassis articulation, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

Neuson 2001 FAQ

When was the Neuson 2001 manufactured?

The Neuson 2001 was manufactured from 2006 to 2008.

How much does the Neuson 2001 wheel dumper weigh?

The Neuson 2001 wheel dumper weighs 1.81 tons.

What are the transport dimensions of the Neuson 2001 wheel dumper?

The Neuson 2001 wheel dumper has a transport length of 3 meters, a transport width of 1.48 meters, and a transport height of 2.65 meters.

What is the travel speed of the Neuson 2001 wheel dumper?

The Neuson 2001 wheel dumper has a travel speed of 21 km/h.

What are the undercarriage specifications of the Neuson 2001 wheel dumper?

The Neuson 2001 wheel dumper is equipped with standard tyres sized 10.00/75x15.3.

What is the turning radius of the Neuson 2001 wheel dumper?

The Neuson 2001 wheel dumper has an outside turning radius of 3.5 meters.

What is the material handling capacity of the Neuson 2001 wheel dumper?

The Neuson 2001 wheel dumper has a net load capacity of 2 tons and a dump capacity of 0.93 cubic meters.

How much is a Neuson 2001 Wheel dumper (2006u20132008) worth?

The residual value of the Neuson 2001 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
