ND250 Neumeier ND250 Specifications & Technical Data (2019—2026)

Weight: 0.12t – Standard tyres: 400 x 10/400 x 8 – Net load: 0.25t – Dump capacity: 0.17m³ – Transport length: 1.5m – Transport width: 0.7m

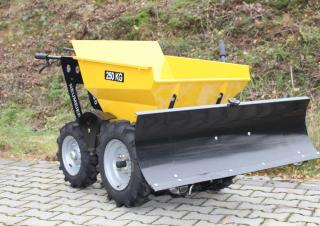

Wheel Dumpers Neumeier ND250

Technical specs - ND250 Neumeier

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
0.12 t
Standard tyres
400 x 10/400 x 8
Net load
0.25 t
Dump capacity
0.17 m³
Transport length
1.5 m
Transport width
0.7 m
Transport height
0.85 m
Travel speed
6.1 km/h
Model series
ND

More technical details, like: dumper type, loading height, turning radius outside, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Heated dump body
No
All-wheel drive
No
Track
No
Aircondition
No

Neumeier ND250 FAQ

When was the Neumeier ND250 manufactured?

The Neumeier ND250 was first produced in 2019.

How much does the Neumeier ND250 wheel dumper weigh?

The Neumeier ND250 wheel dumper weighs 0.12 tons.

What are the transport dimensions of the Neumeier ND250 wheel dumper?

The Neumeier ND250 has a transport length of 1.5 meters, a transport width of 0.7 meters, and a transport height of 0.85 meters.

What is the travel speed of the Neumeier ND250 wheel dumper?

The Neumeier ND250 wheel dumper has a travel speed of 6.1 km/h.

What are the undercarriage specifications of the Neumeier ND250?

The Neumeier ND250 is equipped with standard tyres sized 400 x 10 and 400 x 8.

What is the material handling capacity of the Neumeier ND250 wheel dumper?

The Neumeier ND250 wheel dumper has a net load capacity of 0.25 tons and a dump capacity of 0.17 cubic meters.
