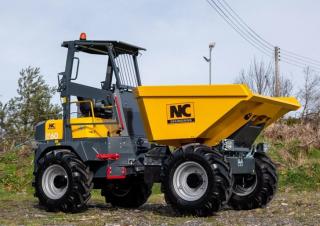

NC-Engineering NC SW5560
- Weight:
- 4.2 t
- Standard tyres:
- 405/70-20
- Net load:
- 6 t
- Dump capacity:
- 3.15 m³
NC SW5560 NC-Engineering NC SW5560 Specifications & Technical Data (2025—2026)
.jpg)
.jpg)
Technical specs - NC SW5560 NC-Engineering
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.2 t
- Standard tyres
- 405/70-20
- Net load
- 6 t
- Dump capacity
- 3.15 m³
- Transport length
- 4.621 m
- Transport width
- 2.242 m
- Transport height
- 2.529 m
- Travel speed
- 26 km/h
- Loading height
- 1.863 m
- Model series
- SW
- Engine manuf.
- Doosan
- Engine type
- D24 DM02VB
- Engine power
- 55.4 kW
- Displacement
- 2.4 l
- Revolutions at max torque
- 1600 rpm
- Max. torque
- 320 Nm
- Emission level
- Stage V
More technical details, like: dumper type, turning radius outside, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Heated dump body
-
No
- All-wheel drive
-
Yes
- Track
-
No
- Aircondition
-
No
Download datasheets (PDF)
