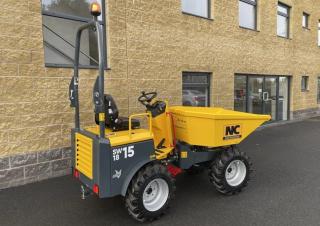

NC-Engineering NC SW1815
- Weight:
- 1.38 t
- Standard tyres:
- 10.0 / 75 -15.3
- Net load:
- 1.5 t
- Dump capacity:
- 0.813 m³
NC SW1815 NC-Engineering NC SW1815 Specifications & Technical Data (2022—2026)
.jpg)
.jpg)
Technical specs - NC SW1815 NC-Engineering
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.38 t
- Standard tyres
- 10.0 / 75 -15.3
- Net load
- 1.5 t
- Dump capacity
- 0.813 m³
- Transport length
- 3.166 m
- Transport width
- 1.3 m
- Transport height
- 2.613 m
- Travel speed
- 14 km/h
- Loading height
- 1.292 m
- Turning radius outside
- 6.405 m
- Model series
- SW
- Engine manuf.
- Kubota
- Engine type
- D1105
- Engine power
- 18.2 kW
- Displacement
- 1.1 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 71.5 Nm
- Emission level
- Stage V/Tier 4
More technical details, like: dumper type, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Heated dump body
-
No
- All-wheel drive
-
Yes
- Track
-
No
- Aircondition
-
No
