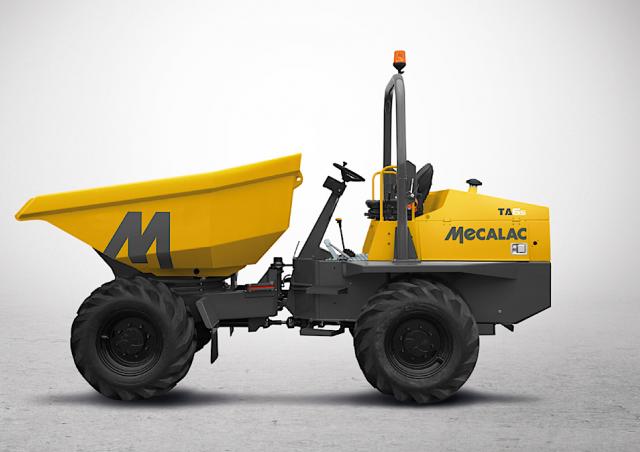

TA9S Mecalac TA9S Specifications & Technical Data (2017—2020)

Weight: 5.26t – Standard tyres: 500-60-22.5 16PR – Net load: 9t – Dump capacity: 4.2m³ – Dumper type: S – Transport length: 4.666m

TA9S

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TA9S Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.26 t

Standard tyres: 500-60-22.5 16PR

Net load: 9 t

Dump capacity: 4.2 m³

Dumper type: S

Transport length: 4.666 m

Transport width: 2.38 m

Transport height: 3.668 m

Travel speed: 24.8 km/h

Loading height: 1.215 m

Turning radius outside: 5.816 m

Model series: TA

Engine manuf.: JCB

Engine type: EcoMax

Engine power: 55 kW

Displacement: 4.4 l

Max. torque: 400 Nm

No. of cylinders: 4

Emission level: III B

More technical details, like: dimension lxwxh, revolutions at max torque, cylinder bore x stroke, model type, driveline, rops, fops, telematics available, platform, fleet management, health monitoring, security, engine manufacturer, engine model, engine output, torque, fuel, drive, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, width - front tyres, width - rear tyres, height over skip - untipped, turning radius - outside, chassis articulation, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: No
Track: No
Aircondition: No

Download datasheets (PDF)

Mecalac TA9S FAQ

When was the Mecalac TA9S manufactured?

The Mecalac TA9S was manufactured from 2017 to 2020.

How much does the Mecalac TA9S weigh?

The Mecalac TA9S weighs 5.26 tons.

What are the transport dimensions of the Mecalac TA9S wheel dumper?

The Mecalac TA9S has a transport length of 4.67 meters, a transport width of 2.38 meters, and a transport height of 3.67 meters.

What is the travel speed of the Mecalac TA9S wheel dumper?

The Mecalac TA9S has a travel speed of 24.8 km/h.

What are the undercarriage specifications of the Mecalac TA9S wheel dumper?

The Mecalac TA9S wheel dumper is equipped with standard tyres sized 500-60-22.5 16PR.

What is the turning radius of the Mecalac TA9S wheel dumper?

The Mecalac TA9S wheel dumper has an outside turning radius of 5.816 meters.

What is the material handling capacity of the Mecalac TA9S wheel dumper?

The Mecalac TA9S wheel dumper has a net load capacity of 9 tons and a dump capacity of 4.2 cubic meters.
