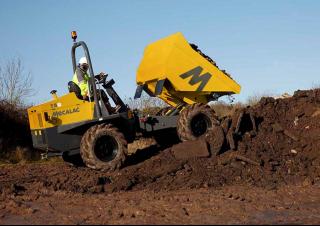

TA6 Mecalac TA6 Specifications & Technical Data (2017—2020)

Weight: 4.31t – Standard tyres: 405/70-20 14PR – Net load: 6t – Dump capacity: 3.78m³ – Dumper type: V – Transport length: 4m

TA6

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TA6 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.31 t

Standard tyres: 405/70-20 14PR

Net load: 6 t

Dump capacity: 3.78 m³

Dumper type: V

Transport length: 4 m

Transport width: 2.3 m

Transport height: 3.2 m

Travel speed: 26.2 km/h

Loading height: 0.504 m

Turning radius outside: 5.863 m

Model series: TA

Engine manuf.: JCB

Engine type: EcoMax

Engine power: 55 kW

Revolutions at max torque: 1250 rpm

Emission level: Tier 4 f

More technical details, like: dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, model type, driveline, rops, fops, telematics available, platform, fleet management, health monitoring, security, engine manufacturer, engine model, engine output, torque, fuel, drive, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, width - front tyres, width - rear tyres, height over skip - untipped, turning radius - outside, chassis articulation, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: No
Track: No
Aircondition: No

Download datasheets (PDF)

Mecalac TA6 FAQ

When was the Mecalac TA6 manufactured?

The Mecalac TA6 was manufactured from 2017 to 2020.

How much does the Mecalac TA6 weigh?

The Mecalac TA6 weighs 4.31 tons.

What are the transport dimensions of the Mecalac TA6 wheel dumper?

The Mecalac TA6 wheel dumper has a transport length of 4 meters, a transport width of 2.3 meters, and a transport height of 3.2 meters.

What is the travel speed of the Mecalac TA6 wheel dumper?

The Mecalac TA6 wheel dumper has a travel speed of 26.2 km/h.

What are the standard tyre specifications of the Mecalac TA6 wheel dumper?

The Mecalac TA6 wheel dumper has standard tyres sized 405/70-20 14PR.

What is the outside turning radius of the Mecalac TA6 wheel dumper?

The Mecalac TA6 wheel dumper has an outside turning radius of 5.863 meters.

What is the material handling capacity of the Mecalac TA6 wheel dumper?

The Mecalac TA6 wheel dumper has a net load capacity of 6 tons, a dump capacity of 3.78 cubic meters, and a loading height of 0.5 meters, featuring a front-end tipper dumper type.

How much is a Mecalac TA6 Wheel dumper (2017u20132020) worth?

The residual value of the Mecalac TA6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
