TA2SH Mecalac TA2SH Specifications & Technical Data (2017—2020)

Weight: 2.08t – Standard tyres: 10.0/75x15.3 10ply – Net load: 2t – Dump capacity: 1.2m³ – Dumper type: R – Transport length: 4m

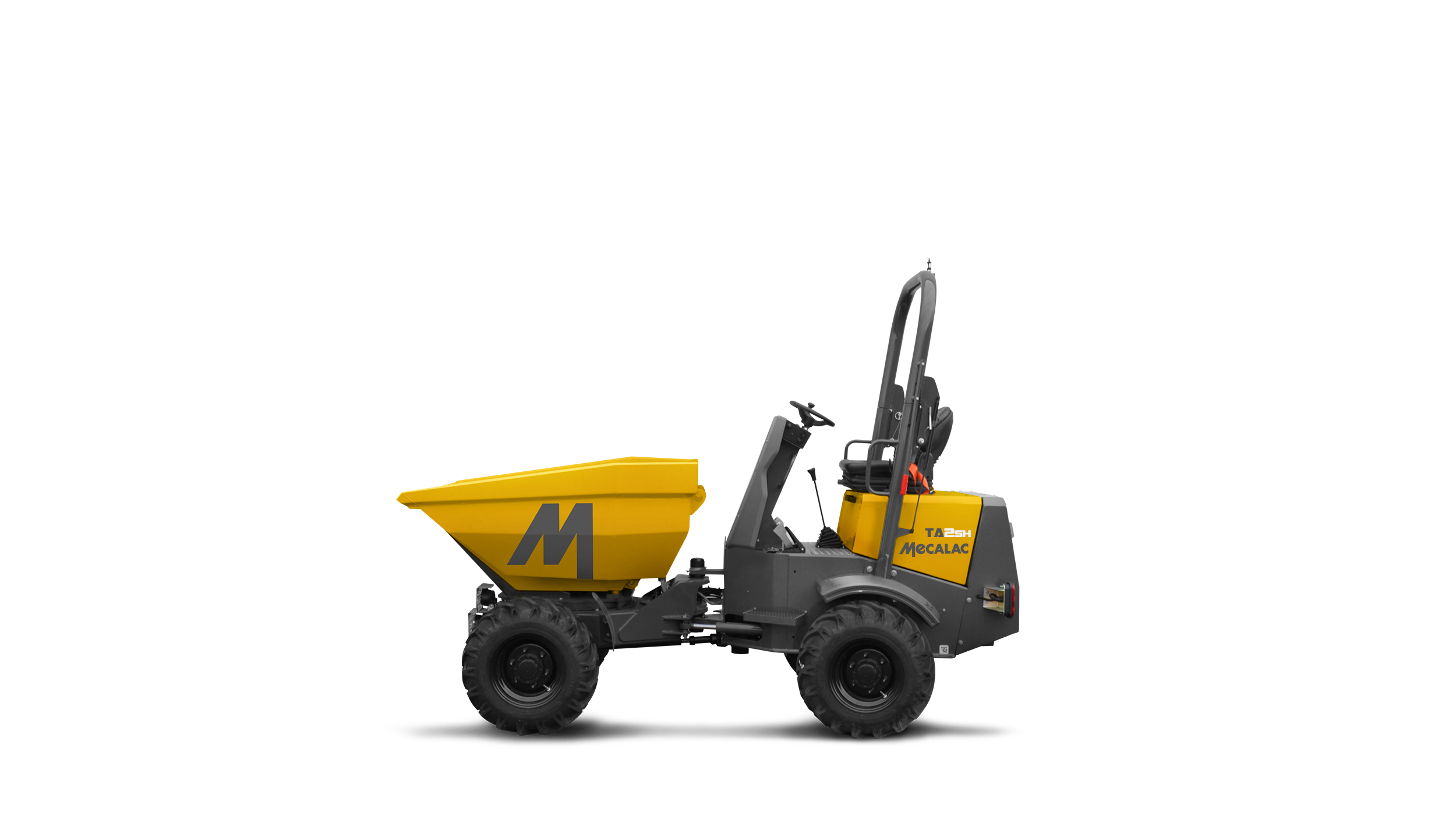

Wheel Dumpers Mecalac TA2SH

Technical specs - TA2SH Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.08 t
Standard tyres
10.0/75x15.3 10ply
Net load
2 t
Dump capacity
1.2 m³
Dumper type
R
Transport length
4 m
Transport width
1.49 m
Transport height
2.92 m
Travel speed
16 km/h
Loading height
0.98 m
Turning radius outside
3.68 m
Model series
TA
Engine manuf.
Kubota
Engine type
D1703M
Engine power
24.5 kW
Displacement
1.647 l
Emission level
III A

More technical details, like: dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, model type, driveline, rops, fops, telematics available, platform, fleet management...

More technical details, like: dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, model type, driveline, rops, fops, telematics available, platform, fleet management, health monitoring, security, engine manufacturer, engine model, engine output, torque, fuel, drive, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, skip lip height - untipped, turning radius - outside, chassis articulation, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Heated dump body
No
All-wheel drive
Yes
Track
No
Aircondition
No

Download datasheets (PDF)

Mecalac TA2SH FAQ

When was the Mecalac TA2SH manufactured?

The Mecalac TA2SH was manufactured from 2017 to 2020.

How much does the Mecalac TA2SH wheel dumper weigh?

The Mecalac TA2SH wheel dumper weighs 2.08 tons.

What are the transport dimensions of the Mecalac TA2SH wheel dumper?

The Mecalac TA2SH has a transport length of 4 meters, a transport width of 1.49 meters, and a transport height of 2.92 meters.

What is the travel speed of the Mecalac TA2SH wheel dumper?

The Mecalac TA2SH wheel dumper has a travel speed of 16 km/h.

What are the undercarriage tyre specifications of the Mecalac TA2SH wheel dumper?

The Mecalac TA2SH wheel dumper is equipped with standard tyres sized 10.0/75x15.3 10ply.

What is the turning radius of the Mecalac TA2SH wheel dumper?

The Mecalac TA2SH wheel dumper has an outside turning radius of 3.68 meters.

What is the material handling capacity of the Mecalac TA2SH wheel dumper?

The Mecalac TA2SH wheel dumper has a net load capacity of 2 tons and a dump capacity of 1.2 cubic meters.
