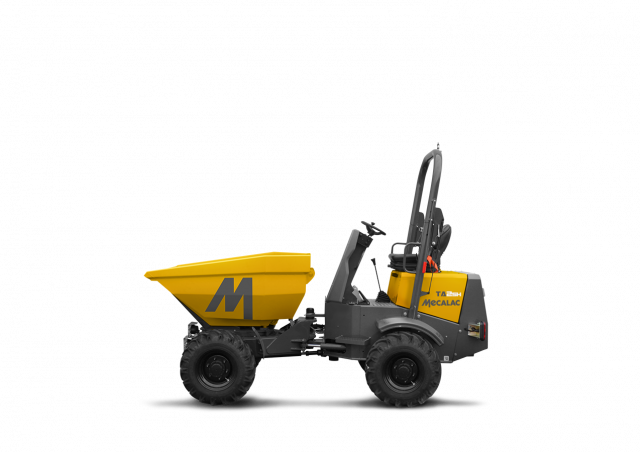

TA2H Mecalac TA2H Specifications & Technical Data (2017—2020)

Weight: 1.96t – Standard tyres: 10.0/75x15.3 10ply – Net load: 2t – Dump capacity: 1.2m³ – Dumper type: V – Transport length: 4m

TA2H

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TA2H Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.96 t

Standard tyres: 10.0/75x15.3 10ply

Net load: 2 t

Dump capacity: 1.2 m³

Dumper type: V

Transport length: 4 m

Transport width: 1.49 m

Transport height: 2.92 m

Travel speed: 16 km/h

Loading height: 0.92 m

Turning radius outside: 3.68 m

Model series: TA

Engine manuf.: Kubota

Engine type: D1703M

Engine power: 24.5 kW

Displacement: 1.647 l

Emission level: III A

More technical details, like: dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, model type, driveline, rops, fops, telematics available, platform, fleet management, health monitoring, security, engine manufacturer, engine model, engine output, torque, drive, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, skip lip height - untipped, turning radius - outside, chassis articulation, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

Mecalac TA2H FAQ

When was the Mecalac TA2H manufactured?

The Mecalac TA2H was manufactured from 2017 to 2020.

How much does the Mecalac TA2H weigh?

The Mecalac TA2H weighs 1.96 tons.

What are the transport dimensions of the Mecalac TA2H wheel dumper?

The Mecalac TA2H wheel dumper has a transport length of 4 meters, a transport width of 1.49 meters, and a transport height of 2.92 meters.

What is the travel speed of the Mecalac TA2H wheel dumper?

The Mecalac TA2H wheel dumper has a travel speed of 16 km/h.

What are the undercarriage specifications of the Mecalac TA2H wheel dumper?

The Mecalac TA2H wheel dumper is equipped with standard tyres sized 10.0/75x15.3 10ply.

What is the turning radius of the Mecalac TA2H wheel dumper?

The Mecalac TA2H has an outside turning radius of 3.68 meters.

What is the material handling capacity of the Mecalac TA2H wheel dumper?

The Mecalac TA2H wheel dumper has a net load capacity of 2 tons, a dump capacity of 1.2 cubic meters, and a loading height of 0.92 meters, featuring a front-end tipper dumper type.

How much is a Mecalac TA2H Wheel dumper (2017u20132020) worth?

The residual value of the Mecalac TA2H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
