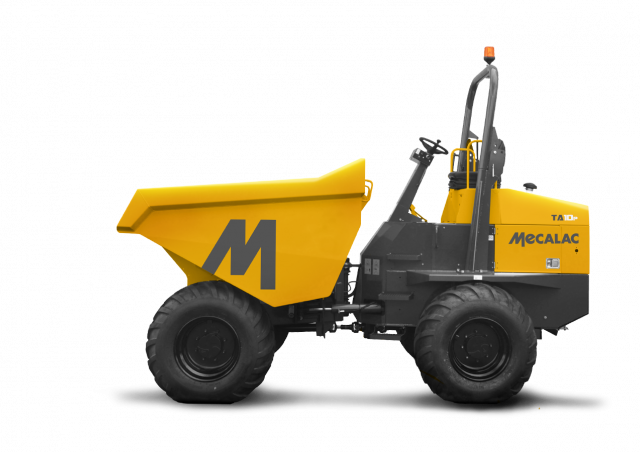

TA10P Mecalac TA10P Specifications & Technical Data (2021—2022)
.png)
Technical specs - TA10P Mecalac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 5.06 t
- Standard tyres
- 500-60-22.5 16PR
- Net load
- 10 t
- Dump capacity
- 5.046 m³
- Dumper type
- V
- Transport length
- 4.53 m
- Transport width
- 2.55 m
- Transport height
- 3.668 m
- Travel speed
- 24.8 km/h
- Turning radius outside
- 6.011 m
- Model series
- TA
- Engine manuf.
- JCB
- Engine type
- EcoMax
- Engine power
- 55 kW
- Displacement
- 4.4 l
- Revolutions at max torque
- 1300 rpm
- Max. torque
- 400 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 103x132 mm
- Emission level
- V
More technical details, like: loading height, dimension lxwxh are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Heated dump body
-
No
- All-wheel drive
-
No
- Track
-
No
- Aircondition
-
No
Mecalac TA10P FAQ
How much does the Mecalac TA10P wheel dumper weigh?
What are the transport dimensions of the Mecalac TA10P wheel dumper?
What is the travel speed of the Mecalac TA10P wheel dumper?
What are the undercarriage specifications of the Mecalac TA10P wheel dumper?
What is the turning radius of the Mecalac TA10P wheel dumper?
What is the material handling capacity of the Mecalac TA10P wheel dumper?
How much is a Mecalac TA10P Wheel dumper (2021u20132022) worth?
Machine inspection
Ask for inspection of your Mecalac TA10P from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Mecalac TA10P with similar Wheel Dumpers
.png)

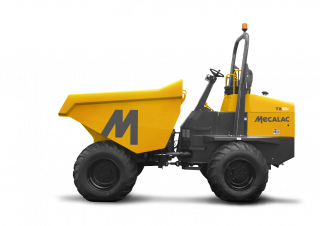

Mecalac TA10P
