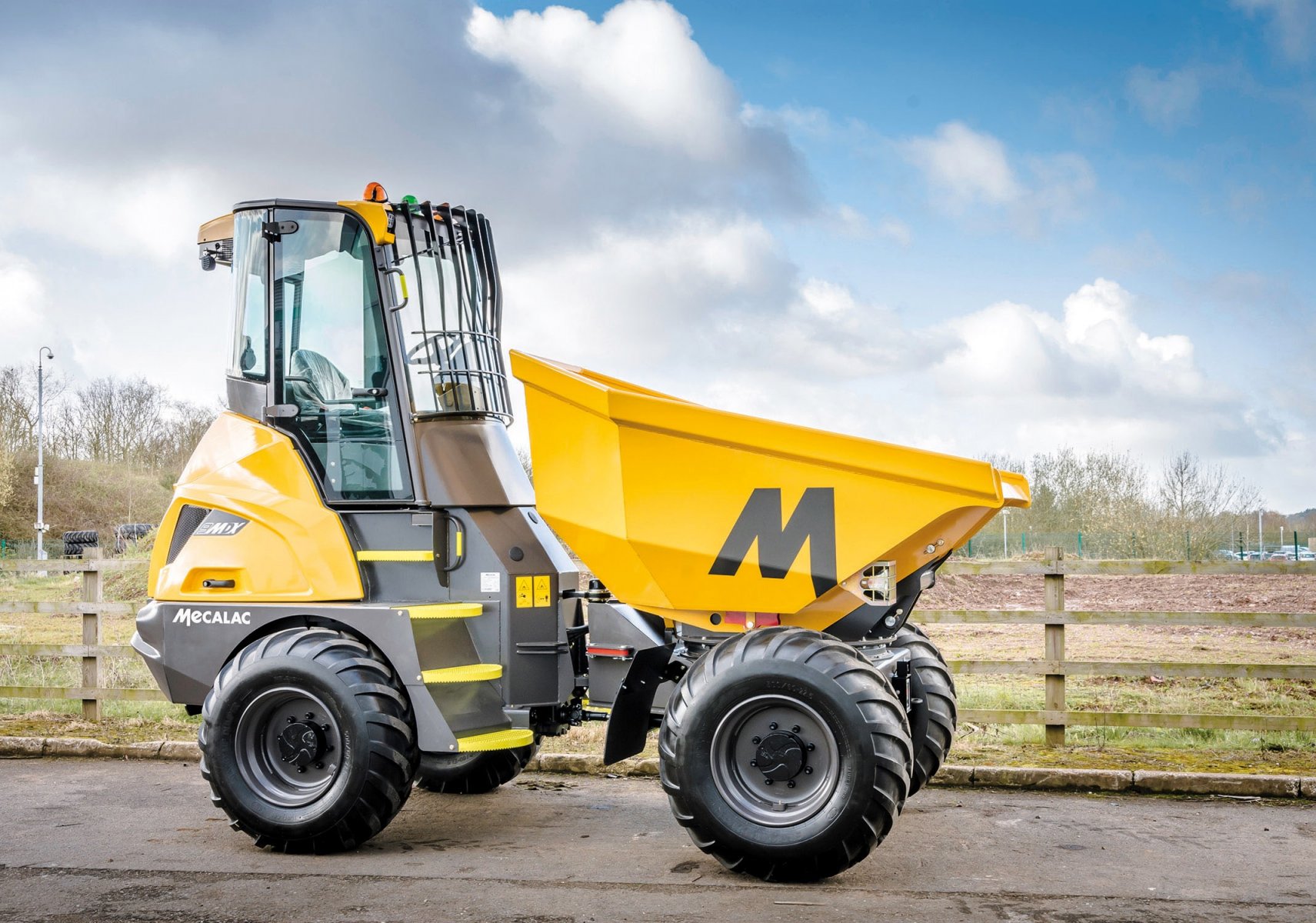

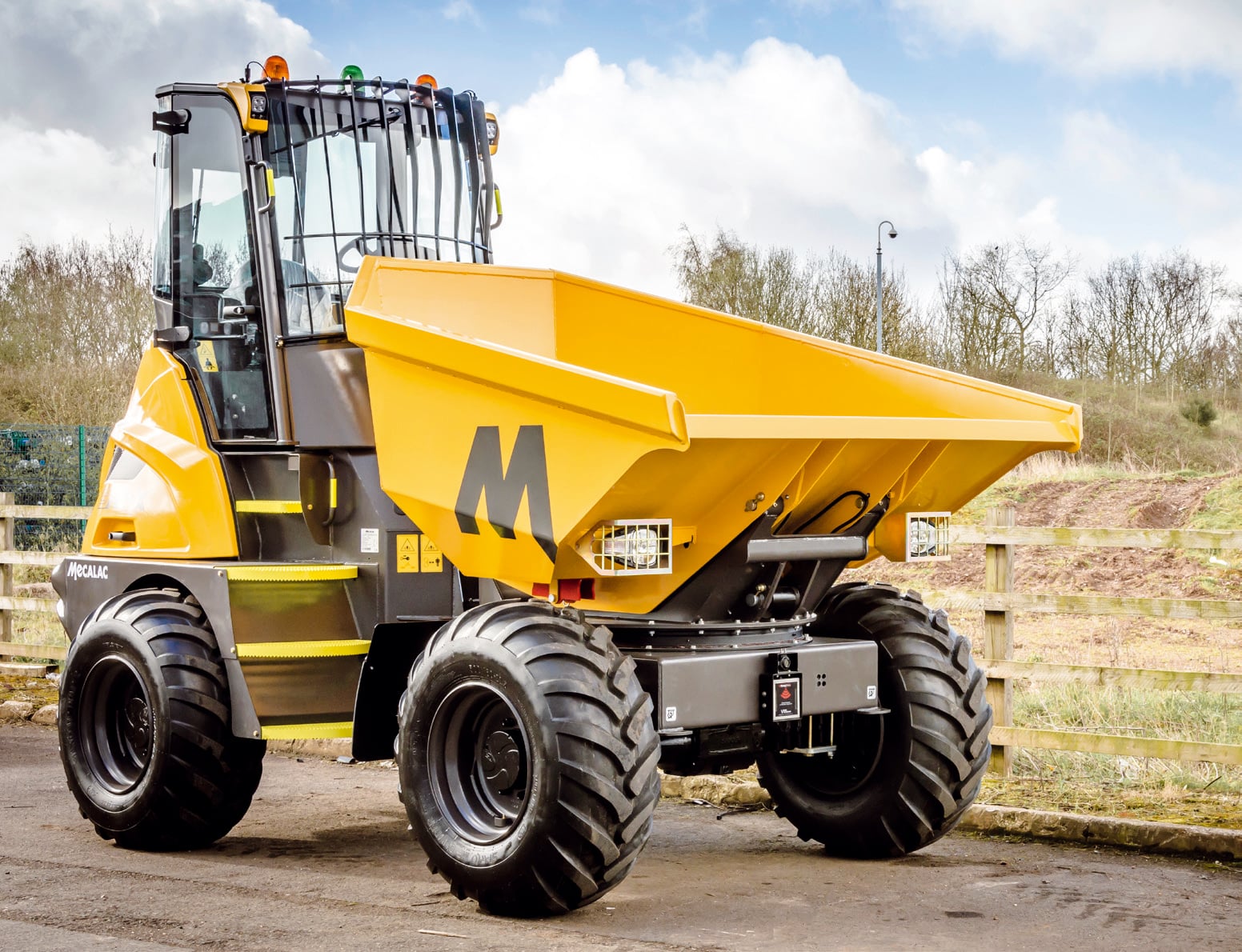

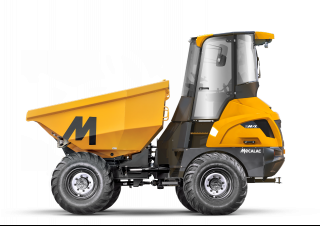

9MDX Mecalac 9MDX Specifications & Technical Data (2021—2026)
.jpg)
.jpg)
Technical specs - 9MDX Mecalac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 5.495 t
- Standard tyres
- 500/60 R22.5 16PR
- Net load
- 9 t
- Dump capacity
- 3.775 m³
- Dumper type
- V
- Transport length
- 4.585 m
- Transport width
- 2.502 m
- Transport height
- 3.384 m
- Travel speed
- 24 km/h
- Loading height
- 1.682 m
- Model series
- MDX
- Engine manuf.
- Perkins
- Engine type
- Syncro
- Engine power
- 55 kW
- Displacement
- 3.6 l
- Revolutions at max torque
- 2300 rpm
- Max. torque
- 424/1200 Nm
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: turning radius outside, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Heated dump body
-
No
- All-wheel drive
-
No
- Track
-
No
- Aircondition
-
No
Download datasheets (PDF)
Mecalac 9MDX FAQ
How much does the Mecalac 9MDX wheel dumper weigh?
What are the transport dimensions of the Mecalac 9MDX wheel dumper?
What is the travel speed of the Mecalac 9MDX wheel dumper?
What are the standard tyre specifications for the Mecalac 9MDX wheel dumper's undercarriage?
What is the material handling capacity of the Mecalac 9MDX wheel dumper?
How much is a Mecalac 9MDX Wheel dumper (2021u20132025) worth?
Machine inspection
Ask for inspection of your Mecalac 9MDX from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Mecalac 9MDX with similar Wheel Dumpers
.jpg)

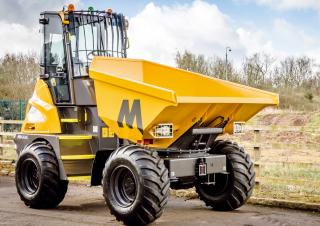

Mecalac 9MDX
