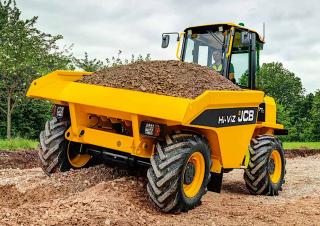

9T-1 JCB 9T-1 Specifications & Technical Data (2017—2026)
Visit JCB live at
.jpg){kind=logo}
Technical specs - 9T-1 JCB
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.99 t
- Net load
- 9 t
- Dump capacity
- 4.53 m³
- Transport length
- 5.14 m
- Transport width
- 2.5 m
- Transport height
- 3.57 m
- Travel speed
- 24.7 km/h
- Loading height
- 2 m
- Turning radius outside
- 6.37 m
- Engine manuf.
- JCB
- Engine type
- EcoMax
- Engine power
- 55 kW
- Displacement
- 4.4 l
- Max. torque
- 400 Nm
- No. of cylinders
- 4
- Emission level
- EU 3B / Tier 4 Final
More technical details, like: standard tyres, dumper type, model series, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Heated dump body
-
No
- All-wheel drive
-
No
- Track
-
No
- Aircondition
-
No
Download datasheets (PDF)
JCB 9T-1 FAQ
How much does the JCB 9T-1 wheel dumper weigh?
What are the transport dimensions of the JCB 9T-1 wheel dumper?
What is the travel speed of the JCB 9T-1 wheel dumper?
What is the outside turning radius of the JCB 9T-1 wheel dumper?
What is the material handling capacity of the JCB 9T-1 wheel dumper?
