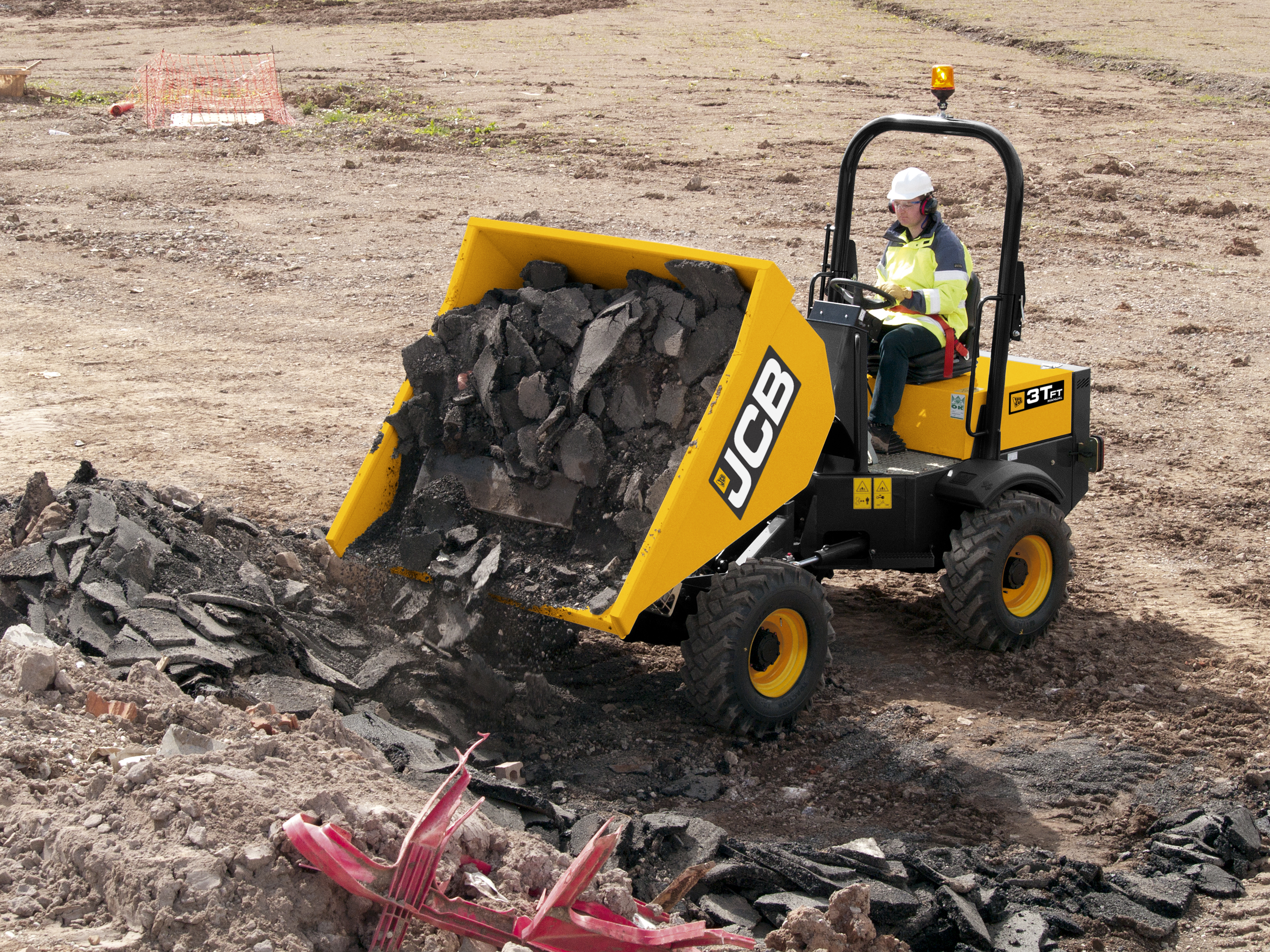

3T-1 FT JCB 3T-1 FT Specifications & Technical Data (2017—2026)
.jpg)
.jpg)
Visit JCB live at
.jpg){kind=logo}
Technical specs - 3T-1 FT JCB
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.32 t
- Standard tyres
- 295/80x15.3
- Net load
- 3 t
- Dump capacity
- 3 m³
- Transport length
- 3.76 m
- Transport width
- 1.65 m
- Transport height
- 3.02 m
- Travel speed
- 20 km/h
- Loading height
- 1.5 m
- Turning radius outside
- 5.45 m
- Engine manuf.
- Kubota
- Engine type
- D1703
- Engine power
- 27.4 kW
- Displacement
- 1.647 l
- Max. torque
- 111.7 Nm
- No. of cylinders
- 3
- Emission level
- Euro III A
More technical details, like: dumper type, model series, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Heated dump body
-
No
- All-wheel drive
-
No
- Track
-
No
- Aircondition
-
No
Download datasheets (PDF)
JCB 3T-1 FT FAQ
How much does the JCB 3T-1 FT wheel dumper weigh?
What are the transport dimensions of the JCB 3T-1 FT wheel dumper?
What is the travel speed of the JCB 3T-1 FT wheel dumper?
What are the undercarriage tyre specifications of the JCB 3T-1 FT wheel dumper?
What is the turning radius of the JCB 3T-1 FT wheel dumper?
What is the material handling capacity of the JCB 3T-1 FT wheel dumper?
How much is a JCB 3T-1 FT Wheel dumper (2017u20132025) worth?
