DHK 4002 M ERA DHK 4002 M Specifications & Technical Data (1995—1997)

Weight: 1.8t – Standard tyres: 10.00/75x15 – Net load: 2.3t – Dump capacity: 1.3m³ – Model series: DHK – Engine manuf.: Kubota

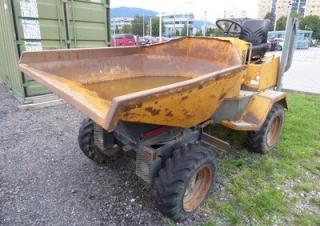

Wheel Dumpers ERA DHK 4002 M

Technical specs - DHK 4002 M ERA

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.8 t
Standard tyres
10.00/75x15
Net load
2.3 t
Dump capacity
1.3 m³
Model series
DHK
Engine manuf.
Kubota
Engine type
D1403
Engine power
21.6 kW

More technical details, like: dumper type, transport length, transport width, transport height, travel speed, loading height, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: dumper type, transport length, transport width, transport height, travel speed, loading height, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Heated dump body
No
All-wheel drive
No
Track
No
Aircondition
No

ERA DHK 4002 M FAQ

When was the ERA DHK 4002 M manufactured?

The ERA DHK 4002 M was manufactured from 1995 to 1997.

How much does the ERA DHK 4002 M wheel dumper weigh?

The ERA DHK 4002 M wheel dumper weighs 1.8 tons.

What are the undercarriage specifications of the ERA DHK 4002 M wheel dumper?

The ERA DHK 4002 M wheel dumper is equipped with standard tyres sized 10.00/75x15.

What is the material handling capacity of the ERA DHK 4002 M wheel dumper?

The ERA DHK 4002 M wheel dumper has a net load capacity of 2.3 tons and a dump capacity of 1.3 cubic meters.
