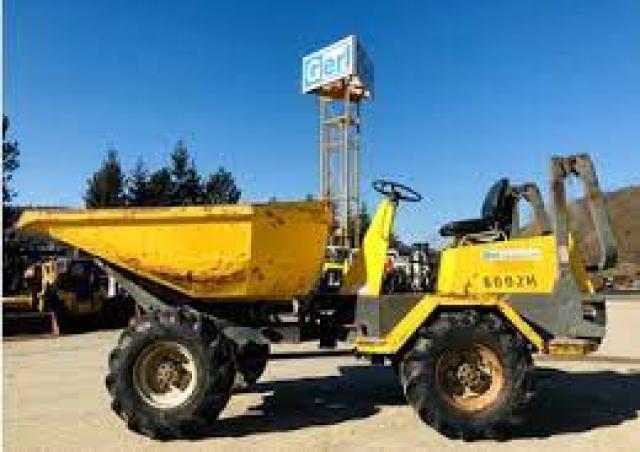

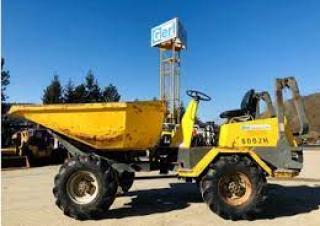

ERA DHK 3002 M Specifications & Technical Data (1995-1999)

Weight: 1.4t – Standard tyres: 9.00/70x16 – Net load: 2t – Dump capacity: 1.1m³ – Model series: DHK – Engine manuf.: Kubota

Technical specs - DHK 3002 M ERA

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.4 t
Standard tyres
9.00/70x16
Net load
2 t
Dump capacity
1.1 m³
Model series
DHK
Engine manuf.
Kubota
Engine type
D1105
Engine power
18 kW
Displacement
1.123 l
Revolutions at max torque
3000 rpm
No. of cylinders
3
Emission level
III B

More technical details, like: dumper type, transport length, transport width, transport height, travel speed, loading height, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Heated dump body
No
All-wheel drive
No
Track
No
Aircondition
No

Machine inspection

Ask for inspection of your ERA DHK 3002 M from experts

Machine inspection

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Provided by: Mevas — The Heavy Equipment Inspectors

Machine inspection

Buy & Rent

Compare ERA DHK 3002 M with similar Wheel Dumpers

ERA DHK 3002 M

ERA DHK 3002 M

Weight:
1.4 t
Standard tyres:
9.00/70x16
Net load:
2 t
Dump capacity:
1.1 m³
Mecalac TA1EH

Mecalac TA1EH

Weight:
1.31 t
Standard tyres:
255/15x15.2 8play2
Net load:
1 t
Dump capacity:
0.54 m³
JCB 1T-1 HT

JCB 1T-1 HT

Weight:
1.4 t
Standard tyres:
255/75x15.3 8ply
Net load:
1 t
Dump capacity:
1 m³
Neuson 1001

Neuson 1001

Weight:
1.23 t
Standard tyres:
10.00/75x15.3
Net load:
1.5 t
Dump capacity:
0.83 m³
Ausa D 150 AHA

Ausa D 150 AHA

Weight:
1.51 t
Standard tyres:
10/75-15.3
Dump capacity:
0.681 m³
