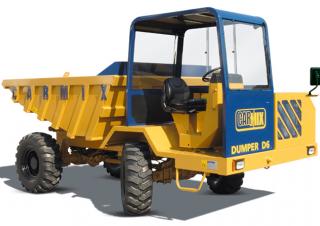

Carmix D 6 Specifications & Technical Data (2017-2025)

Technical specs - D 6 Carmix

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.8 t

Standard tyres: 16/70 PR 14

Net load: 10 t

Dump capacity: 6 m³

Transport length: 5.4 m

Transport width: 2.31 m

Transport height: 2.86 m

Travel speed: 25 km/h

Loading height: 2.07 m

Engine manuf.: Perkins

Engine type: 1104D-44TA

Engine power: 83 kW

Revolutions at max torque: 2300 rpm

No. of cylinders: 4

More technical details, like: dumper type, turning radius outside, model series, dimension lxwxh, displacement, max. torque, cylinder bore x stroke, emission level, model type, driveline, rops, fops...

More technical details, like: dumper type, turning radius outside, model series, dimension lxwxh, displacement, max. torque, cylinder bore x stroke, emission level, model type, driveline, rops, fops, engine manufacturer, engine model, rated speed, engine output, fuel, drive, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, width - front tyres, width - rear tyres, skip lip height - untipped, height over skip - untipped, payload - heaped, payload - struck, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: No
Track: No
Aircondition: No

Download datasheets (PDF)

Carmix D 6 FAQ

When was the Carmix D 6 manufactured?

The Carmix D 6 was first produced in 2017.

How much does the Carmix D 6 wheel dumper weigh?

The Carmix D 6 wheel dumper weighs 5.8 tons.

What are the transport dimensions of the Carmix D 6 wheel dumper?

The Carmix D 6 wheel dumper has a transport length of 5.4 meters, a transport width of 2.31 meters, and a transport height of 2.86 meters.

What is the travel speed of the Carmix D 6 wheel dumper?

The Carmix D 6 wheel dumper has a travel speed of 25 km/h.

What are the undercarriage specifications of the Carmix D 6 wheel dumper?

The Carmix D 6 wheel dumper is equipped with standard tyres sized 16/70 PR 14.

What is the material handling capacity of the Carmix D 6 wheel dumper?

The Carmix D 6 wheel dumper has a net load capacity of 10 tons and a dump capacity of 6 cubic meters.

How much is a Carmix D 6 Wheel dumper (2017u20132025) worth?

The residual value of the Carmix D 6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
