2090R Plus Bergmann 2090R Plus Specifications & Technical Data (2015—2019)

Weight: 6.28t – Standard tyres: 500/60 R20 – Net load: 9t – Dump capacity: 4.6m³ – Dumper type: R – Transport length: 4.953m

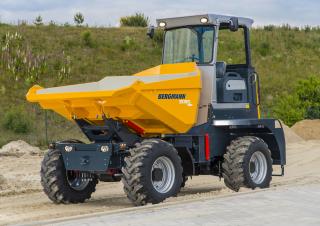

2090R Plus

Years of manufacture: 2015—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2090R Plus Bergmann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.28 t

Standard tyres: 500/60 R20

Net load: 9 t

Dump capacity: 4.6 m³

Dumper type: R

Transport length: 4.953 m

Transport width: 2.42 m

Transport height: 3.55 m

Travel speed: 28 km/h

Loading height: 1.97 m

Turning radius outside: 6.295 m

Model series: 2000

Engine manuf.: Cummins

Engine type: k.A.

Engine power: 75 kW

Revolutions at max torque: 2200 rpm

More technical details, like: dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, engine manufacturer, rated speed, engine output, fuel, drive, std tyre size front, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, turning radius - inside, turning radius - outside, chassis articulation, payload - heaped, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: No
Track: No
Aircondition: No

Download datasheets (PDF)

Bergmann 2090R Plus FAQ

When was the Bergmann 2090R Plus manufactured?

The Bergmann 2090R Plus was manufactured from 2015 to 2019.

How much does the Bergmann 2090R Plus weigh?

The Bergmann 2090R Plus weighs 6.28 tons.

What are the transport dimensions of the Bergmann 2090R Plus?

The Bergmann 2090R Plus has a transport length of 4.95 meters, a transport width of 2.42 meters, and a transport height of 3.55 meters.

What is the travel speed of the Bergmann 2090R Plus wheel dumper?

The Bergmann 2090R Plus has a travel speed of 28 km/h.

What are the undercarriage specifications of the Bergmann 2090R Plus?

The Bergmann 2090R Plus is equipped with standard tyres sized 500/60 R20.

What is the turning radius of the Bergmann 2090R Plus wheel dumper?

The Bergmann 2090R Plus has an outside turning radius of 6.295 meters.

What is the material handling capacity of the Bergmann 2090R Plus?

The Bergmann 2090R Plus has a net load capacity of 9 tons and a dump capacity of 4.6 cubic meters.
