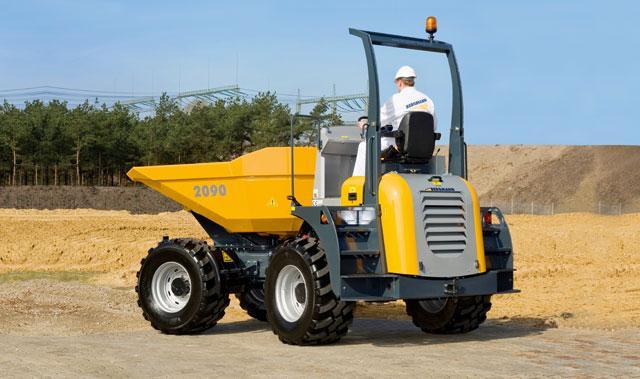

2090 R Bergmann 2090 R Specifications & Technical Data (2006—2015)

Weight: 5.26t – Standard tyres: 500/60R 22.5 – Net load: 9t – Dump capacity: 4.4m³ – Dumper type: R – Transport length: 5m

2090 R

Years of manufacture: 2006—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2090 R Bergmann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.26 t

Standard tyres: 500/60R 22.5

Net load: 9 t

Dump capacity: 4.4 m³

Dumper type: R

Transport length: 5 m

Transport width: 2.4 m

Transport height: 3.3 m

Travel speed: 33 km/h

Loading height: 1.9 m

Turning radius outside: 5.9 m

Model series: 2000

Engine manuf.: Kubota

Engine type: k.A.

Engine power: 74 kW

Revolutions at max torque: 2600 rpm

More technical details, like: dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, engine manufacturer, rated speed, engine output, fuel, drive, std tyre size front, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, turning radius - inside, turning radius - outside, chassis articulation, payload - heaped, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

2090 R Bergmann Specification for Europe (DE)

Bergmann 2090 R FAQ

When was the Bergmann 2090 R manufactured?

The Bergmann 2090 R was manufactured from 2006 to 2015.

How much does the Bergmann 2090 R wheel dumper weigh?

The Bergmann 2090 R wheel dumper weighs 5.26 tons.

What are the transport dimensions of the Bergmann 2090 R wheel dumper?

The Bergmann 2090 R has a transport length of 5 meters, a transport width of 2.4 meters, and a transport height of 3.3 meters.

What is the travel speed of the Bergmann 2090 R wheel dumper?

The Bergmann 2090 R has a travel speed of 33 km/h.

What are the standard tyre specifications of the Bergmann 2090 R wheel dumper?

The Bergmann 2090 R wheel dumper has standard tyres sized 500/60R 22.5.

What is the outside turning radius of the Bergmann 2090 R wheel dumper?

The Bergmann 2090 R has an outside turning radius of 5.9 meters.

What is the material handling capacity of the Bergmann 2090 R wheel dumper?

The Bergmann 2090 R wheel dumper has a net load capacity of 9 tons, a dump capacity of 4.4 cubic meters, and a loading height of 1.9 meters.
