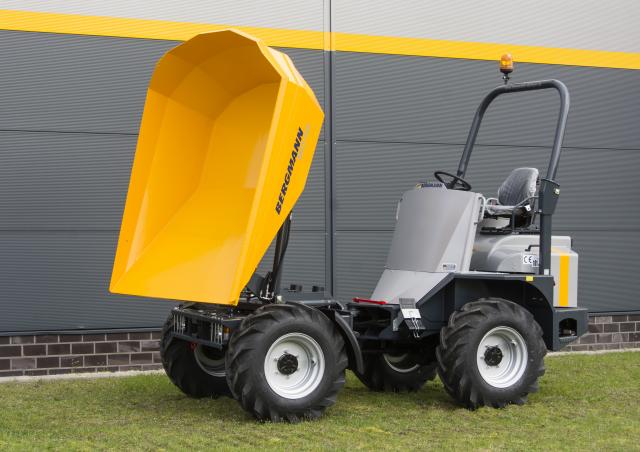

2040R Bergmann 2040R Specifications & Technical Data (2003—2019)

Weight: 2.72t – Standard tyres: 12.5/80-18 – Net load: 4t – Dump capacity: 2.3m³ – Dumper type: R – Transport length: 4m

2040R

Years of manufacture: 2003—2019

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2040R Bergmann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.72 t

Standard tyres: 12.5/80-18

Net load: 4 t

Dump capacity: 2.3 m³

Dumper type: R

Transport length: 4 m

Transport width: 1.89 m

Transport height: 2.9 m

Travel speed: 23 km/h

Loading height: 1.51 m

Turning radius outside: 3.7 m

Model series: 2000

Engine manuf.: Kubota

Engine type: k.A.

Engine power: 36 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, telematics available, engine output, height over rops, width, overall length, ground clearance, payload - heaped, payload - water, skip payload, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Buy full specs

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

Bergmann 2040R FAQ

When was the Bergmann 2040R manufactured?

The Bergmann 2040R was manufactured from 2003 to 2019.

How much does the Bergmann 2040R wheel dumper weigh?

The Bergmann 2040R wheel dumper weighs 2.72 tons.

What are the transport dimensions of the Bergmann 2040R wheel dumper?

The Bergmann 2040R has a transport length of 4 meters, a transport width of 1.89 meters, and a transport height of 2.9 meters.

What is the travel speed of the Bergmann 2040R wheel dumper?

The Bergmann 2040R has a travel speed of 23 km/h.

What are the undercarriage tyre specifications of the Bergmann 2040R wheel dumper?

The Bergmann 2040R wheel dumper is equipped with standard tyres sized 12.5/80-18.

What is the turning radius of the Bergmann 2040R wheel dumper?

The Bergmann 2040R has an outside turning radius of 3.7 meters.

What is the material handling capacity of the Bergmann 2040R wheel dumper?

The Bergmann 2040R wheel dumper has a net load capacity of 4 tons and a dump capacity of 2.3 cubic meters.
