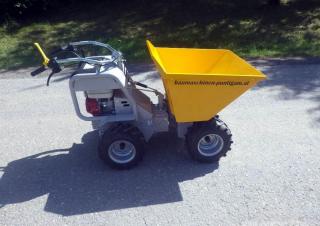

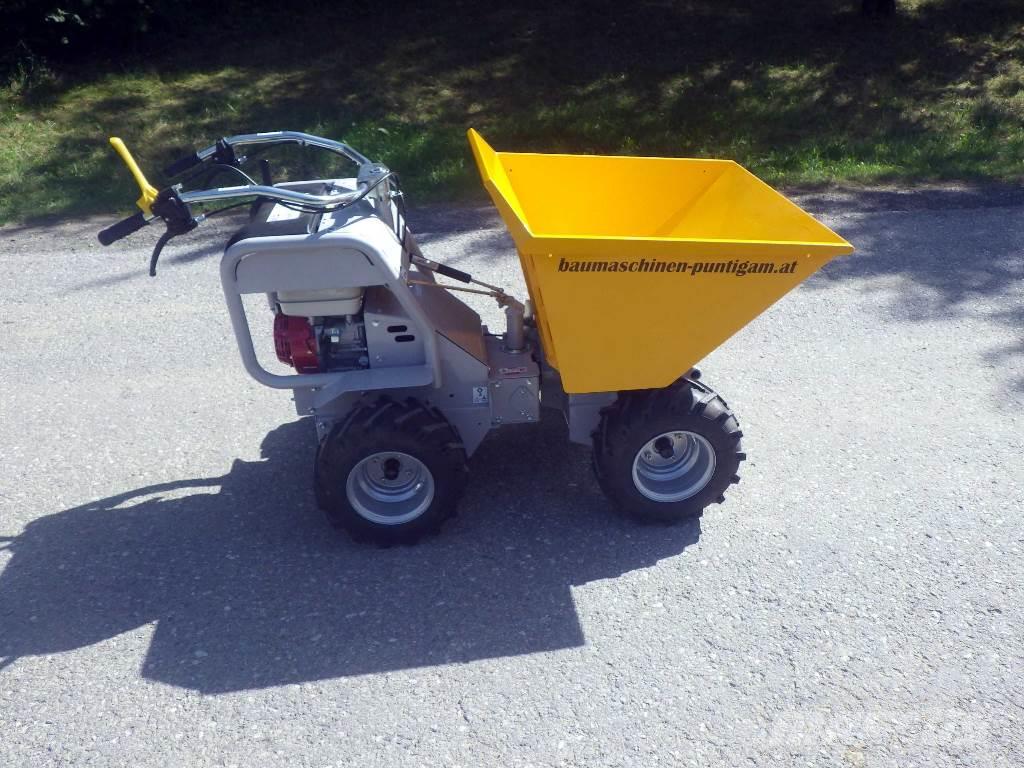

1005B Bergmann 1005B Specifications & Technical Data (2016—2019)
Technical specs - 1005B Bergmann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 0.18 t
- Net load
- 0.45 t
- Dump capacity
- 0.3 m³
- Dumper type
- V
- Transport length
- 1.527 m
- Transport width
- 0.84 m
- Transport height
- 0.881 m
- Travel speed
- 6.5 km/h
- Loading height
- 0.79 m
- Turning radius outside
- 1.465 m
- Model series
- 1000
- Engine manuf.
- Honda
- Engine type
- GX200
- Engine power
- 4.1 kW
- Revolutions at max torque
- 3600 rpm
More technical details, like: standard tyres, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Heated dump body
-
No
- All-wheel drive
-
No
- Track
-
No
- Aircondition
-
No
