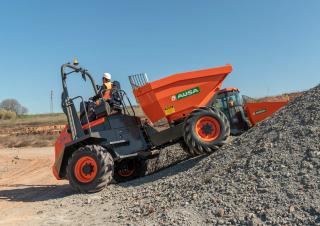

DR 601 AHG Ausa DR 601 AHG Specifications & Technical Data (2020—2026)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - DR 601 AHG Ausa
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.49 t
- Standard tyres
- 405/70-20
- Net load
- 6 t
- Dump capacity
- 3.154 m³
- Dumper type
- D/R
- Transport length
- 5.03 m
- Transport width
- 2.21 m
- Transport height
- 3.28 m
- Travel speed
- 25 km/h
- Loading height
- 1.74 m
- Turning radius outside
- 5.9 m
- Model series
- AHG
- Engine manuf.
- Deutz
- Engine type
- TD3.6 L4
- Engine power
- 55.4 kW
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 340/1500 Nm
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
Yes
- Heated dump body
-
Yes
- All-wheel drive
-
Yes
- Track
-
No
- Aircondition
-
Yes
