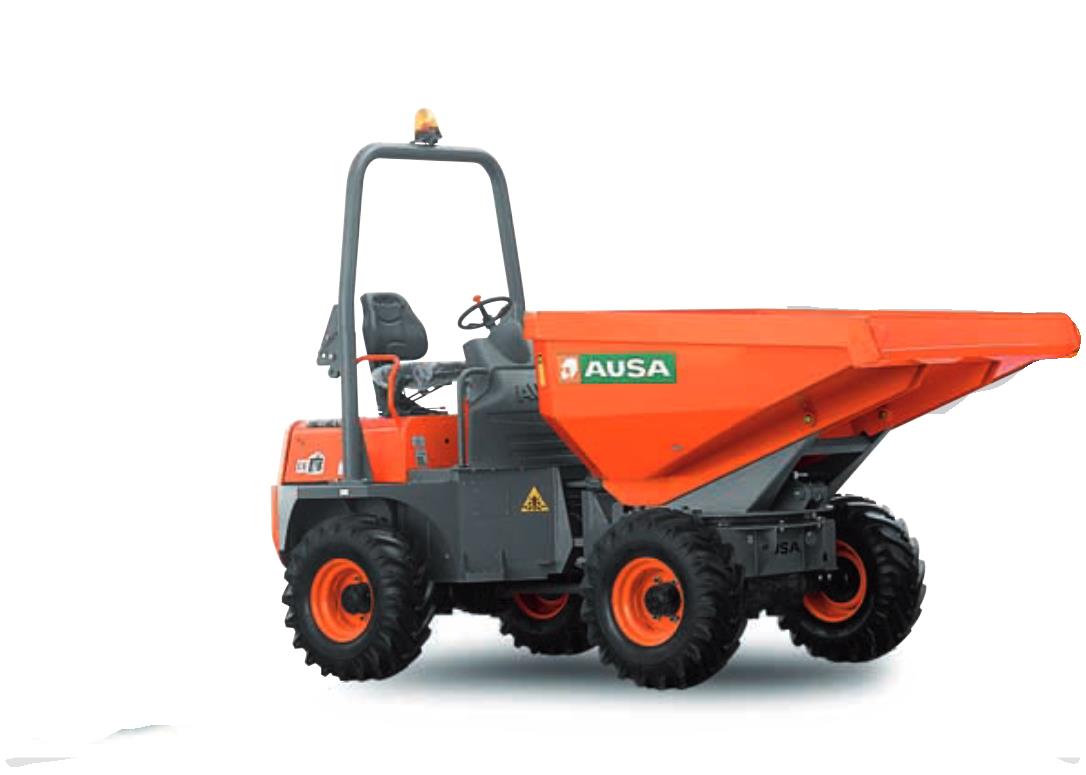

D 300 AMG Ausa D 300 AMG Specifications & Technical Data (2008—2014)

Weight: 2.7t – Standard tyres: 10.0/80-15.3 – Net load: 3.8t – Dump capacity: 1.7m³ – Dumper type: R – Transport length: 4m

D 300 AMG

Years of manufacture: 2008—2014

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - D 300 AMG Ausa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.7 t

Standard tyres: 10.0/80-15.3

Net load: 3.8 t

Dump capacity: 1.7 m³

Dumper type: R

Transport length: 4 m

Transport width: 1.858 m

Transport height: 3 m

Travel speed: 22 km/h

Loading height: 1.506 m

Turning radius outside: 4.68 m

Model series: AMG

Engine manuf.: Kubota

Engine type: V2203

Engine power: 35.6 kW

Displacement: 2.197 l

Revolutions at max torque: 2600 rpm

No. of cylinders: 4

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke, emission level, model type, driveline, rops, fops, telematics available, engine manufacturer, engine model, rated speed, engine output, fuel, drive, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, width - front tyres, width - rear tyres, width - skip, skip lip height - untipped, height over skip - untipped, turning radius - outside, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Buy full specs

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

Ausa D 300 AMG FAQ

When was the Ausa D 300 AMG manufactured?

The Ausa D 300 AMG was manufactured from 2008 to 2014.

How much does the Ausa D 300 AMG weigh?

The Ausa D 300 AMG weighs 2.7 tons.

What are the transport dimensions of the Ausa D 300 AMG wheel dumper?

The Ausa D 300 AMG has a transport length of 4 meters, a transport width of 1.86 meters, and a transport height of 3 meters.

What is the travel speed of the Ausa D 300 AMG wheel dumper?

The Ausa D 300 AMG has a travel speed of 22 km/h.

What are the undercarriage tyre specifications of the Ausa D 300 AMG?

The Ausa D 300 AMG is equipped with standard tyres sized 10.0/80-15.3.

What is the outside turning radius of the Ausa D 300 AMG?

The Ausa D 300 AMG has an outside turning radius of 4.68 meters.

What is the material handling capacity of the Ausa D 300 AMG wheel dumper?

The Ausa D 300 AMG wheel dumper has a net load capacity of 3.8 tons and a dump capacity of 1.7 cubic meters.

How much is a Ausa D 300 AMG Wheel dumper (2008u20132014) worth?

The residual value of the Ausa D 300 AMG depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
