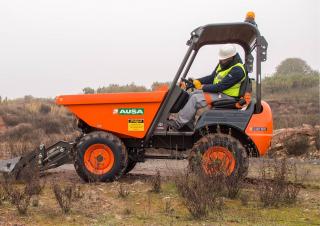

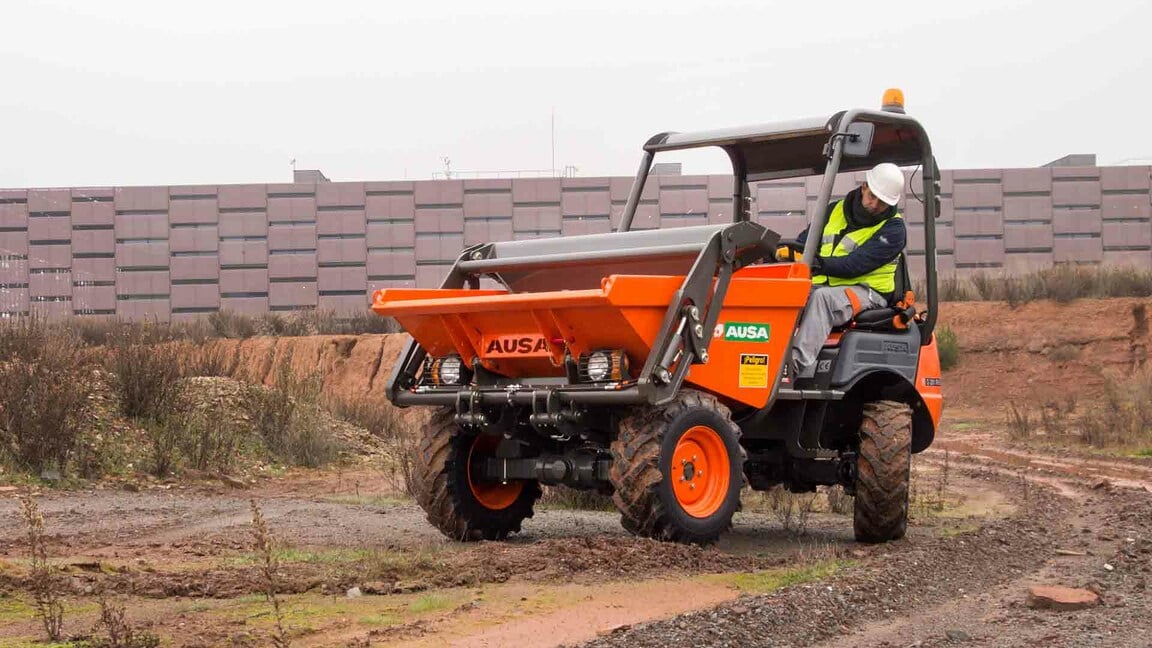

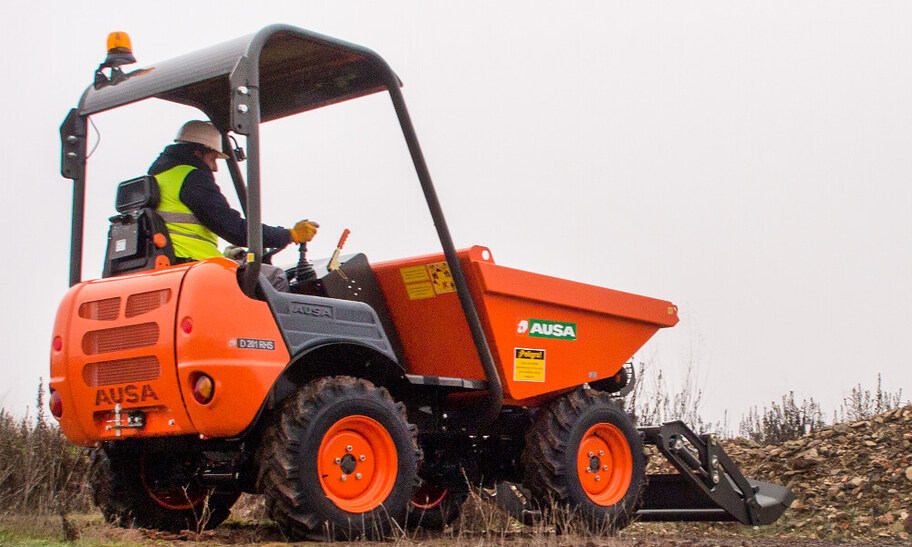

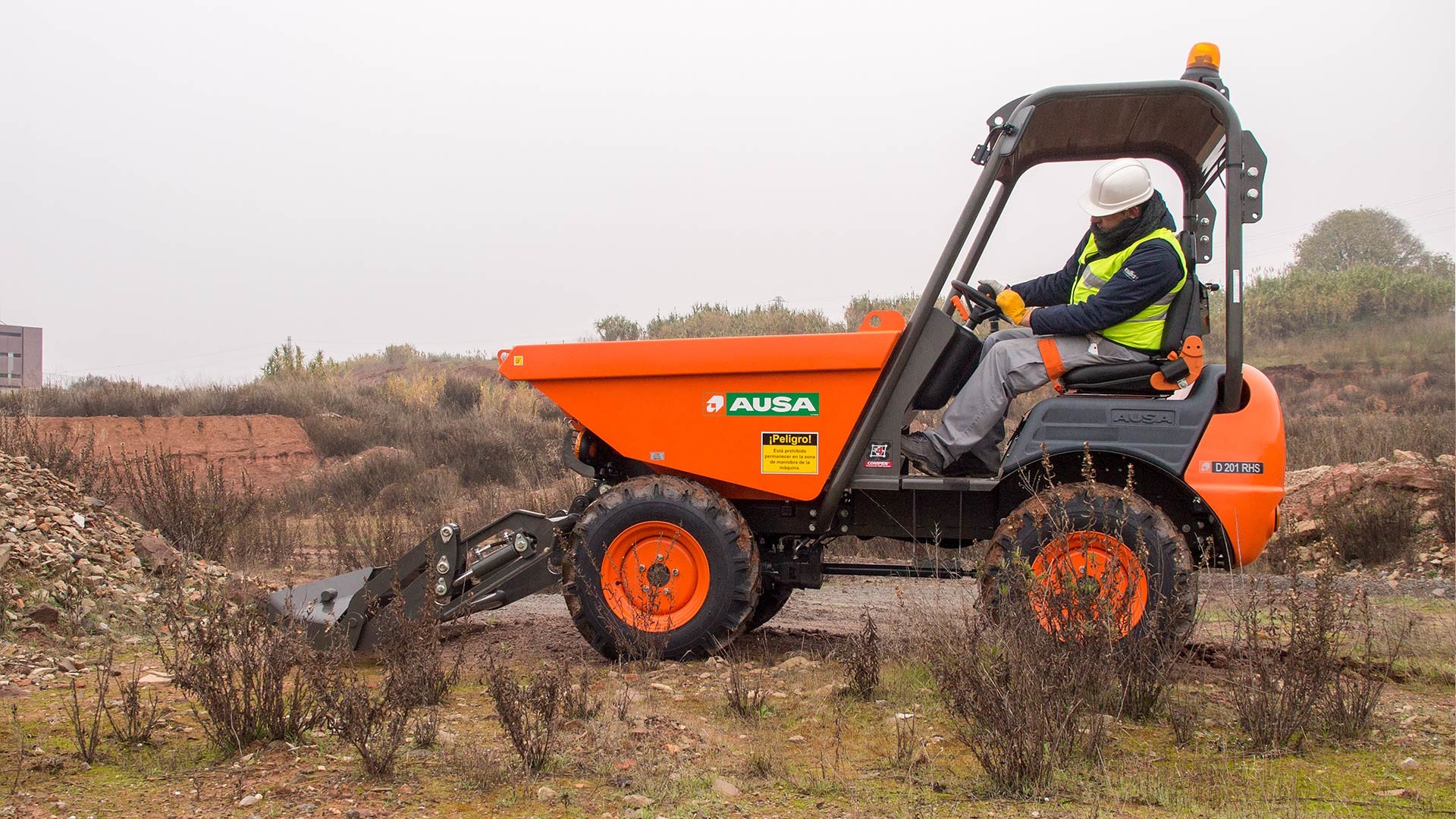

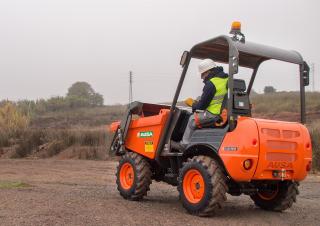

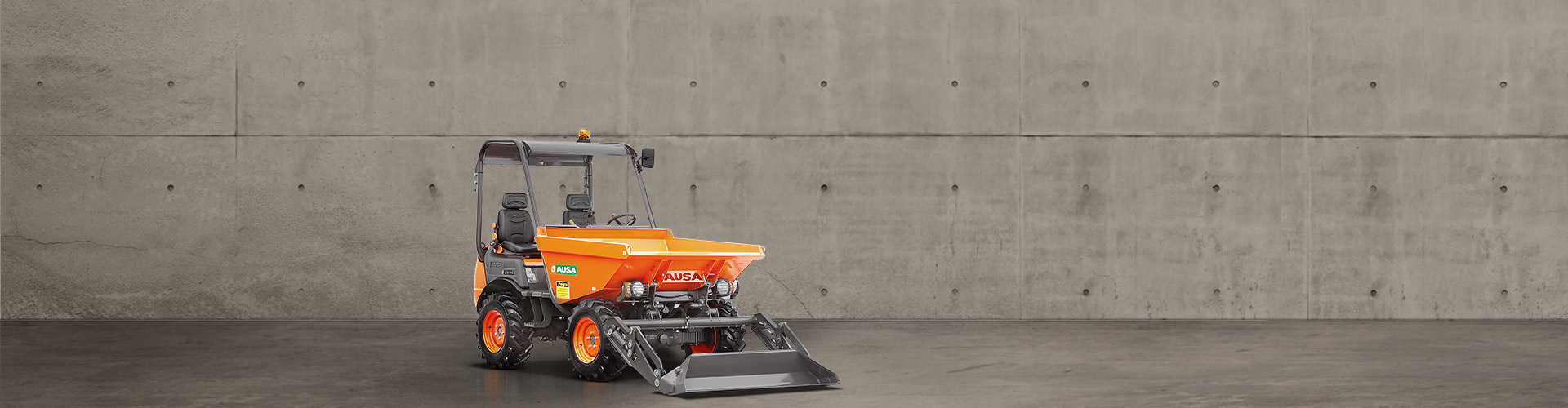

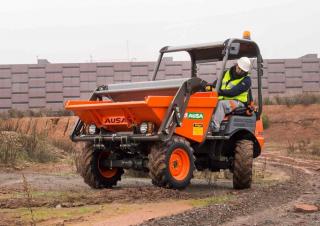

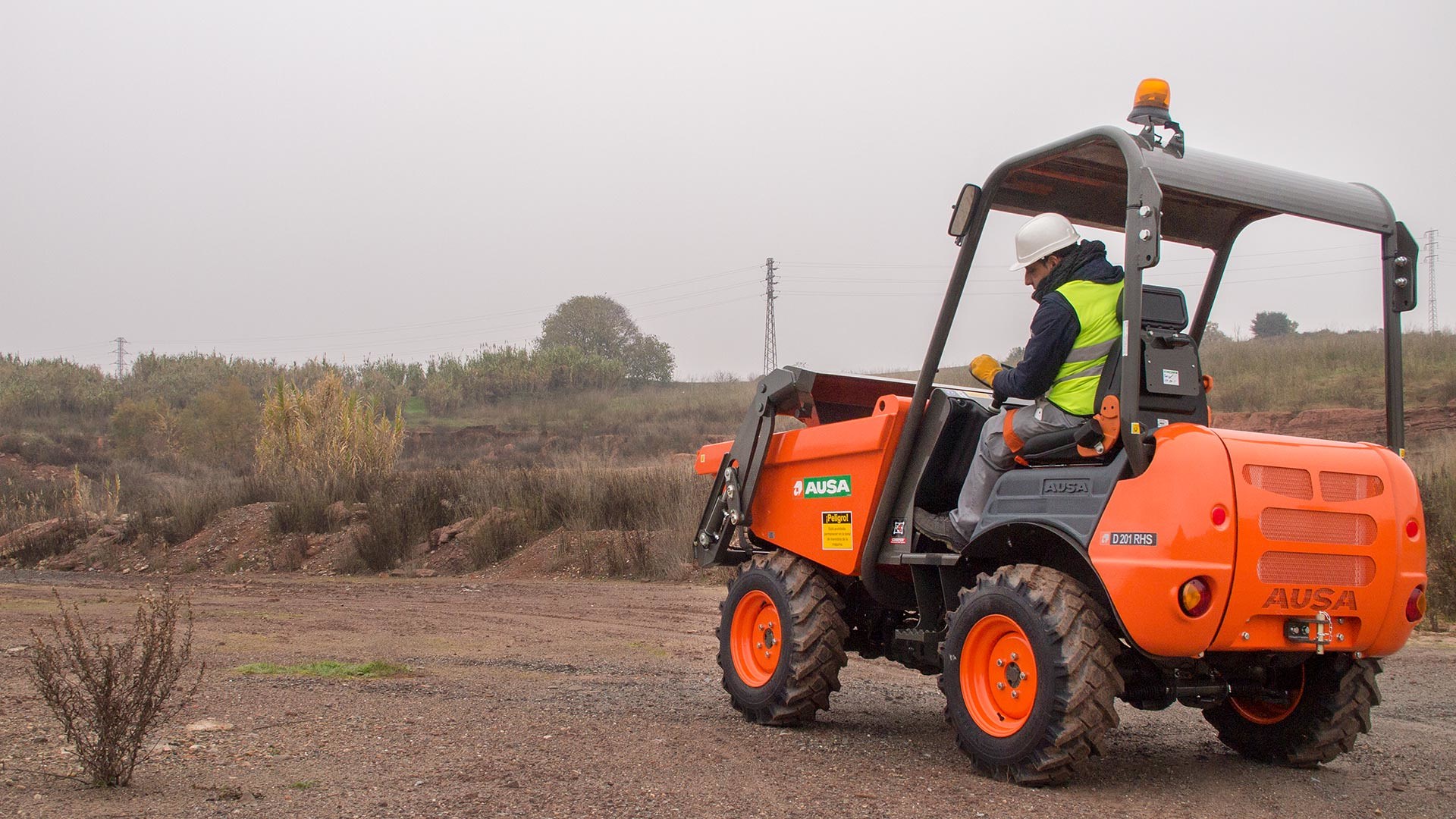

D 201 RHS Ausa D 201 RHS Specifications & Technical Data (2019—2026)

Weight: 1.9t – Standard tyres: 10.0/75-15.3 – Net load: 2t – Dump capacity: 1.25m³ – Dumper type: V – Transport length: 3.02m

D 201 RHS

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - D 201 RHS Ausa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.9 t

Standard tyres: 10.0/75-15.3

Net load: 2 t

Dump capacity: 1.25 m³

Dumper type: V

Transport length: 3.02 m

Transport width: 1.75 m

Transport height: 2.58 m

Travel speed: 18 km/h

Loading height: 1.195 m

Turning radius outside: 4.19 m

Model series: RHS

Engine manuf.: Kubota

Engine type: V1505-E4B

Engine power: 18.5 kW

Revolutions at max torque: 2500 rpm

Max. torque: 92.6/1700 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: Yes
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

Ausa D 201 RHS FAQ

When was the Ausa D 201 RHS manufactured?

The Ausa D 201 RHS was first produced in 2019.

How much does the Ausa D 201 RHS wheel dumper weigh?

The Ausa D 201 RHS wheel dumper weighs 1.9 tons.

What are the transport dimensions of the Ausa D 201 RHS wheel dumper?

The Ausa D 201 RHS has a transport length of 3.02 meters, a transport width of 1.75 meters, and a transport height of 2.58 meters.

What is the travel speed of the Ausa D 201 RHS wheel dumper?

The Ausa D 201 RHS has a travel speed of 18 km/h.

What are the standard tyre specifications for the Ausa D 201 RHS wheel dumper?

The Ausa D 201 RHS wheel dumper is equipped with standard tyres sized 10.0/75-15.3.

What is the turning radius of the Ausa D 201 RHS wheel dumper?

The Ausa D 201 RHS has an outside turning radius of 4.19 meters.

What is the material handling capacity of the Ausa D 201 RHS wheel dumper?

The Ausa D 201 RHS wheel dumper has a net load capacity of 2 tons and a dump capacity of 1.25 cubic meters.

How much is a Ausa D 201 RHS Wheel dumper (2019u20132025) worth?

The residual value of the Ausa D 201 RHS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
