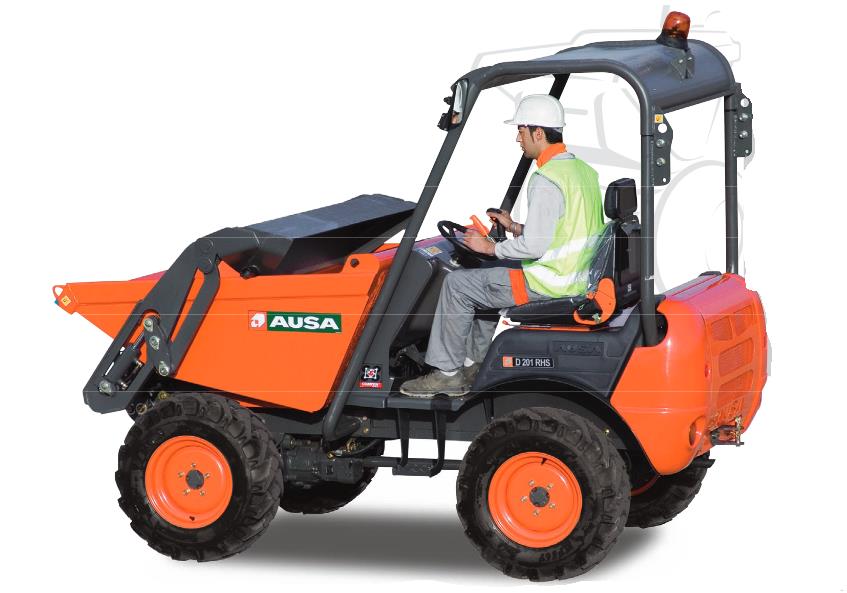

D 201 RHGS Ausa D 201 RHGS Specifications & Technical Data (2006—2014)

Weight: 2.05t – Standard tyres: 10l.0/75-15.3 – Net load: 2t – Dump capacity: 0.93m³ – Transport length: 4m – Transport width: 1.75m

Wheel Dumpers Ausa D 201 RHGS

Technical specs - D 201 RHGS Ausa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.05 t
Standard tyres
10l.0/75-15.3
Net load
2 t
Dump capacity
0.93 m³
Transport length
4 m
Transport width
1.75 m
Transport height
2.58 m
Travel speed
20 km/h
Loading height
2.045 m
Turning radius outside
4.19 m
Model series
RHGS
Engine manuf.
Kubota
Engine type
V1505
Engine power
24 kW

More technical details, like: dumper type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, fops...

More technical details, like: dumper type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, fops, telematics available, engine manufacturer, engine model, rated speed, engine output, fuel, drive, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, width - front tyres, width - rear tyres, width - skip, skip lip height - untipped, height over skip - untipped, turning radius - outside, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Heated dump body
No
All-wheel drive
Yes
Track
No
Aircondition
No

Download datasheets (PDF)

Ausa D 201 RHGS FAQ

When was the Ausa D 201 RHGS manufactured?

The Ausa D 201 RHGS was manufactured from 2006 to 2014.

How much does the Ausa D 201 RHGS wheel dumper weigh?

The Ausa D 201 RHGS wheel dumper weighs 2.05 tons.

What are the transport dimensions of the Ausa D 201 RHGS wheel dumper?

The Ausa D 201 RHGS has a transport length of 4 meters, a transport width of 1.75 meters, and a transport height of 2.58 meters.

What is the travel speed of the Ausa D 201 RHGS wheel dumper?

The Ausa D 201 RHGS has a travel speed of 20 km/h.

What are the standard tyre specifications for the Ausa D 201 RHGS wheel dumper?

The Ausa D 201 RHGS wheel dumper has standard tyres of size 10.0/75-15.3.

What is the turning radius of the Ausa D 201 RHGS wheel dumper?

The Ausa D 201 RHGS has an outside turning radius of 4.19 meters.

What is the material handling capacity of the Ausa D 201 RHGS wheel dumper?

The Ausa D 201 RHGS has a net load capacity of 2 tons and a dump capacity of 0.93 cubic meters.
