D 151 AHA Ausa D 151 AHA Specifications & Technical Data (2019—2026)

Weight: 1.51t – Standard tyres: 10.0/75-15.3 – Net load: 1.51t – Dump capacity: 0.84m³ – Dumper type: H – Transport length: 3.2m

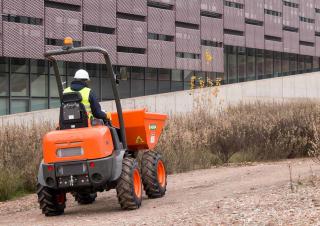

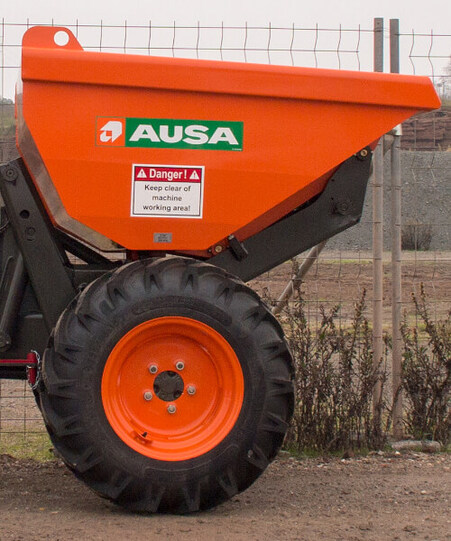

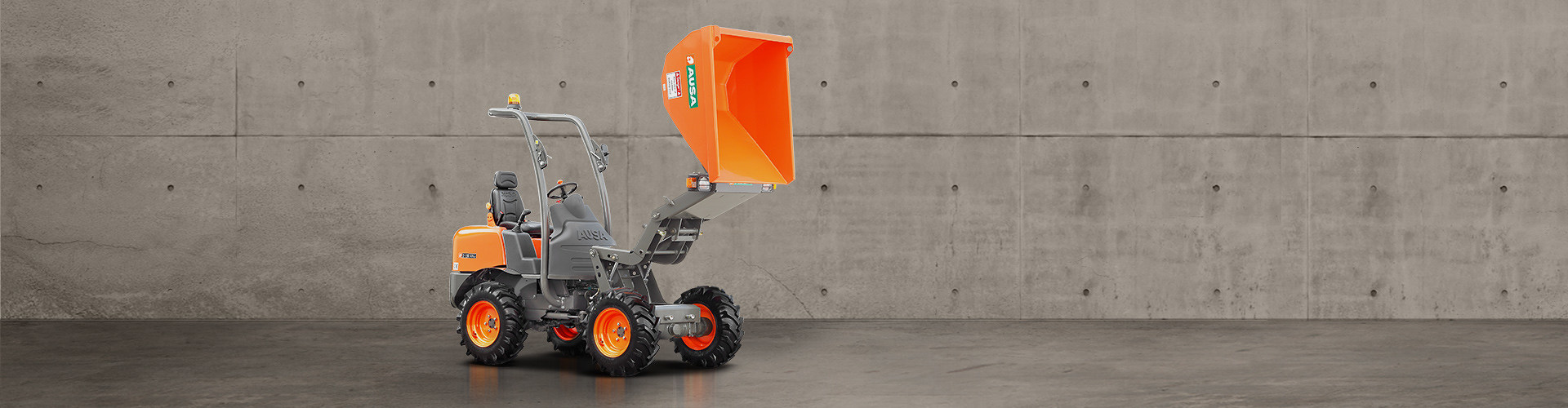

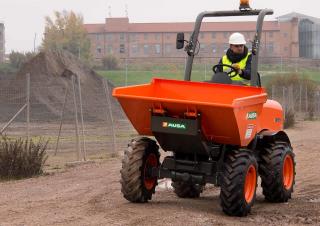

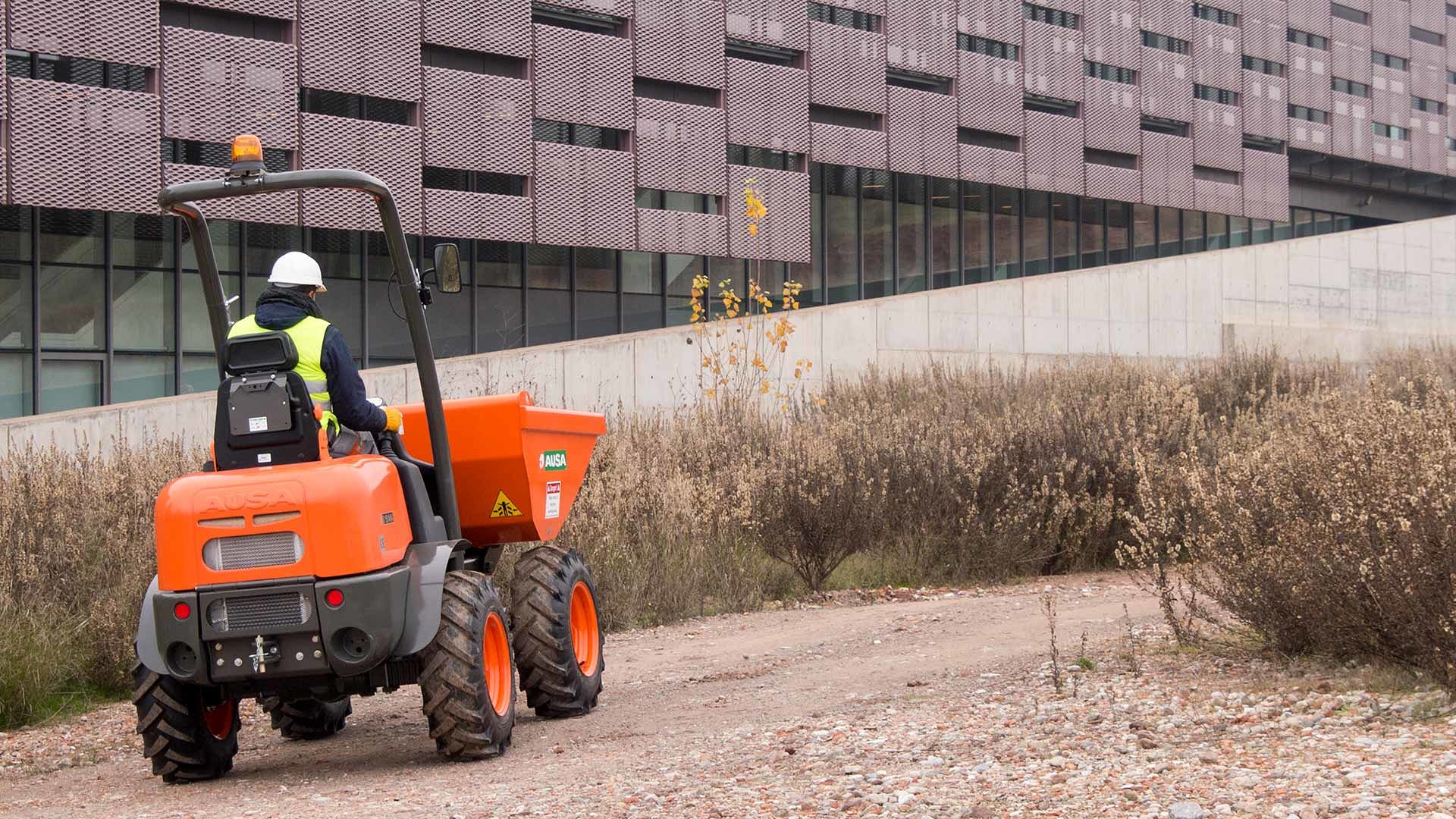

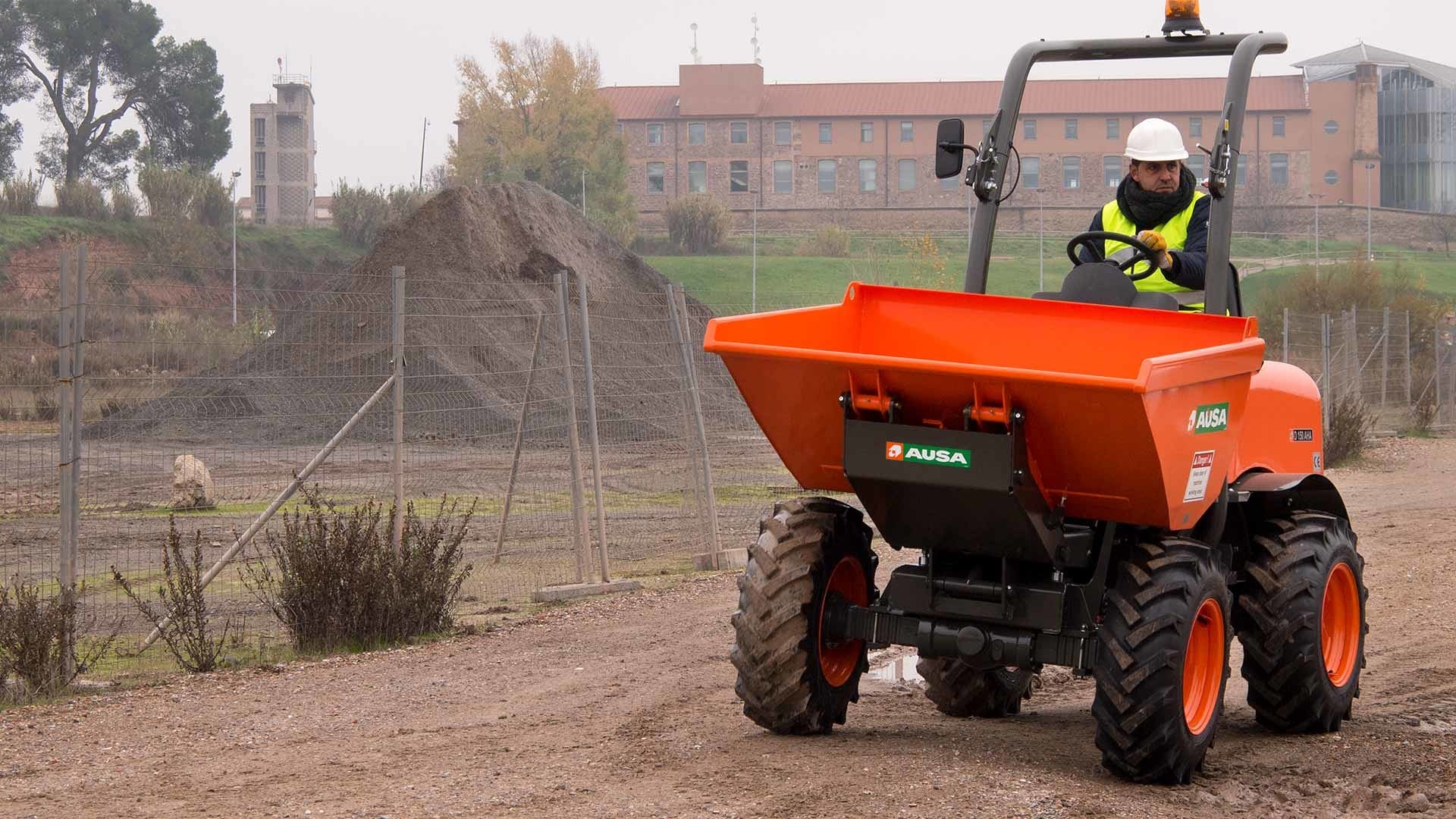

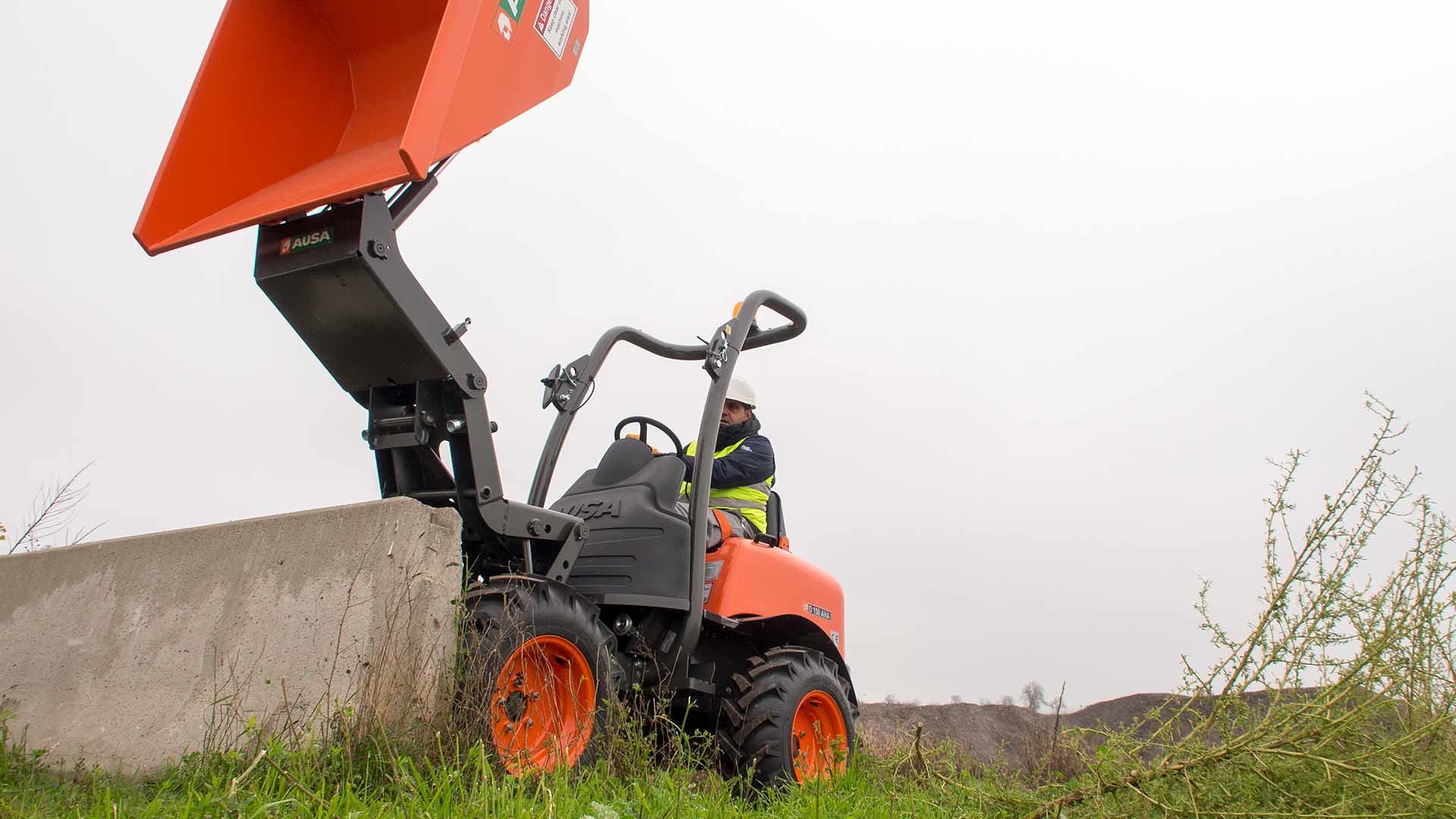

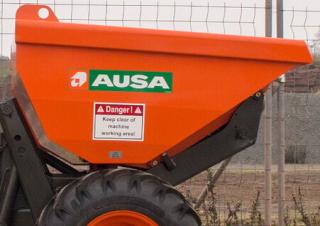

Wheel Dumpers Ausa D 151 AHA
Wheel Dumpers Ausa D 151 AHA
Wheel Dumpers Ausa D 151 AHA
Wheel Dumpers Ausa D 151 AHA
Wheel Dumpers Ausa D 151 AHA
Wheel Dumpers Ausa D 151 AHA
Wheel Dumpers Ausa D 151 AHA
Wheel Dumpers Ausa D 151 AHA
Wheel Dumpers Ausa D 151 AHA
Wheel Dumpers Ausa D 151 AHA

Technical specs - D 151 AHA Ausa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.51 t
Standard tyres
10.0/75-15.3
Net load
1.51 t
Dump capacity
0.84 m³
Dumper type
H
Transport length
3.2 m
Transport width
1.48 m
Transport height
2 m
Travel speed
14 km/h
Loading height
1.27 m
Turning radius outside
3.26 m
Model series
AHA
Engine manuf.
Kubota
Engine type
D1105-E4B
Engine power
15.6 kW
Revolutions at max torque
2400 rpm
Max. torque
71.4/1600 Nm
No. of cylinders
3
Emission level
V

More technical details, like: dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Heated dump body
No
All-wheel drive
Yes
Track
No
Aircondition
No

Download datasheets (PDF)

Ausa D 151 AHA FAQ

When was the Ausa D 151 AHA manufactured?

The Ausa D 151 AHA was first produced in 2019.

How much does the Ausa D 151 AHA weigh?

The Ausa D 151 AHA weighs 1.51 tons.

What are the transport dimensions of the Ausa D 151 AHA wheel dumper?

The Ausa D 151 AHA has transport dimensions of 3.2 meters in length, 1.48 meters in width, and 2 meters in height.

What is the travel speed of the Ausa D 151 AHA wheel dumper?

The Ausa D 151 AHA wheel dumper has a travel speed of 14 km/h.

What are the standard tyres specifications for the Ausa D 151 AHA wheel dumper?

The Ausa D 151 AHA wheel dumper comes equipped with standard tyres sized 10.0/75-15.3.

What is the outside turning radius of the Ausa D 151 AHA wheel dumper?

The Ausa D 151 AHA has an outside turning radius of 3.26 meters.

What is the material handling capacity of the Ausa D 151 AHA wheel dumper?

The Ausa D 151 AHA wheel dumper has a net load capacity of 1.51 tons and a dump capacity of 0.84 cubic meters.
