D 1001 APG Ausa D 1001 APG Specifications & Technical Data (2020—2026)

Weight: 5.185t – Standard tyres: 500/60-22.5 – Net load: 10t – Dump capacity: 3.9m³ – Dumper type: D – Transport length: 5.02m

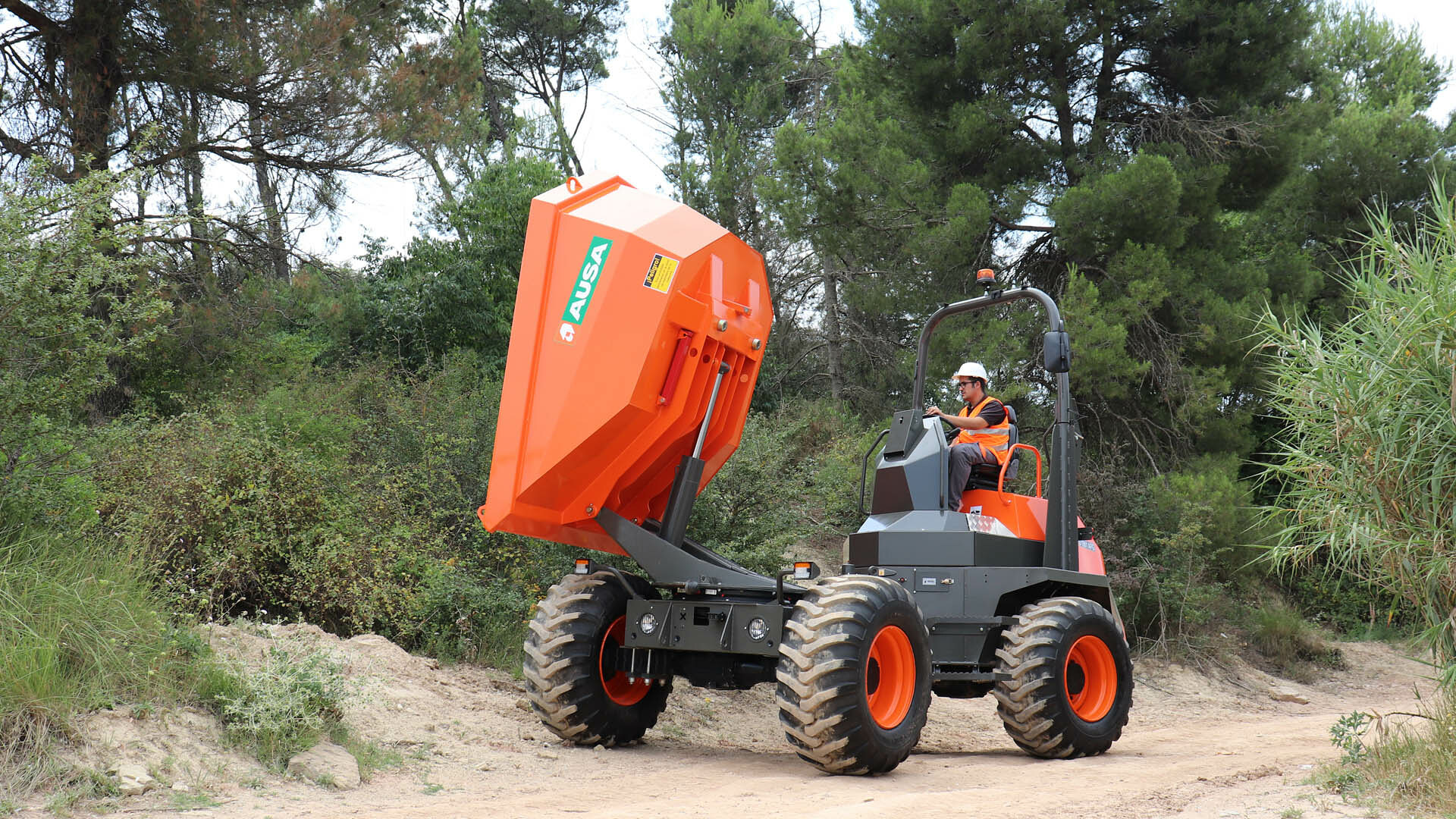

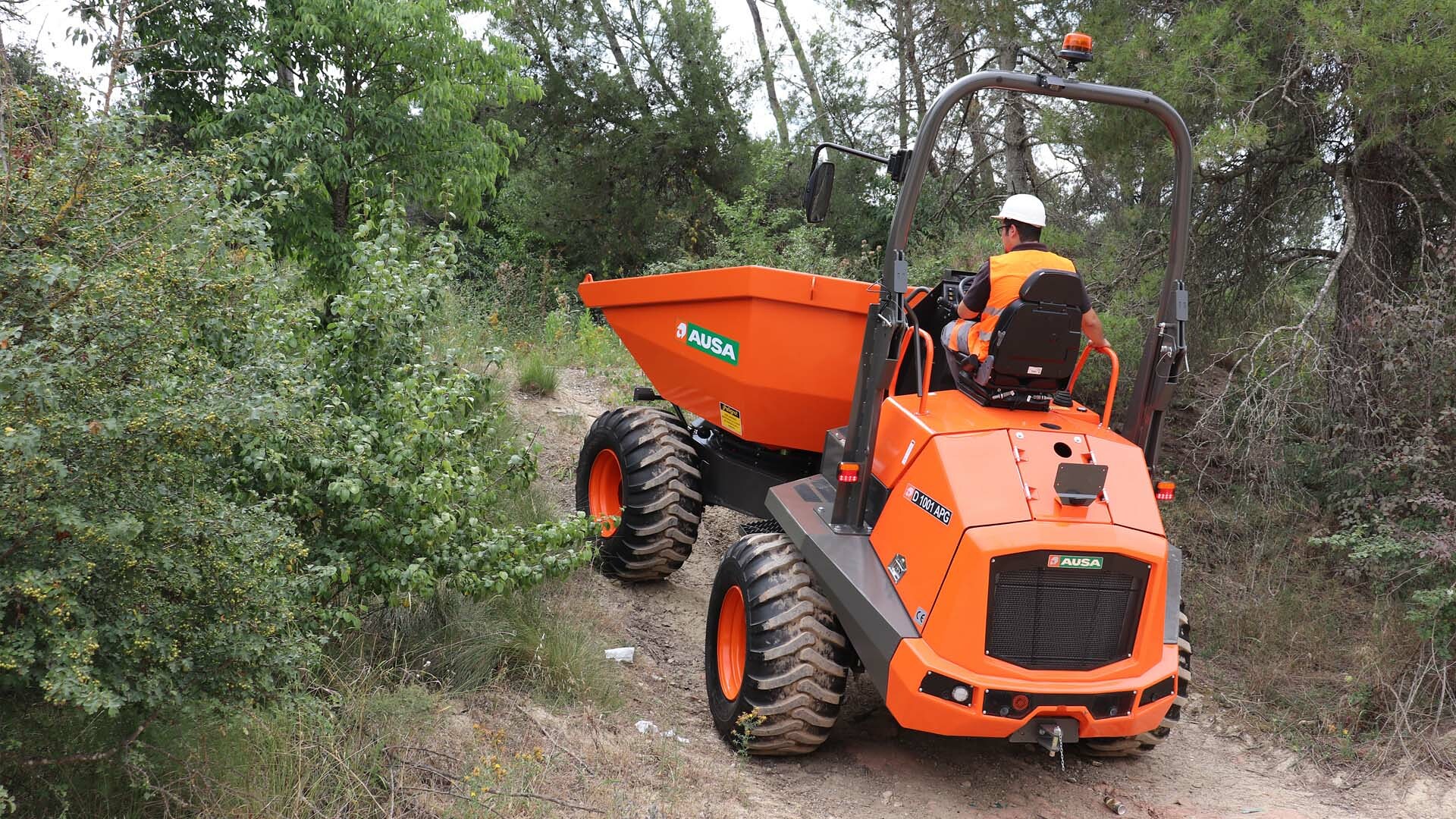

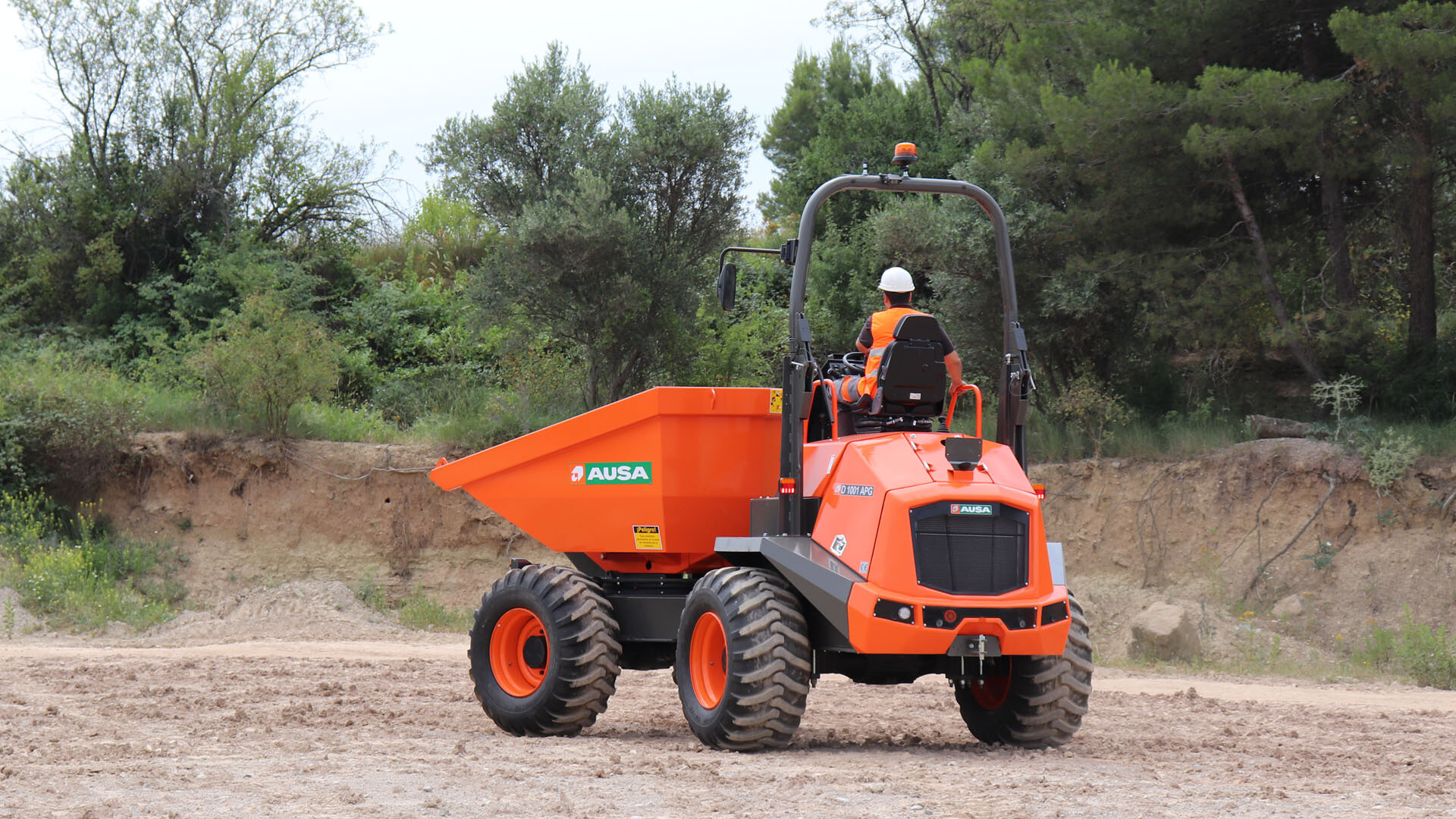

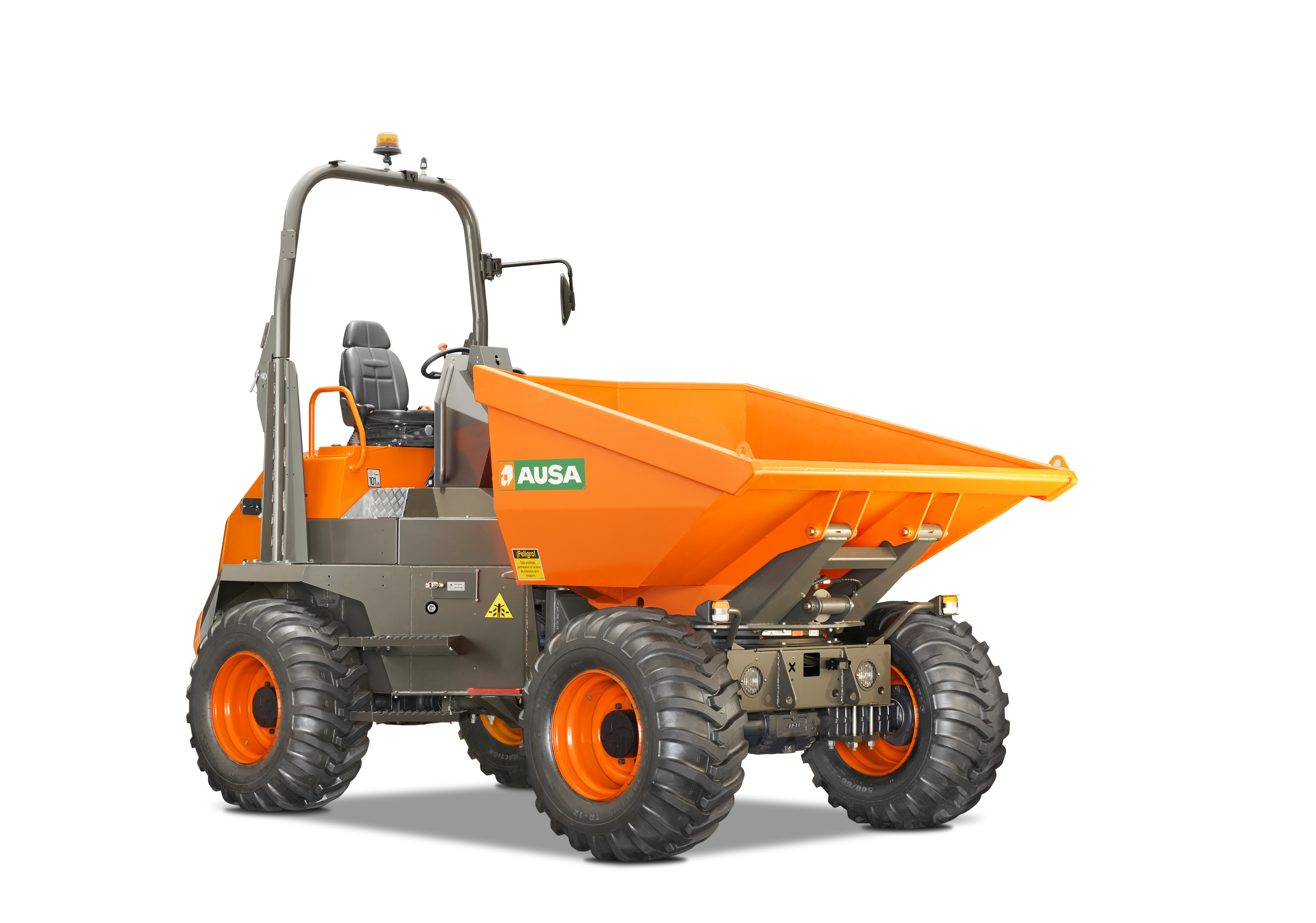

D 1001 APG

Years of manufacture: 2020—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - D 1001 APG Ausa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.185 t

Standard tyres: 500/60-22.5

Net load: 10 t

Dump capacity: 3.9 m³

Dumper type: D

Transport length: 5.02 m

Transport width: 2.41 m

Transport height: 3.64 m

Travel speed: 25 km/h

Loading height: 1.82 m

Turning radius outside: 6.287 m

Model series: APG

Engine manuf.: Deutz

Engine type: TCD3.6 L4 HT

Engine power: 55.4 kW

Displacement: 3.6 l

Revolutions at max torque: 2200 rpm

Max. torque: 405/1300 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: Yes
Heated dump body: Yes
All-wheel drive: Yes
Track: No
Aircondition: Yes

Download datasheets (PDF)

Ausa D 1001 APG FAQ

When was the Ausa D 1001 APG manufactured?

The Ausa D 1001 APG was first produced in 2020.

How much does the Ausa D 1001 APG wheel dumper weigh?

The Ausa D 1001 APG wheel dumper weighs 5.19 tons.

What are the transport dimensions of the Ausa D 1001 APG?

The Ausa D 1001 APG has a transport length of 5.02 meters, a transport width of 2.41 meters, and a transport height of 3.64 meters.

What is the travel speed of the Ausa D 1001 APG wheel dumper?

The Ausa D 1001 APG has a travel speed of 25 km/h.

What are the undercarriage specifications of the Ausa D 1001 APG?

The Ausa D 1001 APG is equipped with standard tyres sized 500/60-22.5.

What is the turning radius of the Ausa D 1001 APG wheel dumper?

The Ausa D 1001 APG has an outside turning radius of 6.287 meters.

What is the material handling capacity of the Ausa D 1001 APG wheel dumper?

The Ausa D 1001 APG wheel dumper has a net load capacity of 10 tons and a dump capacity of 3.9 cubic meters.
