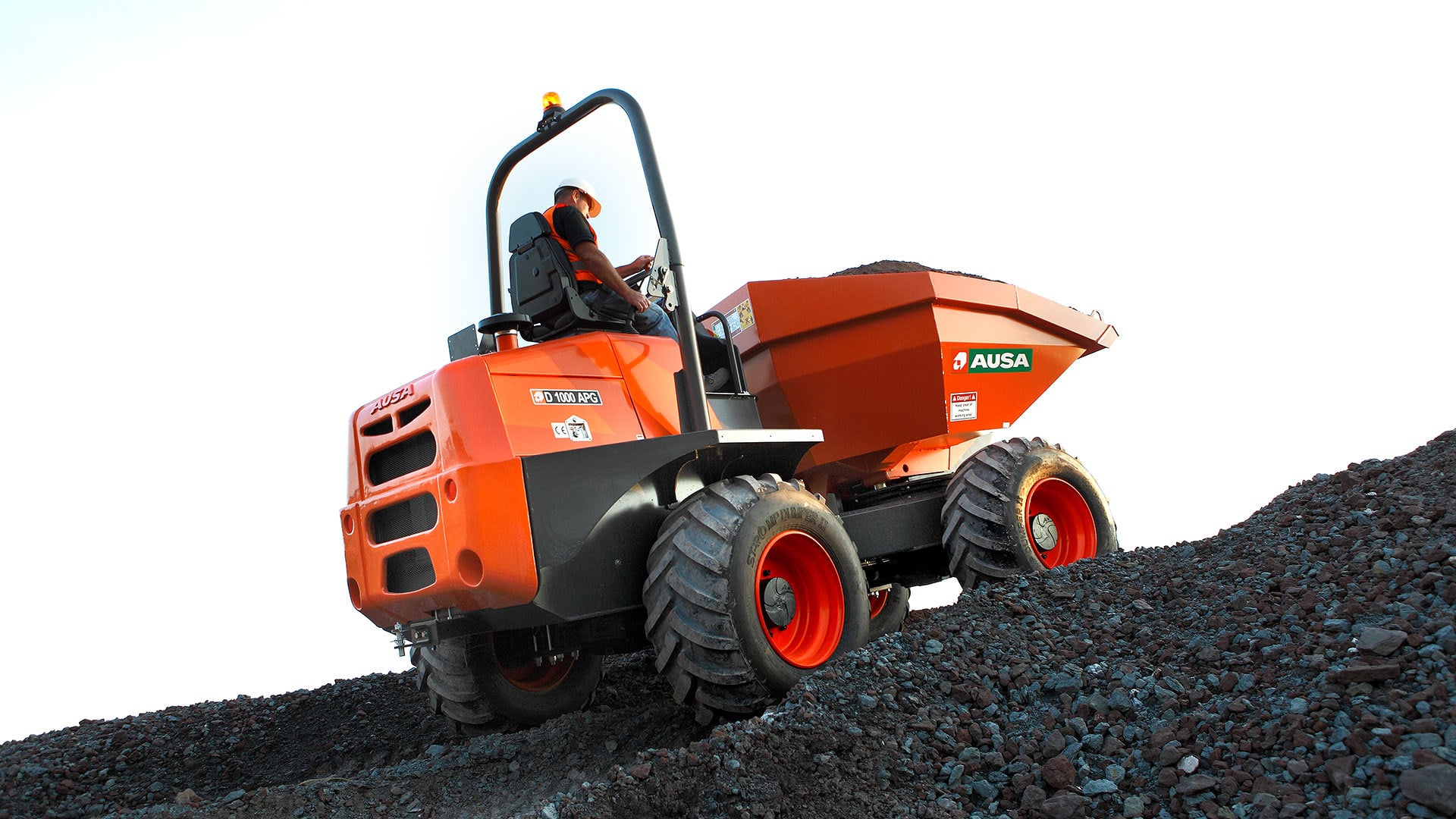

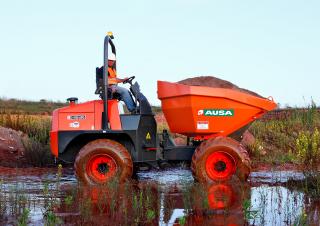

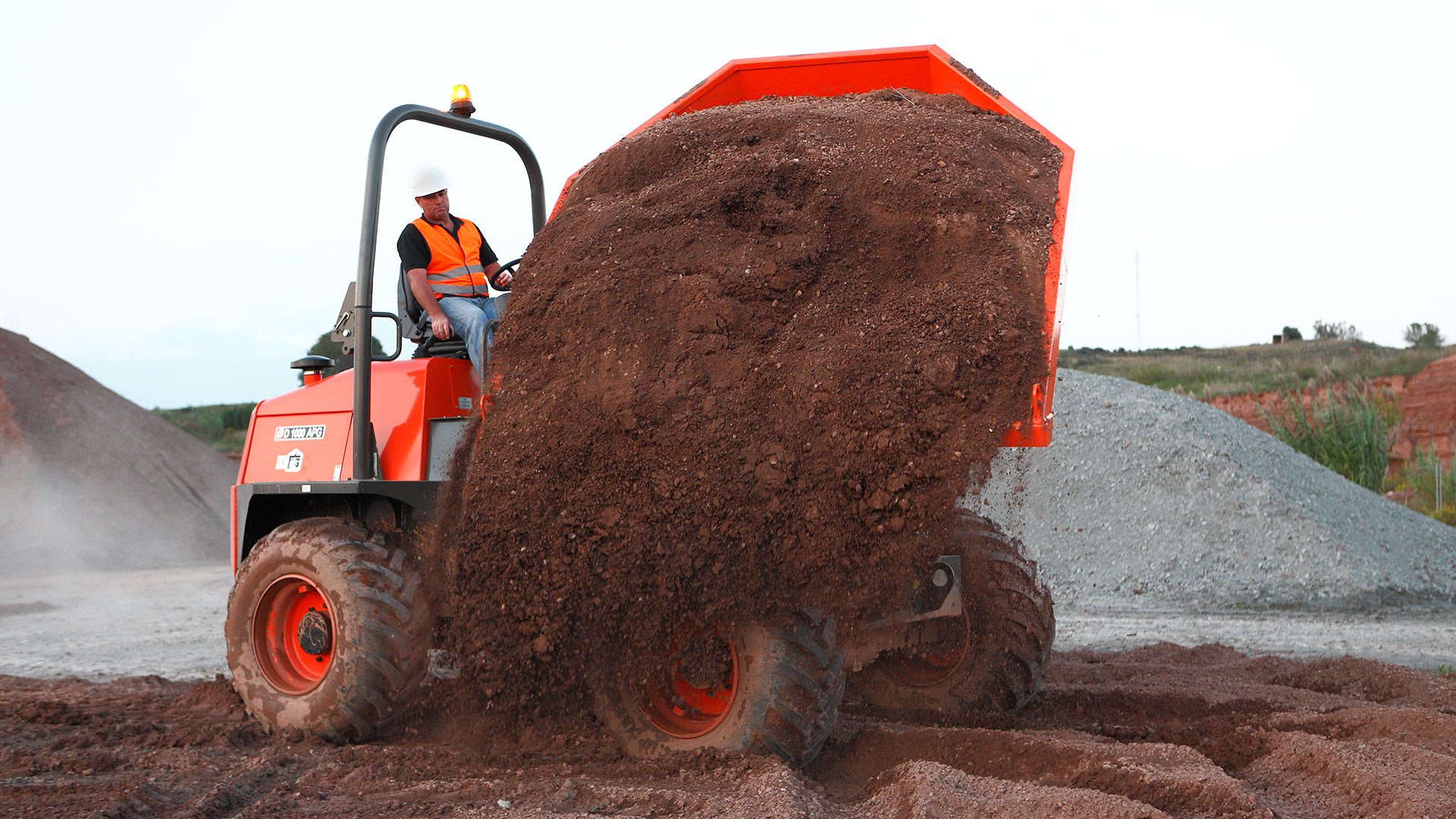

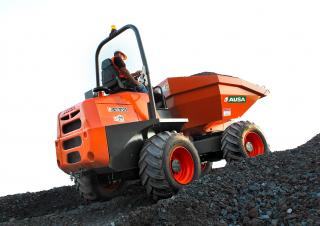

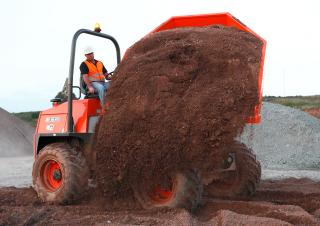

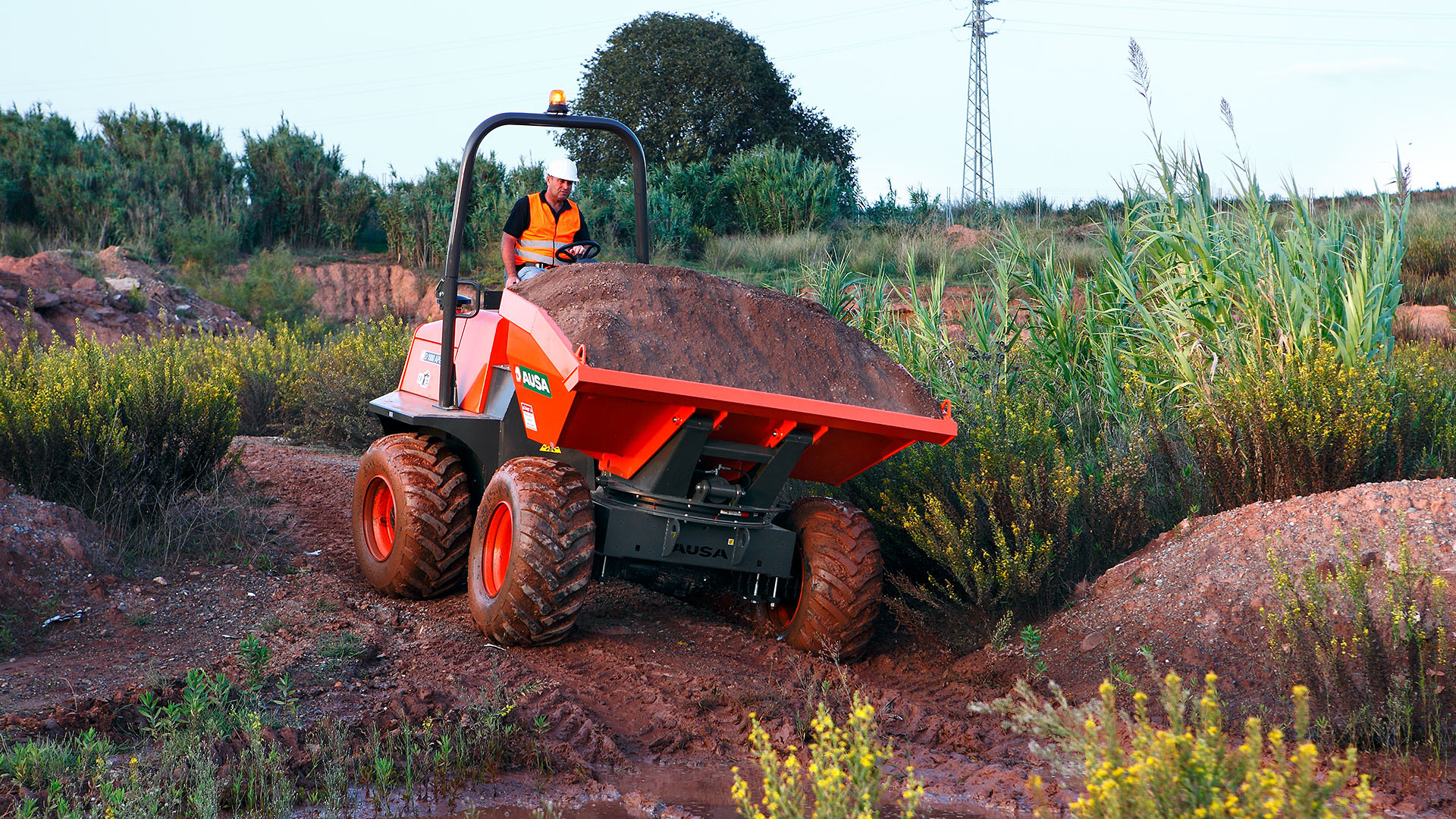

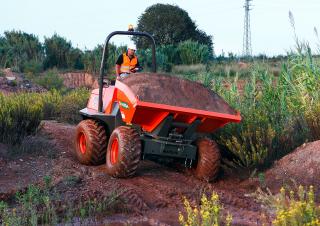

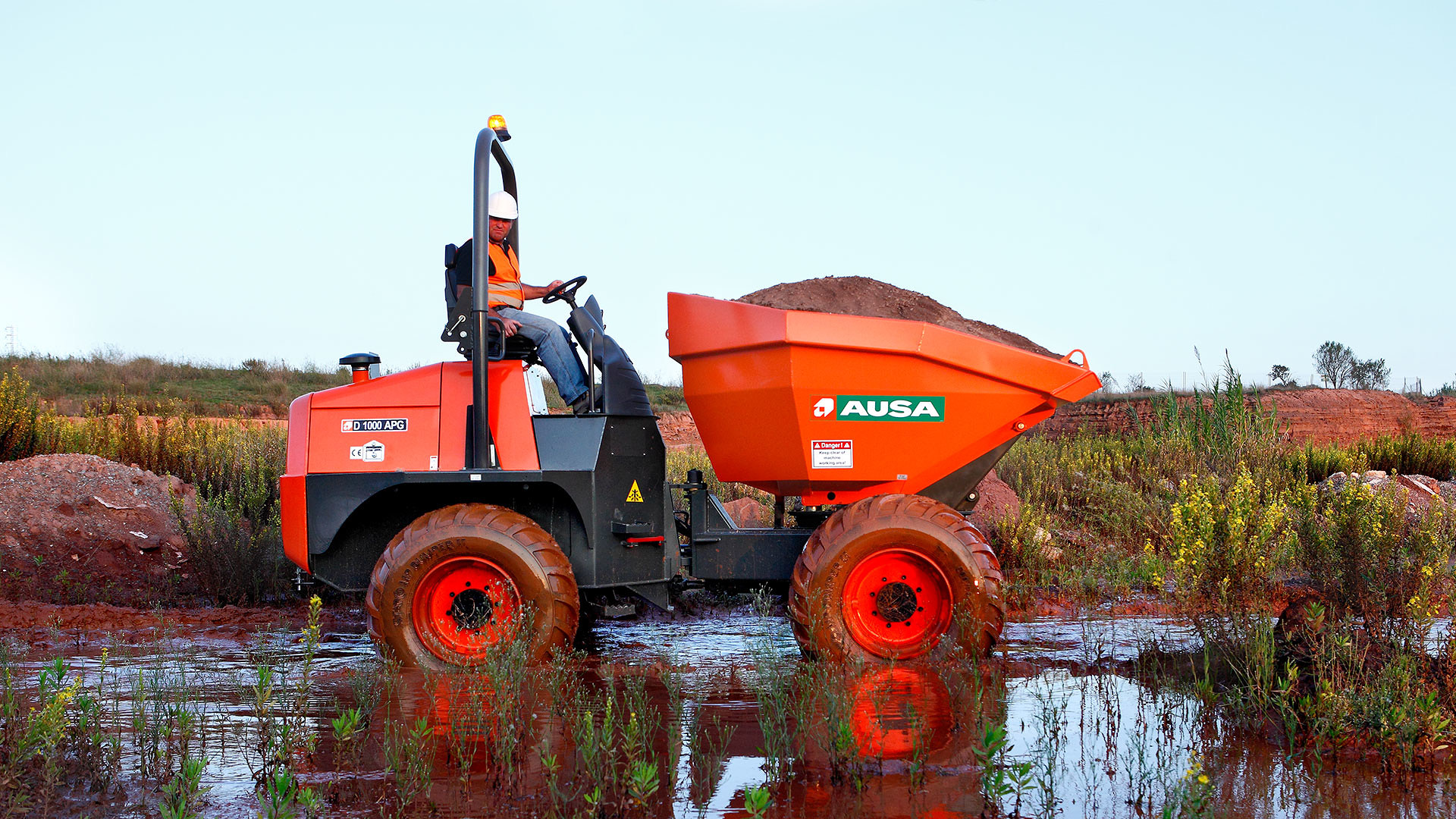

D 1000 APG Plus Ausa D 1000 APG Plus Specifications & Technical Data (2019—2021)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - D 1000 APG Plus Ausa
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 5 t
- Standard tyres
- 500/60-22.5
- Net load
- 10 t
- Dump capacity
- 4.79 m³
- Dumper type
- D
- Transport length
- 5.015 m
- Transport width
- 2.425 m
- Transport height
- 3.515 m
- Travel speed
- 32 km/h
- Loading height
- 1.715 m
- Turning radius outside
- 5.95 m
- Model series
- APG
- Engine manuf.
- Deutz
- Engine type
- TCD3.6 L4
- Engine power
- 55.4 kW
- No. of cylinders
- 4
- Emission level
- III B
More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Heated dump body
-
Yes
- All-wheel drive
-
Yes
- Track
-
No
- Aircondition
-
Yes
