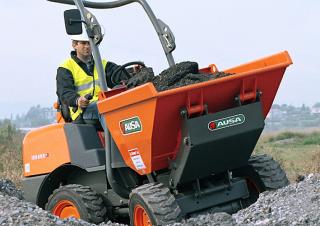

Ausa D 100 AHA Specifications & Technical Data (2006-2019)

Technical specs - D 100 AHA Ausa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.31 t

Standard tyres: 27x8.50-15

Net load: 1 t

Dump capacity: 0.6 m³

Dumper type: H

Transport length: 3 m

Transport width: 1.118 m

Transport height: 3 m

Travel speed: 15 km/h

Loading height: 1.23 m

Model series: AHA

Engine manuf.: Kubota

Engine type: D1105

Engine power: 18 kW

Displacement: 1.123 l

Revolutions at max torque: 3000 rpm

No. of cylinders: 3

Emission level: III B

More technical details, like: turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke, model type, driveline, rops, fops, telematics available, engine manufacturer, engine model, rated speed...

More technical details, like: turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke, model type, driveline, rops, fops, telematics available, engine manufacturer, engine model, rated speed, engine output, fuel, drive, tyre size - front, tyre size - rear, service type, height over rops, width, overall length, wheelbase, ground clearance, width - front tyres, width - rear tyres, width - skip, skip lip height - untipped, height over skip - untipped, turning radius - outside, chassis articulation, payload - heaped, payload - struck, payload - water, skip payload, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Heated dump body: No
All-wheel drive: Yes
Track: No
Aircondition: No

Download datasheets (PDF)

Ausa D 100 AHA FAQ

When was the Ausa D 100 AHA manufactured?

The Ausa D 100 AHA was manufactured from 2006 to 2019.

How much does the Ausa D 100 AHA weigh?

The Ausa D 100 AHA weighs 1.31 tons.

What are the transport dimensions of the Ausa D 100 AHA wheel dumper?

The Ausa D 100 AHA has a transport length of 3 meters, a transport width of 1.12 meters, and a transport height of 3 meters.

What is the travel speed of the Ausa D 100 AHA wheel dumper?

The Ausa D 100 AHA has a travel speed of 15 km/h.

What are the undercarriage specifications of the Ausa D 100 AHA wheel dumper?

The Ausa D 100 AHA wheel dumper is equipped with standard tyres sized 27x8.50-15.

What is the material handling capacity of the Ausa D 100 AHA wheel dumper?

The Ausa D 100 AHA wheel dumper has a net load capacity of 1 ton and a dump capacity of 0.6 cubic meters.

How much is a Ausa D 100 AHA Wheel dumper (2006u20132019) worth?

The residual value of the Ausa D 100 AHA depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
