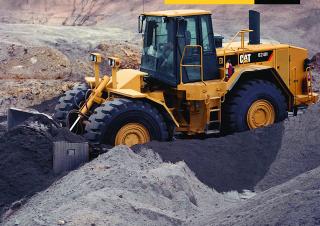

824H Caterpillar 824H Specifications & Technical Data (2004—2015)

Weight: 29t – Transport length: 8.22m – Transport width: 3.7m – Transport height: 3.7m – Travel speed: 36.6km/h – Front blade width: 4.507m

Technical specs - 824H Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29 t
Transport length
8.22 m
Transport width
3.7 m
Transport height
3.7 m
Travel speed
36.6 km/h
Front blade width
4.507 m
Engine manuf.
Caterpillar
Engine type
C15 Acert
Engine power
264 kW
Displacement
15.2 l
Revolutions at max torque
1800 rpm

More technical details, like: blade type, soil pressure, standard tyres, reverse travel speed, transmission type, max. drawbar pull, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level...

More technical details, like: blade type, soil pressure, standard tyres, reverse travel speed, transmission type, max. drawbar pull, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, transmission type, service brake type, height - max, height - top of rops, ground clearance, blade, blade - width, blade - height, blade - dig depth, blade - lift clearance, blade - tilt, steering - differential, fuel tank, blade - capacity, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

Special equipment

Diesel particulate filter
No
Rear ripper
No
Tilt device
No
Aircondition
Yes
