Lectura specs Construction machinery Wheel Dozer Wheel Dozer Caterpillar Caterpillar 814F Series 2 specifications

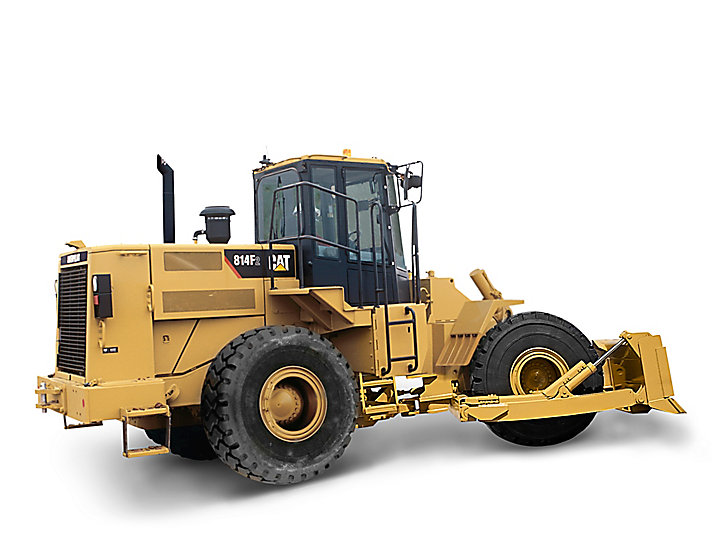

Caterpillar 814F Series 2 Specifications & Technical Data (2007-2023)

Rate this machine now!

Weight: 21.71t – Transport length: 6.88m – Transport height: 3.33m – Travel speed : 31km/h – Front blade width: 3.6m – Model series: 2

Technical specs - 814F Series 2 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 21.71 t
  • Transport length 6.88 m
  • Transport height 3.33 m
  • Travel speed 31 km/h
  • Front blade width 3.6 m
  • Model series 2
  • Engine manuf. Caterpillar
  • Engine type C9 Acert
  • Engine power 189 kW
  • Displacement 8.8 l
  • No. of cylinders 6
  • Cylinder bore x stroke 112x149 mm
  • Emission level Tier 3

More technical details, like: average fuel consumption, fuel consumption range (min - max), transport width, blade type, soil pressure, standard tyres, reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Special equipment

  • Diesel particulate filter
  • Rear ripper
  • Tilt device
  • Aircondition
