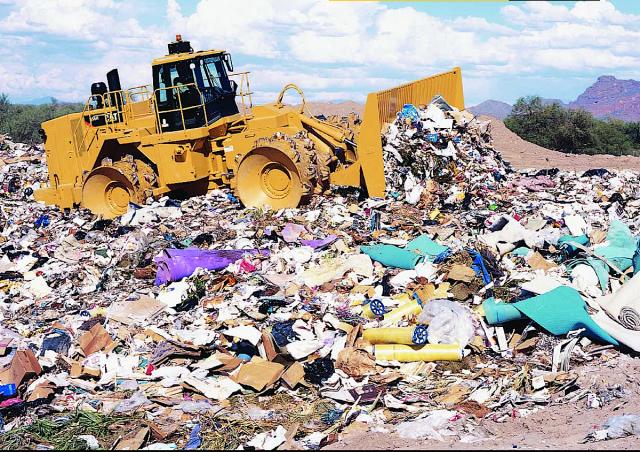

836H Caterpillar 836H Specifications & Technical Data (2006—2019)
Technical specs - 836H Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 53.68 t
- Transport length
- 10.18 m
- Transport width
- 4.28 m
- Transport height
- 4.55 m
- Travel speed
- 10.9 km/h
- Turning radius outside
- 8.74 m
- Front blade width
- 5.19 m
- Engine manuf.
- Caterpillar
- Engine type
- C18 Acert
- Engine power
- 390 kW
- Displacement
- 18.1 l
- Cylinder bore x stroke
- 145x183 mm
- Emission level
- Tier 3
More technical details, like: model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.
Basic model with ROPS cabin and blade
Special equipment
- Diesel particulate filter
-
No
- Bucket
-
No
- Aircondition
-
No
