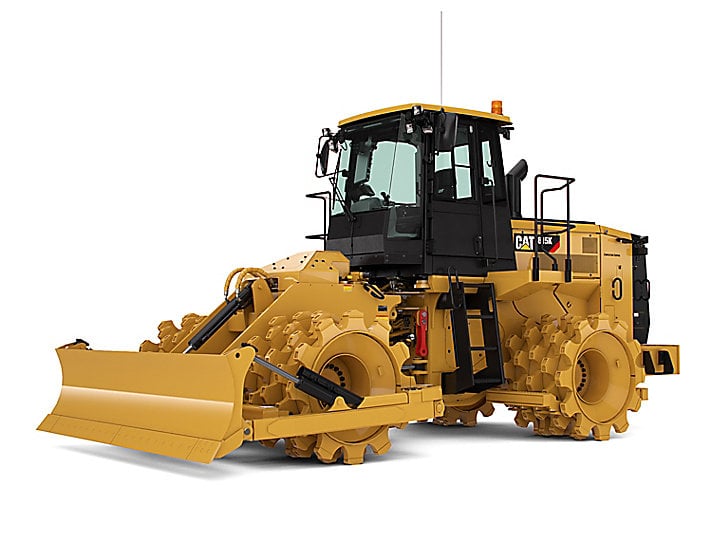

Caterpillar 815K
- Weight:
- 22.386/22.108 t
- Transport length:
- 7.157 m
- Transport width:
- 3.243 m
- Transport height:
- 3.946 m
815K Caterpillar 815K Specifications & Technical Data (2019—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - 815K Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 22.386/22.108 t
- Transport length
- 7.157 m
- Transport width
- 3.243 m
- Transport height
- 3.946 m
- Travel speed
- 21.2 km/h
- Front blade width
- 3.761 m
- Engine manuf.
- Caterpillar
- Engine type
- C7.1 Acert
- Engine power
- 185 kW
- Displacement
- 7.01 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 1219 Nm
- Cylinder bore x stroke
- 105x135 mm
- Emission level
- Tier 4 Final/EU Stage IV / Tier 3/Stage IIIA
More technical details, like: turning radius outside, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.
Basic model with ROPS cabin and blade
Special equipment
- Diesel particulate filter
-
No
- Bucket
-
No
- Aircondition
-
Yes
