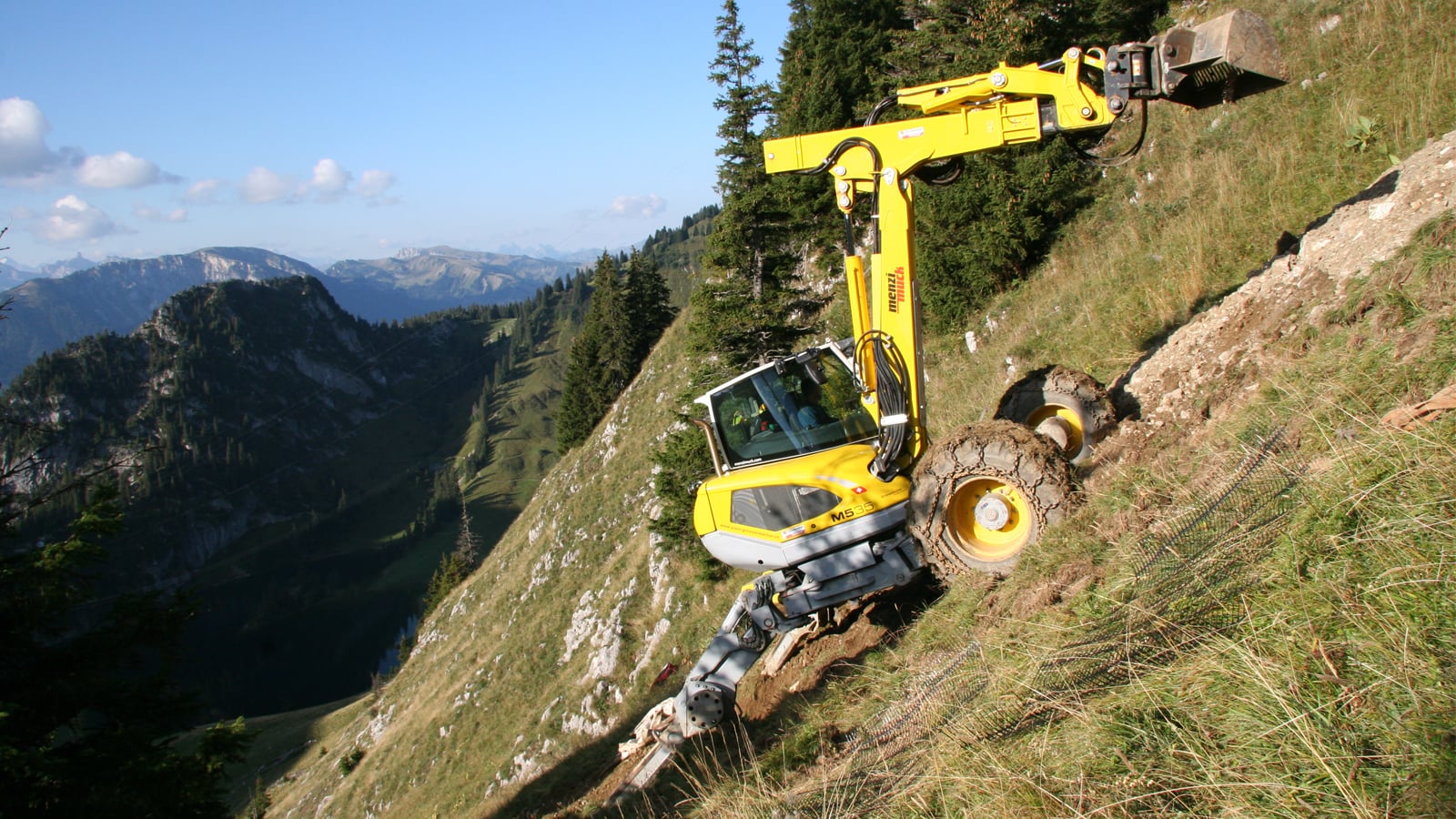

M535 Menzi excavator specs & dimensions (2013 - 2019)
.jpg)
Technical specs - M535 Menzi
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 11.6 t
- Standard tyres
- 600/50-22.5
- Bucket capacity
- 0.4 m³
- Transport length
- 5.18 m
- Transport width
- 2.37 m
- Transport height
- 2.55 m
- Max. Reach horizontal
- 8.21 m
- Dredging depth
- 5.47 m
- Tear-out force
- 69 kN
- Bucket width
- 0.6 m
- Model series
- M
- Engine manuf.
- Deutz
- Engine type
- TCD4.1 L4
- Engine power
- 115 kW
- Displacement
- 4.1 l
- Revolutions at max torque
- 1600 rpm
- No. of cylinders
- 4
- Emission level
- 3b
More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model incl. ROPS cabin, standard boom and standard bucket
Special equipment
- Overload alert
-
Yes
- Central lubrication
-
No
- Aircondition
-
No
