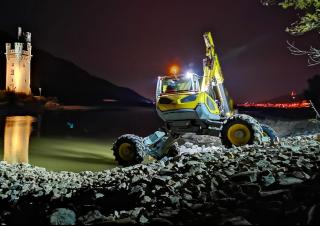

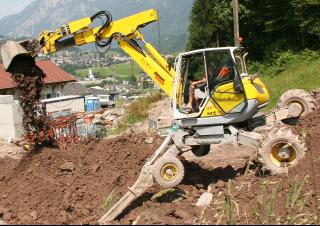

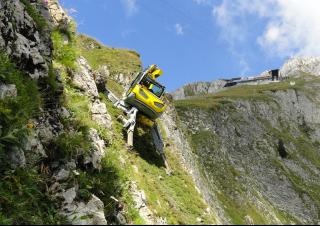

M520 Menzi excavator specs & dimensions (2018 - 2020)

Weight: 10.7t – Standard tyres: 600/50-22.5 – Bucket capacity: 0.4m³ – Transport length: 5.83m – Transport width: 2.23m – Transpor…

Weight: 10.7t – Standard tyres: 600/50-22.5 – Bucket capacity: 0.4m³ – Transport length: 5.83m – Transport width: 2.23m – Transport height: 2.55m

Check out detailed specifications, information and technical data for Menzi M520 excavator manufactured between 2018 - 2020. Get more in-depth insight with Menzi M520 digger specifications. See information, like: Weight: 10.7t – Standard tyres: 600/50-22.5 – Bucket capacity: 0.4m³ – Transport length: 5.83m – Transport width: 2.23m – Transport height: 2.55m and more.

Technical specs - M520 Menzi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.7 t
Standard tyres
600/50-22.5
Bucket capacity
0.4 m³
Transport length
5.83 m
Transport width
2.23 m
Transport height
2.55 m
Max. Reach horizontal
8.21 m
Dredging depth
5.47 m
Tear-out force
69 kN
Bucket width
0.6 m
Model series
M
Engine manuf.
Deutz
Engine type
TCD4.1 L4
Engine power
115 kW
Displacement
4.04 l
Revolutions at max torque
1500 rpm
Max. torque
609/1500 Nm
No. of cylinders
4
Cylinder bore x stroke
101x126 mm
Emission level
EU V

Basic model incl. ROPS cabin, standard boom and standard bucket

Special equipment

Overload alert
Yes
Central lubrication
No
Aircondition
No
