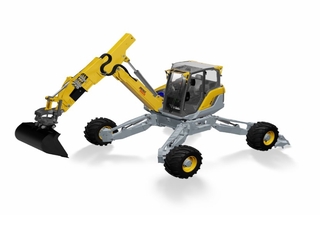

M445x Menzi excavator specs & dimensions (2023 - 2026)

Weight: 12t – Standard tyres: 600/50-22.5 – Bucket capacity: 0.4m³ – Transport length: 5.7m – Transport width: 2.34m – Transport h…

Weight: 12t – Standard tyres: 600/50-22.5 – Bucket capacity: 0.4m³ – Transport length: 5.7m – Transport width: 2.34m – Transport height: 2.55m

Check out detailed specifications, information and technical data for Menzi M445x excavator manufactured between 2023 - 2026. Get more in-depth insight with Menzi M445x digger specifications. See information, like: Weight: 12t – Standard tyres: 600/50-22.5 – Bucket capacity: 0.4m³ – Transport length: 5.7m – Transport width: 2.34m – Transport height: 2.55m and more.

Technical specs - M445x Menzi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12 t
Standard tyres
600/50-22.5
Bucket capacity
0.4 m³
Transport length
5.7 m
Transport width
2.34 m
Transport height
2.55 m
Max. Reach horizontal
7.785 m
Dredging depth
5.5 m
Tear-out force
77 kN
Bucket width
0.6 m
Model series
M
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
105 kW
Displacement
3.62 l
Revolutions at max torque
1600 rpm
Max. torque
550/1600 Nm
No. of cylinders
4
Cylinder bore x stroke
98x120 mm
Emission level
EU V

Basic model incl. ROPS cabin, standard boom and standard bucket

Special equipment

Overload alert
Yes
Central lubrication
Yes
Aircondition
Yes
