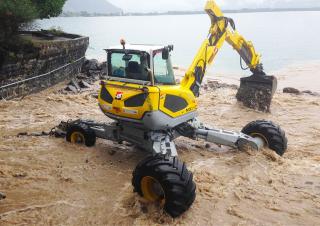

Menzi M320
- Weight:
- 9.4 t
- Standard tyres:
- 600/50-22.5
- Bucket capacity:
- 0.4 m³
- Transport length:
- 5.28 m
M320 Menzi excavator specs & dimensions (2020 - 2023)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - M320 Menzi
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 9.4 t
- Standard tyres
- 600/50-22.5
- Bucket capacity
- 0.4 m³
- Transport length
- 5.28 m
- Transport width
- 2.22 m
- Transport height
- 2.55 m
- Max. Reach horizontal
- 7.77 m
- Dredging depth
- 5 m
- Tear-out force
- 54 kN
- Bucket width
- 0.6 m
- Model series
- M
- Engine manuf.
- Deutz
- Engine type
- TCD3.6 LA
- Engine power
- 100 kW
- Displacement
- 3.6 l
- Revolutions at max torque
- 1600 rpm
- Max. torque
- 500/1600 Nm
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model incl. ROPS cabin, standard boom and standard bucket
Special equipment
- Overload alert
-
Yes
- Central lubrication
-
Yes
- Aircondition
-
Yes
