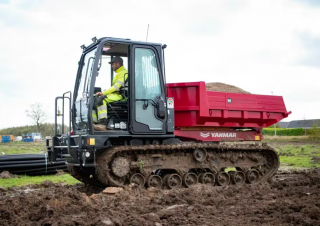

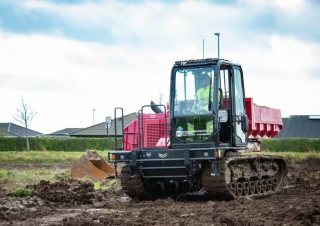

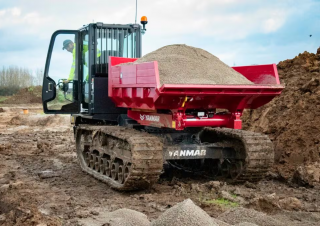

Technical specs - C50R-5A Yanmar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 6.015 t
- Transport length
- 4.54 m
- Transport width
- 2.2 m
- Transport height
- 2.73 m
- Net load
- 3.8 t
- Driver protection
- Kb
- Travel speed
- 7 km/h
- Track width
- 450 mm
- Loading height
- 1.38 m
- Model series
- C
- Engine manuf.
- Yanmar
- Engine type
- 4TNV94FHT
- Engine power
- 83.2 kW
- Displacement
- 3.053 l
- Revolutions at max torque
- 2500 rpm
- Max. torque
- 410 Nm
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: dump capacity, soil pressure, turning radius outside, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Track adjustment
-
No
- Bucket
-
No
- Heated dump body
-
No
- Electric starter
-
No
- Trough liftable
-
No
- Aircondition
-
No
Download datasheets (PDF)
Yanmar C50R-5A FAQ
How much does the Yanmar C50R-5A weigh?
What are the transport dimensions of the Yanmar C50R-5A tracked dumper?
What is the travel speed of the Yanmar C50R-5A tracked dumper?
What is the track width of the Yanmar C50R-5A tracked dumper?
What is the material handling capacity of the Yanmar C50R-5A tracked dumper?
What operator safety and support features does the Yanmar C50R-5A have?
How much is a Yanmar C50R-5A Tracked dumper (2025u20132025) worth?
