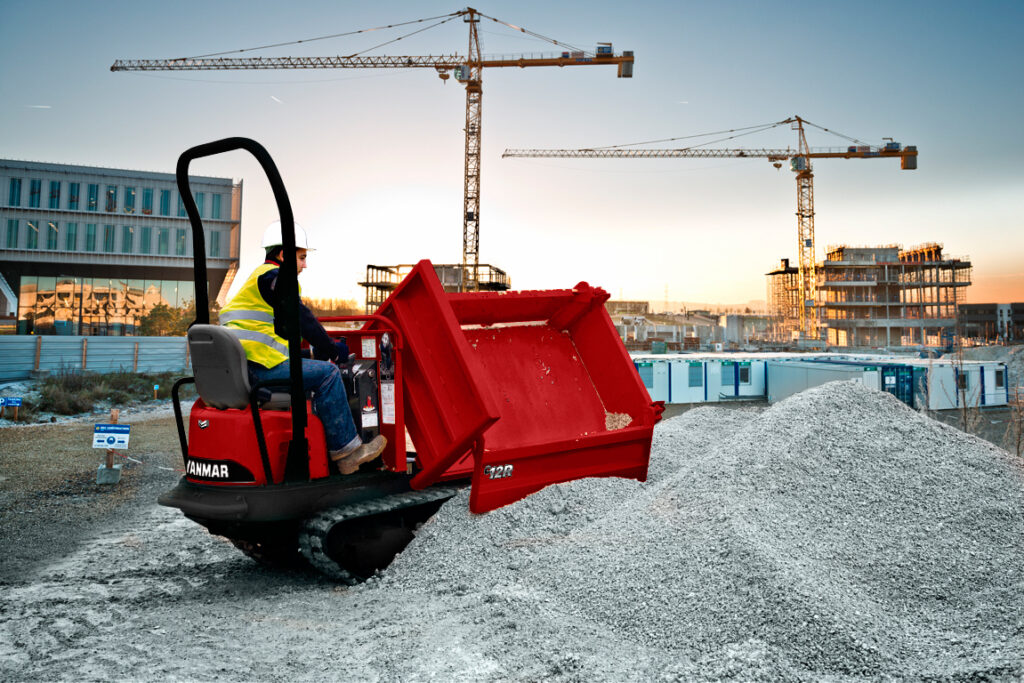

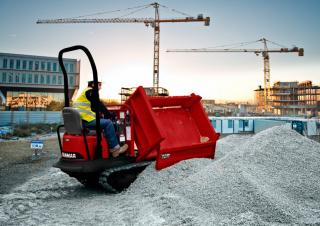

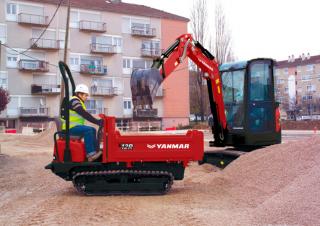

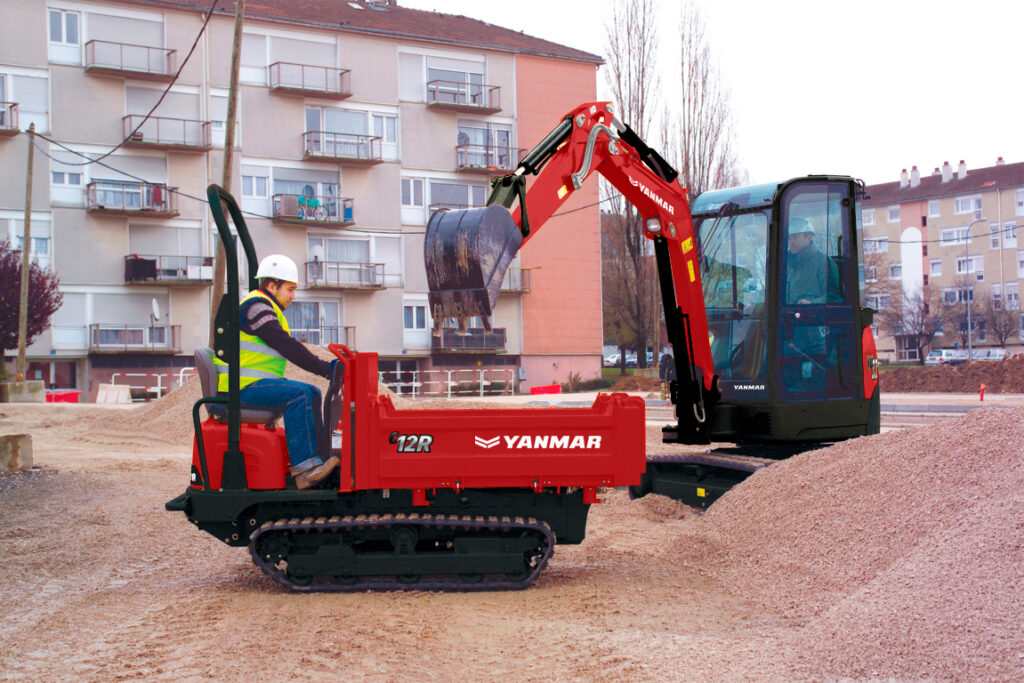

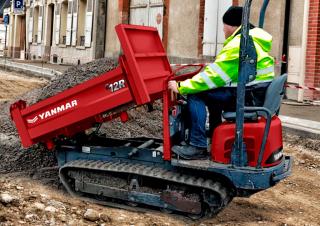

C12R-C Yanmar C12R-C Specifications & Technical Data (2021—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - C12R-C Yanmar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.1 t
- Transport length
- 1.47 m
- Transport width
- 0.95 m
- Transport height
- 1.47 m
- Net load
- 1.15 t
- Dump capacity
- 0.52 m³
- Driver protection
- Ü
- Travel speed
- 5.5 km/h
- Track width
- 230 mm
- Soil pressure
- 0.41 kg/cm²
- Model series
- C
- Engine manuf.
- Yanmar
- Engine type
- 402J-05 IG84557R
- Engine power
- 7.5 kW
- Displacement
- 0.507 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 30.8 Nm
More technical details, like: loading height, turning radius outside, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Track adjustment
-
No
- Bucket
-
No
- Heated dump body
-
No
- Electric starter
-
No
- Trough liftable
-
No
- Aircondition
-
No
