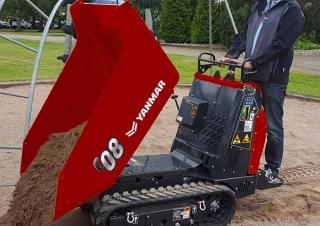

C08-A Power Yanmar C08-A Power Specifications & Technical Data (2023—2026)
.jpg)
.jpg)
Technical specs - C08-A Power Yanmar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 0.57 t
- Transport length
- 1.926 m
- Transport width
- 0.81 m
- Transport height
- 1.336 m
- Net load
- 0.8 t
- Dump capacity
- 0.36 m³
- Travel speed
- 4 km/h
- Track width
- 180 mm
- Soil pressure
- 0.52 kg/cm²
- Loading height
- 0.739 m
- Model series
- C
- Engine manuf.
- Yanmar
- Engine type
- L100V
- Engine power
- 6.8 kW
- Displacement
- 0.435 l
- Max. torque
- 24,3/3100 Nm
- No. of cylinders
- 1
- Emission level
- V
More technical details, like: driver protection, turning radius outside, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Track adjustment
-
No
- Bucket
-
No
- Heated dump body
-
No
- Electric starter
-
Yes
- Trough liftable
-
No
- Aircondition
-
No
Download datasheets (PDF)
Yanmar C08-A Power FAQ
How much does the Yanmar C08-A Power tracked dumper weigh?
What are the transport dimensions of the Yanmar C08-A Power tracked dumper?
What is the travel speed of the Yanmar C08-A Power tracked dumper?
What are the undercarriage specifications of the Yanmar C08-A Power?
What is the material handling capacity of the Yanmar C08-A Power tracked dumper?
