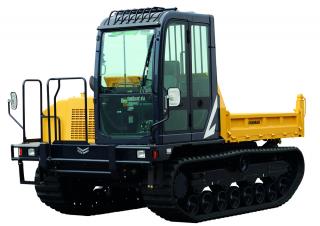

Yanmar C 50 R 5 Specifications & Technical Data (2016-2018)

Technical specs - C 50 R 5 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.79 t

Transport length: 4.54 m

Transport width: 2 m

Transport height: 2.73 m

Net load: 3.8 t

Dump capacity: 2.3 m³

Travel speed: 9.2 km/h

Track width: 450 mm

Model series: C

Engine manuf.: Yanmar

Engine type: 4TNV94CHT-NTBC

Engine power: 83.2 kW

Displacement: 3.053 l

Revolutions at max torque: 2500 rpm

More technical details, like: driver protection, soil pressure, loading height, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops...

More technical details, like: driver protection, soil pressure, loading height, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, engine manufacturer, engine model, rated speed, engine output, engine torque, fuel, drive, track shoe width, height over rops, width, overall length, ground clearance, skip lip height - untipped, skip lip height - tipped, payload - heaped, payload - struck, skip payload, ground bearing pressure, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: No
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

Yanmar C 50 R 5 FAQ

When was the Yanmar C 50 R 5 manufactured?

The Yanmar C 50 R 5 was manufactured from 2016 to 2018.

How much does the Yanmar C 50 R 5 tracked dumper weigh?

The Yanmar C 50 R 5 tracked dumper weighs 5.79 tons.

What are the transport dimensions of the Yanmar C 50 R 5 tracked dumper?

The Yanmar C 50 R 5 has a transport length of 4.54 meters, a transport width of 2 meters, and a transport height of 2.73 meters.

What is the travel speed of the Yanmar C 50 R 5 tracked dumper?

The Yanmar C 50 R 5 tracked dumper has a travel speed of 9.2 km/h.

What is the track width of the Yanmar C 50 R 5's undercarriage?

The Yanmar C 50 R 5 has a track width of 450 mm.

What is the material handling capacity of the Yanmar C 50 R 5 tracked dumper?

The Yanmar C 50 R 5 tracked dumper has a net load capacity of 3.8 tons and a dump capacity of 2.3 cubic meters.

How much is a Yanmar C 50 R 5 Tracked dumper (2016u20132018) worth?

The residual value of the Yanmar C 50 R 5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
