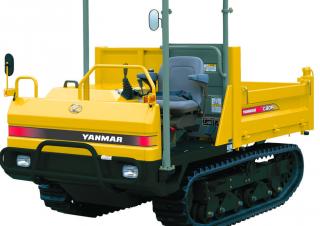

C 30 R 2 B Yanmar C 30 R 2 B Specifications & Technical Data (2005—2017)

Model rating: 9,00 / 10

Weight: 2.36t – Transport length: 3.2m – Transport width: 1.65m – Transport height: 2.25m – Net load: 2.5t – Dump capacity: 1.24m³

C 30 R 2 B

Years of manufacture: 2005—2017

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - C 30 R 2 B Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.36 t

Transport length: 3.2 m

Transport width: 1.65 m

Transport height: 2.25 m

Net load: 2.5 t

Dump capacity: 1.24 m³

Driver protection: FD

Travel speed: 8.2 km/h

Track width: 320 mm

Soil pressure: 0.57 kg/cm²

Model series: C

Engine manuf.: Yanmar

Engine type: 3TNV88

Engine power: 19.1 kW

Displacement: 1.642 l

Revolutions at max torque: 2200 rpm

More technical details, like: loading height, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, engine manufacturer, engine model, rated speed, engine output, engine torque, fuel, drive, track shoe width, service type, height over rops, width, overall length, ground clearance, skip lip height - untipped, skip lip height - tipped, payload - heaped, payload - struck, skip payload, ground bearing pressure, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Buy full specs

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: Yes
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

Yanmar C 30 R 2 B FAQ

When was the Yanmar C 30 R 2 B manufactured?

The Yanmar C 30 R 2 B was manufactured from 2005 to 2017.

How much does the Yanmar C 30 R 2 B weigh?

The Yanmar C 30 R 2 B weighs 2.36 tons.

What are the transport dimensions of the Yanmar C 30 R 2 B tracked dumper?

The Yanmar C 30 R 2 B has a transport length of 3.2 meters, a transport width of 1.65 meters, and a transport height of 2.25 meters.

What is the travel speed of the Yanmar C 30 R 2 B tracked dumper?

The Yanmar C 30 R 2 B tracked dumper has a travel speed of 8.2 km/h.

What are the undercarriage specifications of the Yanmar C 30 R 2 B tracked dumper?

The Yanmar C 30 R 2 B has a track width of 320 mm and a soil pressure of 0.57 kg/cmu00b2.

What is the material handling capacity of the Yanmar C 30 R 2 B tracked dumper?

The Yanmar C 30 R 2 B tracked dumper has a net load capacity of 2.5 tons and a dump capacity of 1.24 cubic meters.

What operator safety and support features does the Yanmar C 30 R 2 B have?

The Yanmar C 30 R 2 B is equipped with a canopy for driver protection.

How much is a Yanmar C 30 R 2 B Tracked dumper (2005u20132017) worth?

The residual value of the Yanmar C 30 R 2 B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
