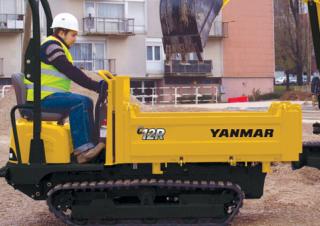

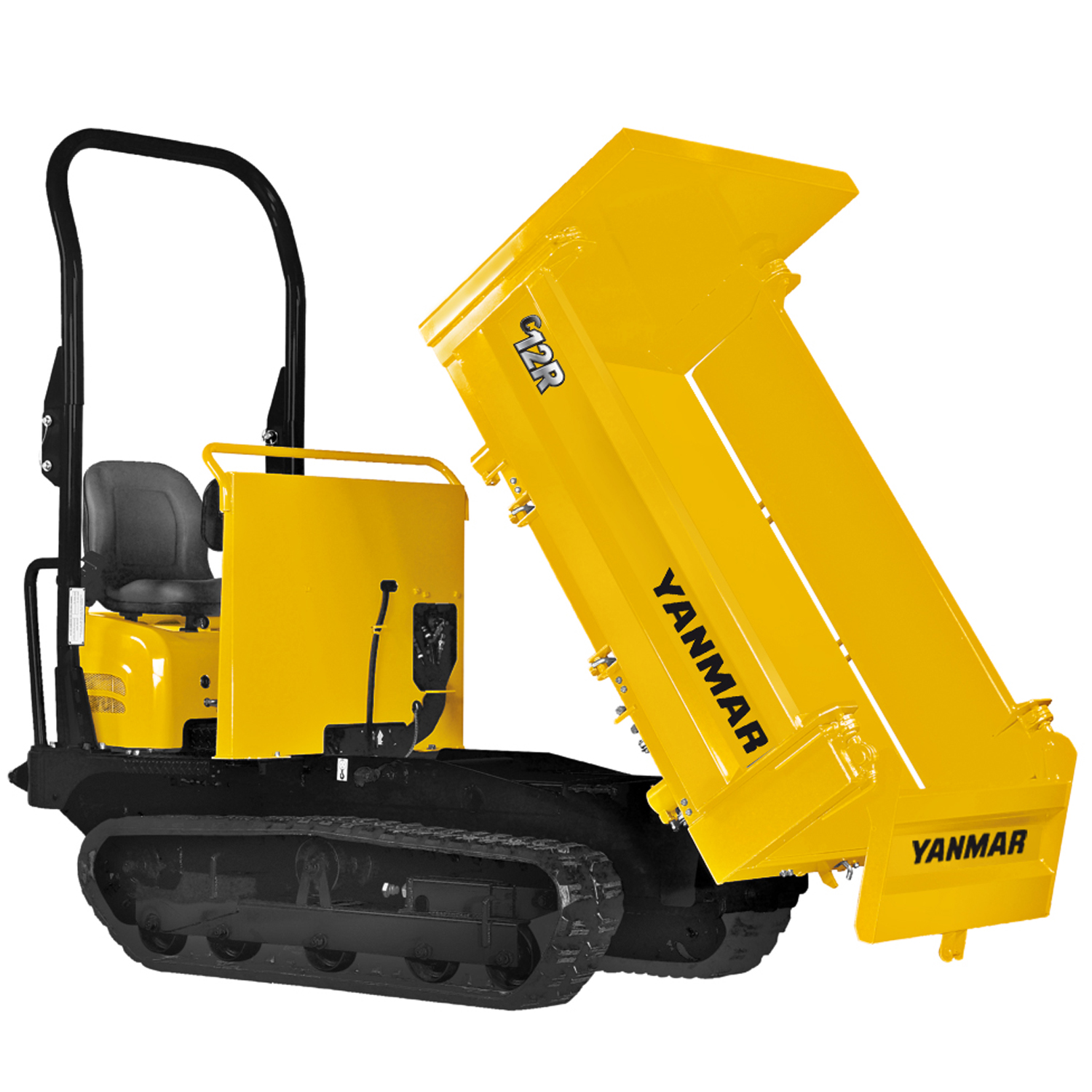

C 12 RB Yanmar C 12 RB Specifications & Technical Data (2005—2021)

Weight: 1.1t – Transport length: 2.65m – Transport width: 0.95m – Transport height: 2.25m – Net load: 1.15t – Dump capacity: 0.52m³

C 12 RB

Years of manufacture: 2005—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - C 12 RB Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.1 t

Transport length: 2.65 m

Transport width: 0.95 m

Transport height: 2.25 m

Net load: 1.15 t

Dump capacity: 0.52 m³

Driver protection: Ü

Travel speed: 5.5 km/h

Track width: 230 mm

Soil pressure: 0.41 kg/cm²

Loading height: 0.635 m

Model series: C

Engine manuf.: Yanmar

Engine type: 2TE67L

Engine power: 7.7 kW

Displacement: 0.507 l

Max. torque: 31.5 Nm

More technical details, like: turning radius outside, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: Yes
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

Yanmar C 12 RB FAQ

When was the Yanmar C 12 RB manufactured?

The Yanmar C 12 RB was manufactured from 2005 to 2021.

How much does the Yanmar C 12 RB weigh?

The Yanmar C 12 RB weighs 1.1 tons.

What are the transport dimensions of the Yanmar C 12 RB tracked dumper?

The Yanmar C 12 RB has transport dimensions of 2.65 meters in length, 0.95 meters in width, and 2.25 meters in height.

What is the travel speed of the Yanmar C 12 RB tracked dumper?

The Yanmar C 12 RB has a travel speed of 5.5 km/h.

What are the undercarriage specifications of the Yanmar C 12 RB?

The Yanmar C 12 RB has a track width of 230 mm and a soil pressure of 0.41 kg/cmu00b2.

What is the material handling capacity of the Yanmar C 12 RB tracked dumper?

The Yanmar C 12 RB tracked dumper has a net load capacity of 1.15 tons, a dump capacity of 0.52 cubic meters, and a loading height of 0.64 meters.

What operator safety features does the Yanmar C 12 RB have?

The Yanmar C 12 RB is equipped with a roll-over bar for driver protection.

How much is a Yanmar C 12 RB Tracked dumper (2005u20132021) worth?

The residual value of the Yanmar C 12 RB depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
