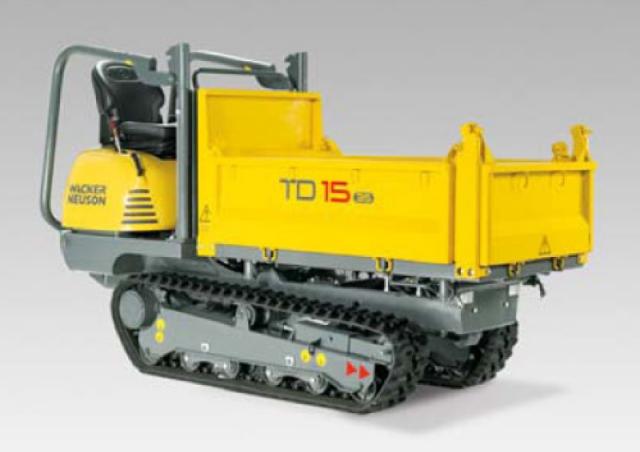

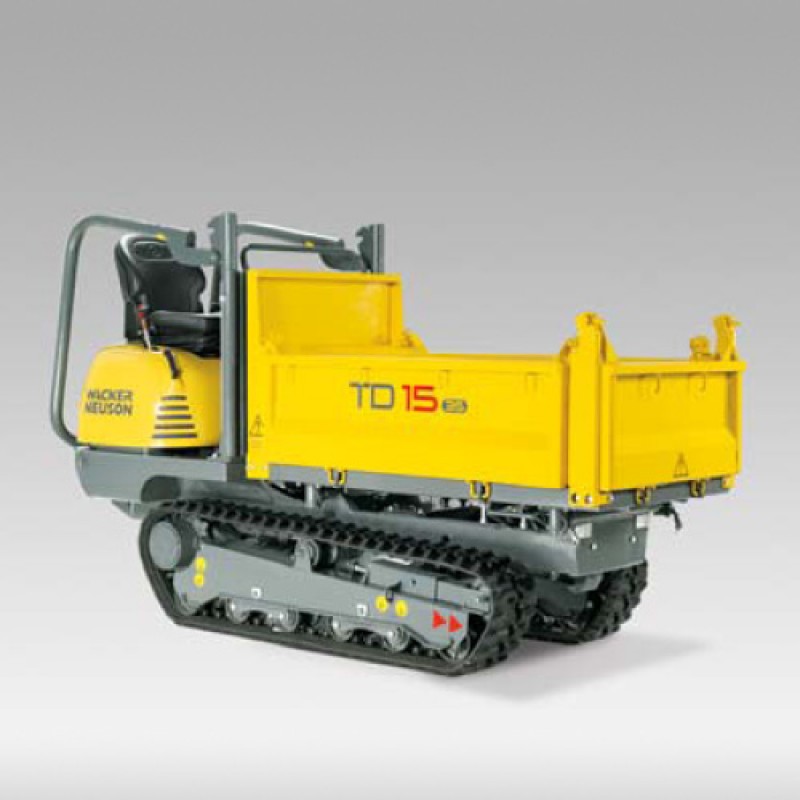

Wacker Neuson TD 15 Specifications & Technical Data (2008-2013)

Technical specs - TD 15 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.25 t

Transport length: 2.8 m

Transport width: 1 m

Transport height: 1.57 m

Net load: 1.5 t

Dump capacity: 0.56 m³

Driver protection: Ü

Travel speed: 7 km/h

Track width: 250 mm

Model series: TD

Engine manuf.: Yanmar

Engine type: 3TNE74

Engine power: 14 kW

More technical details, like: soil pressure, loading height, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: Yes
Trough liftable: No
Aircondition: No

Download datasheets (PDF)

Wacker Neuson TD 15 FAQ

When was the Wacker Neuson TD 15 manufactured?

The Wacker Neuson TD 15 was manufactured from 2008 to 2013.

How much does the Wacker Neuson TD 15 weigh?

The Wacker Neuson TD 15 weighs 1.25 tons.

What are the transport dimensions of the Wacker Neuson TD 15?

The Wacker Neuson TD 15 has a transport length of 2.8 meters, a transport width of 1 meter, and a transport height of 1.57 meters.

What is the travel speed of the Wacker Neuson TD 15?

The Wacker Neuson TD 15 has a travel speed of 7 km/h.

What is the track width of the Wacker Neuson TD 15's undercarriage?

The Wacker Neuson TD 15 has a track width of 250 mm.

What is the material handling capacity of the Wacker Neuson TD 15 tracked dumper?

The Wacker Neuson TD 15 has a net load capacity of 1.5 tons and a dump capacity of 0.56 cubic meters.

What operator safety features does the Wacker Neuson TD 15 have?

The Wacker Neuson TD 15 is equipped with a roll-over bar for driver protection.

How much is a Wacker Neuson TD 15 Tracked dumper (2008u20132013) worth?

The residual value of the Wacker Neuson TD 15 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Wacker Neuson TD 15 overview

Skip

Self Loading Unit

The self loading unit: a highly productive option. Start. Fill. Move. Empty. Deal with greater volumes in a shorter time, thereby substantially accelerating the whole building process from the start.

Operation

The TD9 is simply doubly good:

The tracked dumper TD9 from Wacker Neuson can be controlled to the centimetre on any type of ground thanks to its small dimensions and precise steering. Therefore it can be optimally used in particularly restricted places, where manoeuvrability is of the essence.

Equipment

Euro Pallet Dimensions

The Euro pallet dimensions of the 3 sided tipping skip greatly extends the areas of deployment of the TD18. This gives it additional functions as a specialist for transport tasks in difficult terrain.

Slewing Area

Infinite 180° slewing area for use in restricted areas and where the exact placing of bulk material is particularly important.

TD18s Features

The practical turn/tip skip (TD18s) enables the infinitely adjustable tipping within full 180°, ideal for the exact placing of the bulk material. The 3 sided tipping skip of Euro pallet dimensions is not only extremely versatile, but also turns the TD18 into a fully fledged machine for handling materials. The chassis has "slave qualities" and is controlled hydrostatically. The pendulum rollers enable obstacles and stairs to be negotiated. Maximum ground clearance provides scope for unhindered movement internally and in the open. Full performance is achieved even under difficult conditions.
