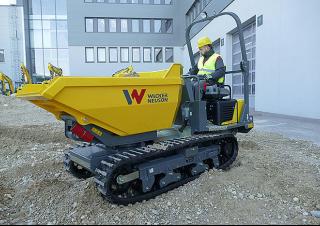

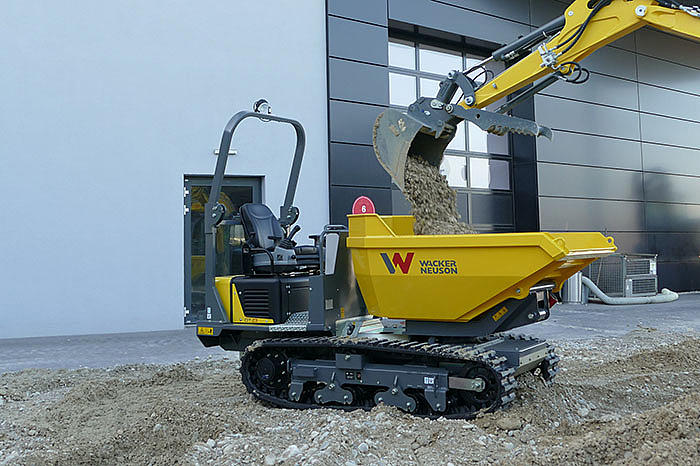

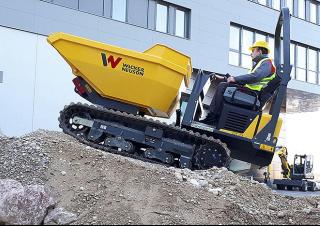

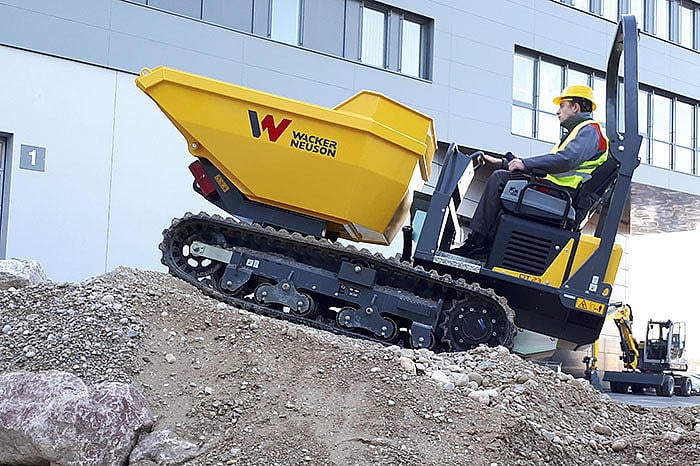

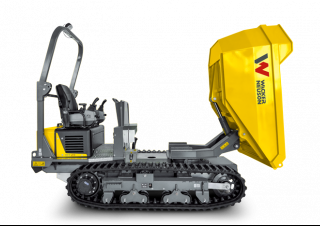

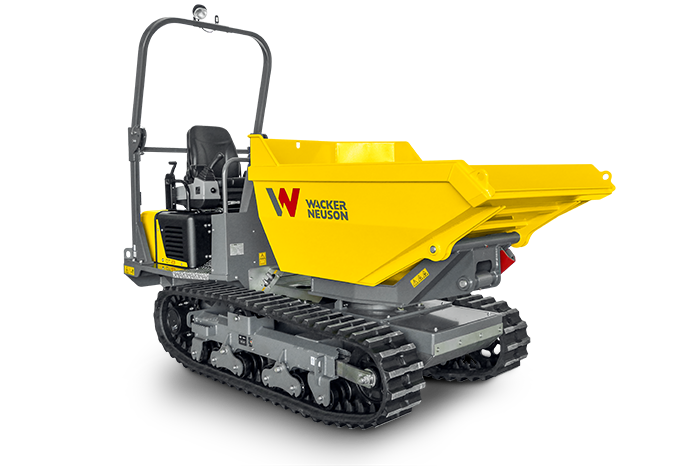

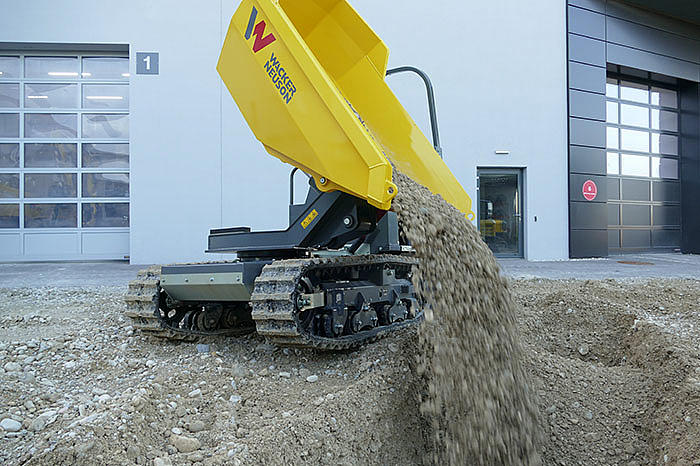

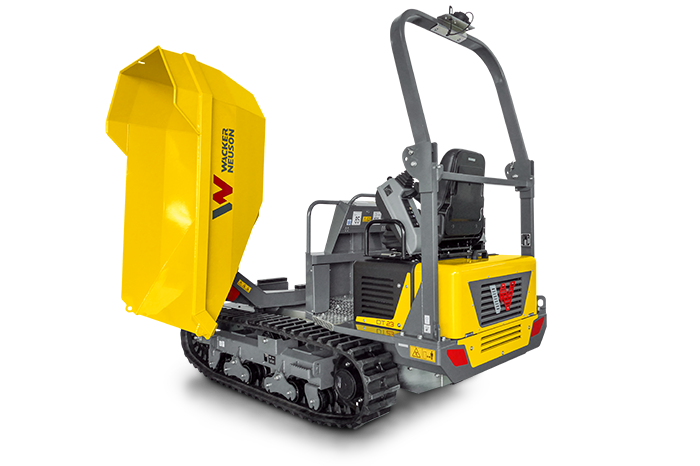

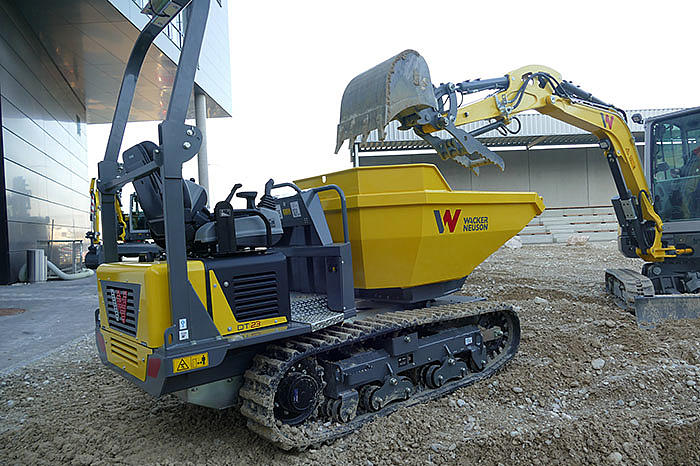

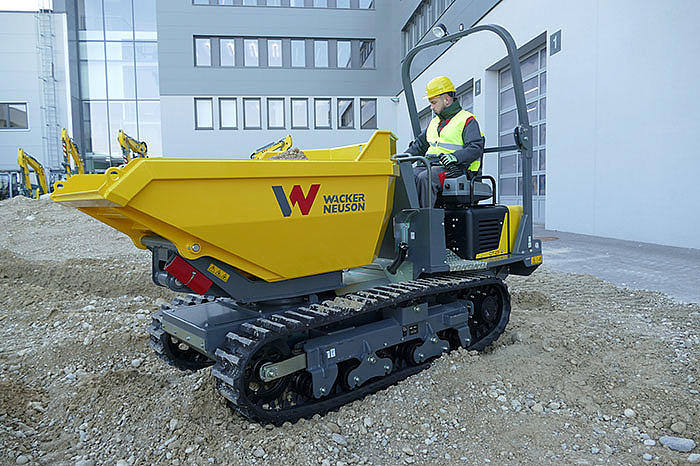

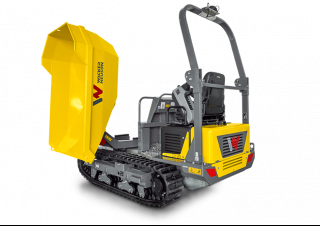

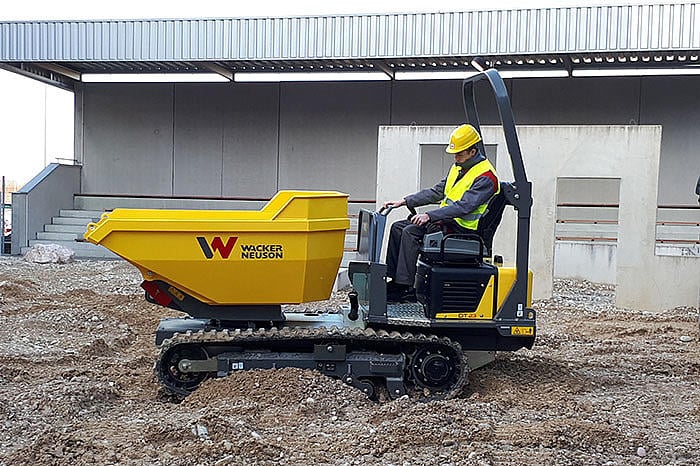

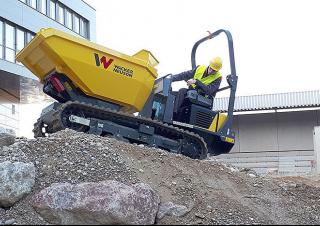

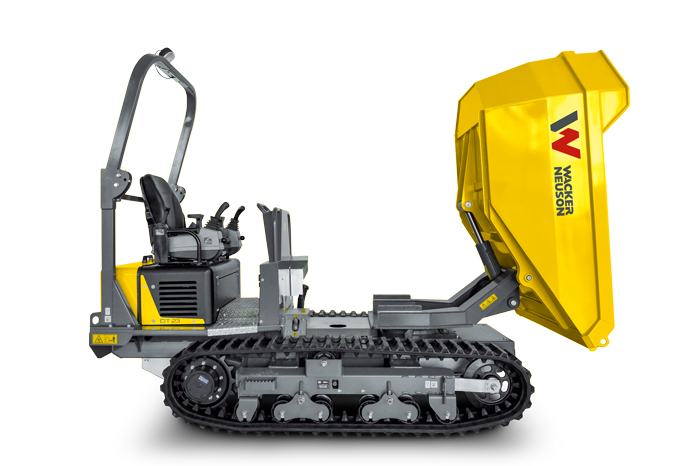

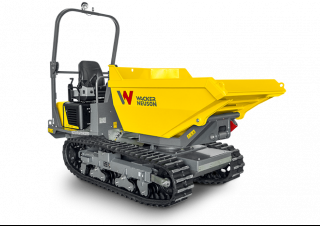

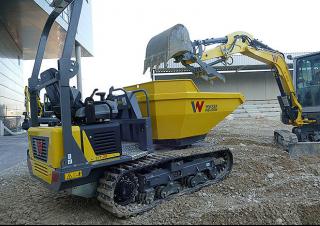

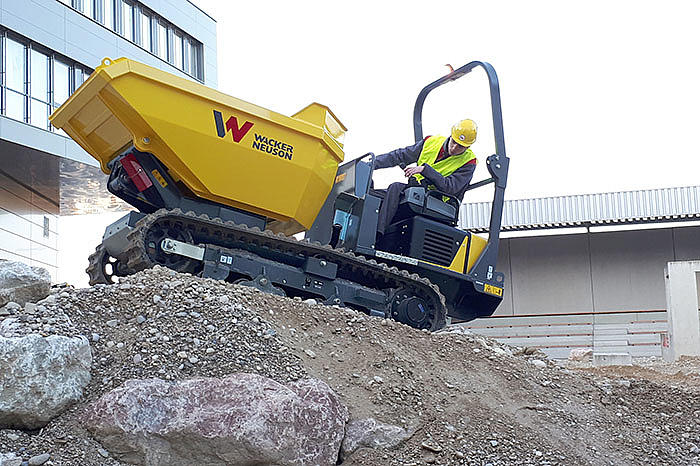

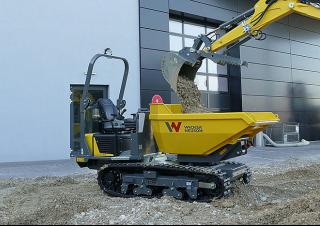

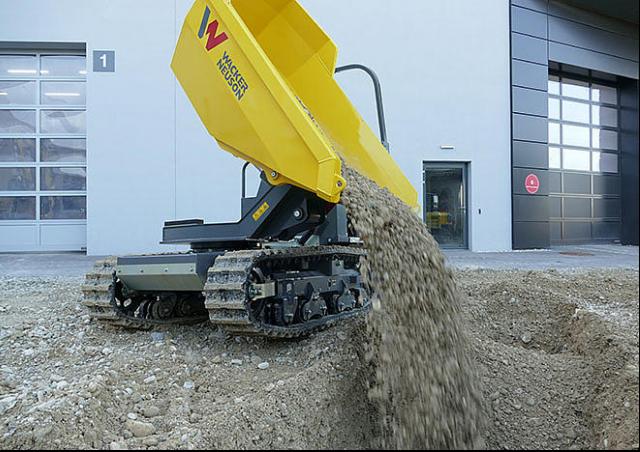

DT23 Wacker Neuson DT23 Specifications & Technical Data (2018—2026)
.jpg)
.png)
.png)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.png)
.png)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Wacker Neuson live at
Technical specs - DT23 Wacker Neuson
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.7 t
- Transport length
- 3.304 m
- Transport width
- 1.3 m
- Transport height
- 2.535 m
- Net load
- 2.3 t
- Dump capacity
- 1.1 m³
- Driver protection
- Ü
- Travel speed
- 7.5 km/h
- Track width
- 270 mm
- Loading height
- 1.393 m
- Model series
- DT
- Engine manuf.
- Kubota
- Engine type
- V1505
- Engine power
- 18.5 kW
- Displacement
- 1.498 l
- Revolutions at max torque
- 2300 rpm
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: soil pressure, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Track adjustment
-
No
- Bucket
-
No
- Heated dump body
-
No
- Electric starter
-
No
- Trough liftable
-
No
- Aircondition
-
No
Download datasheets (PDF)
