DT15 Wacker Neuson DT15 Specifications & Technical Data (2011—2019)

Weight: 1.06t – Transport length: 2.585m – Transport width: 1.06m – Transport height: 2.372m – Net load: 1.5t – Dump capacity: 0.8m³

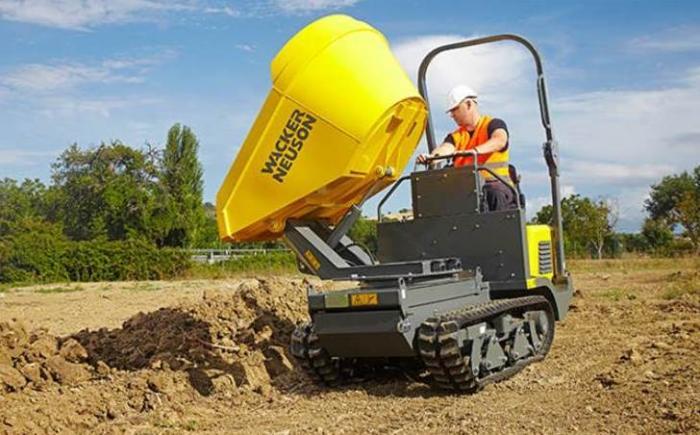

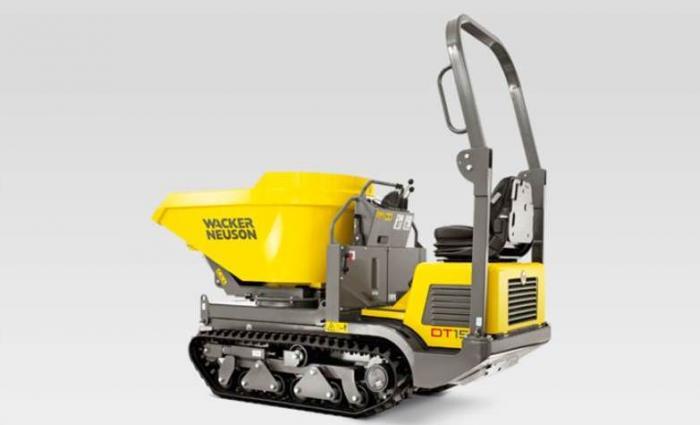

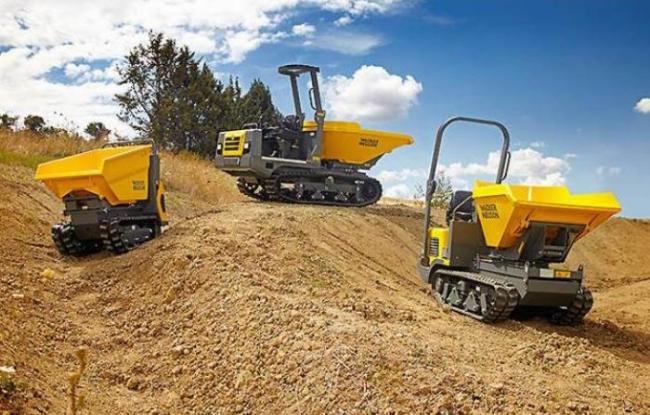

Tracked Dumpers Wacker Neuson DT15
Tracked Dumpers Wacker Neuson DT15
Tracked Dumpers Wacker Neuson DT15
Tracked Dumpers Wacker Neuson DT15
Tracked Dumpers Wacker Neuson DT15
Tracked Dumpers Wacker Neuson DT15

Visit Wacker Neuson live at

Technical specs - DT15 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.06 t
Transport length
2.585 m
Transport width
1.06 m
Transport height
2.372 m
Net load
1.5 t
Dump capacity
0.8 m³
Driver protection
Ü
Travel speed
7.5 km/h
Track width
230 mm
Soil pressure
0.22 kg/cm²
Loading height
0.485 m
Model series
DT
Engine manuf.
Kubota
Engine type
D902
Engine power
16 kW

More technical details, like: turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, undercarriage type, rops...

More technical details, like: turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, undercarriage type, rops, fops, engine manufacturer, engine model, emission rating, rated speed, engine output, torque rated speed, engine torque, fuel, drive, track rollers - each side, track shoe width, service type, width, overall length, track length on ground, ground clearance, skip lip height - untipped, skip lip height - tipped, payload - heaped, payload - struck, payload - water, skip payload, ground bearing pressure, travel speed - maximum, operating weight - unladen, gross weight - standard build are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment
No
Bucket
No
Heated dump body
Yes
Electric starter
No
Trough liftable
No
Aircondition
No

Download datasheets (PDF)

Wacker Neuson DT15 FAQ

When was the Wacker Neuson DT15 manufactured?

The Wacker Neuson DT15 was manufactured from 2011 to 2019.

How much does the Wacker Neuson DT15 weigh?

The Wacker Neuson DT15 weighs 1.06 tons.

What are the transport dimensions of the Wacker Neuson DT15?

The Wacker Neuson DT15 has a transport length of 2.59 meters, a transport width of 1.06 meters, and a transport height of 2.37 meters.

What is the travel speed of the Wacker Neuson DT15?

The Wacker Neuson DT15 has a travel speed of 7.5 km/h.

What are the undercarriage specifications of the Wacker Neuson DT15?

The Wacker Neuson DT15 has a track width of 230 mm and a soil pressure of 0.22 kg/cmu00b2.

What is the material handling capacity of the Wacker Neuson DT15 tracked dumper?

The Wacker Neuson DT15 tracked dumper has a net load capacity of 1.5 tons, a dump capacity of 0.8 cubic meters, and a loading height of 0.49 meters.

What operator safety feature does the Wacker Neuson DT15 have?

The Wacker Neuson DT15 is equipped with a roll-over bar for driver protection.

How much is a Wacker Neuson DT15 Tracked dumper (2011u20132019) worth?

The residual value of the Wacker Neuson DT15 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Wacker Neuson DT15 overview

Equipment

Maximum power: DT15

The track dumper DT 15 is the ideal transporter on all types of soil, such as gravel or sand, as well as boggy or hilly terrain. The one-piece engine hatch and optimal configuration of the service points make daily maintenance easy.The hydrostatic drive enables easy and comfortable operation.Folding ROPS roll bar for passageways with low-headroom.Low center of gravity for increased stability and guaranteed gradeability up to 62%.Auxiliary hydraulics as standard for additional attachments, such as concrete mixers, breakers etc.A variety of robust and stable hydraulic tipping skips and other attachments are available, for instance a front-tipping skip, a high-tipping skip, a 3-way side-tipping platform or a hydraulic high-volume concrete mixer.
