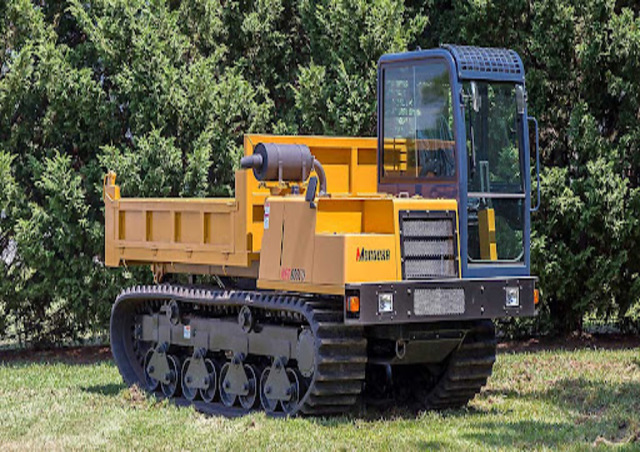

MST 800 VD Morooka MST 800 VD Specifications & Technical Data (2016—2020)

Weight: 6.5t – Transport length: 4.5m – Transport width: 2.425m – Transport height: 2.59m – Net load: 4.8t – Dump capacity: 1.77m³

Tracked Dumpers Morooka MST 800 VD

Technical specs - MST 800 VD Morooka

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.5 t
Transport length
4.5 m
Transport width
2.425 m
Transport height
2.59 m
Net load
4.8 t
Dump capacity
1.77 m³
Driver protection
Kb
Travel speed
9 km/h
Track width
600 mm
Soil pressure
0.29 kg/cm²
Loading height
1.51 m
Turning radius outside
2.4 m
Model series
MST
Engine manuf.
Caterpillar
Engine type
C4.4
Engine power
92.8 kW
Revolutions at max torque
2200 rpm
Max. torque
550/1400 Nm
Emission level
Tier 3

More technical details, like: dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment
No
Bucket
No
Heated dump body
No
Electric starter
No
Trough liftable
No
Aircondition
No

Download datasheets (PDF)

Morooka MST 800 VD FAQ

When was the Morooka MST 800 VD manufactured?

The Morooka MST 800 VD was manufactured from 2016 to 2020.

How much does the Morooka MST 800 VD weigh?

The Morooka MST 800 VD weighs 6.5 tons.

What are the transport dimensions of the Morooka MST 800 VD?

The Morooka MST 800 VD has a transport length of 4.5 meters, a transport width of 2.43 meters, and a transport height of 2.59 meters.

What is the travel speed of the Morooka MST 800 VD?

The Morooka MST 800 VD has a travel speed of 9 km/h.

What are the undercarriage specifications of the Morooka MST 800 VD?

The Morooka MST 800 VD has a track width of 600 mm and a soil pressure of 0.29 kg/cmu00b2.

What is the turning radius of the Morooka MST 800 VD tracked dumper?

The Morooka MST 800 VD has an outside turning radius of 2.4 meters.

What is the material handling capacity of the Morooka MST 800 VD?

The Morooka MST 800 VD has a net load capacity of 4.8 tons, a dump capacity of 1.77 cubic meters, and a loading height of 1.51 meters.

What operator safety features does the Morooka MST 800 VD have?

The Morooka MST 800 VD has a driver protection cabin.

How much is a Morooka MST 800 VD Tracked dumper (2016u20132020) worth?

The residual value of the Morooka MST 800 VD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
