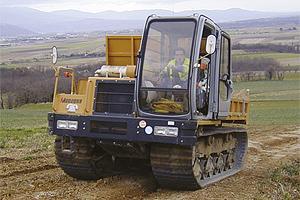

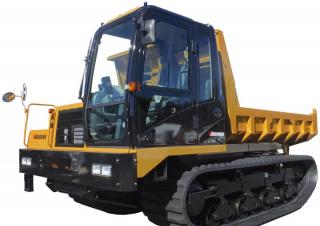

MST 3000 VD Morooka MST 3000 VD Specifications & Technical Data (2007—2015)

Model rating: 9,75 / 10

Weight: 17.5t – Transport length: 6.16m – Transport width: 3.1m – Transport height: 3.14m – Net load: 15t – Dump capacity: 5.55m³

MST 3000 VD

Years of manufacture: 2007—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - MST 3000 VD Morooka

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 17.5 t

Transport length: 6.16 m

Transport width: 3.1 m

Transport height: 3.14 m

Net load: 15 t

Dump capacity: 5.55 m³

Driver protection: Kb

Travel speed: 13 km/h

Track width: 900 mm

Soil pressure: 0.54 kg/cm²

Loading height: 1.48 m

Model series: MST

Engine manuf.: Caterpillar

Engine type: C9

Engine power: 242 kW

Displacement: 8.8 l

Revolutions at max torque: 2200 rpm

More technical details, like: turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, model type, driveline, rops, engine manufacturer, engine model, engine output, fuel, drive, track rollers - each side, track shoe width, height over rops, width, overall length, ground clearance, skip payload, ground bearing pressure, travel speed - maximum, operating weight - unladen are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Track adjustment: No
Bucket: No
Heated dump body: No
Electric starter: Yes
Trough liftable: Yes
Aircondition: Yes

Download datasheets (PDF)

MST 3000 VD Morooka Specification for Europe (DE, EN, FR)

Morooka MST 3000 VD FAQ

When was the Morooka MST 3000 VD manufactured?

The Morooka MST 3000 VD was manufactured from 2007 to 2015.

How much does the Morooka MST 3000 VD weigh?

The Morooka MST 3000 VD weighs 17.5 tons.

What are the transport dimensions of the Morooka MST 3000 VD?

The Morooka MST 3000 VD has a transport length of 6.16 meters, a transport width of 3.1 meters, and a transport height of 3.14 meters.

What is the travel speed of the Morooka MST 3000 VD?

The Morooka MST 3000 VD has a travel speed of 13 km/h.

What are the undercarriage specifications of the Morooka MST 3000 VD?

The Morooka MST 3000 VD has a track width of 900 mm and a soil pressure of 0.54 kg/cmu00b2.

What is the material handling capacity of the Morooka MST 3000 VD?

The Morooka MST 3000 VD has a net load capacity of 15 tons, a dump capacity of 5.55 cubic meters, and a loading height of 1.48 meters.

What operator safety and support features does the Morooka MST 3000 VD have?

The Morooka MST 3000 VD provides operator safety through a protective cabin for the driver.

How much is a Morooka MST 3000 VD Tracked dumper (2007u20132015) worth?

The residual value of the Morooka MST 3000 VD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
